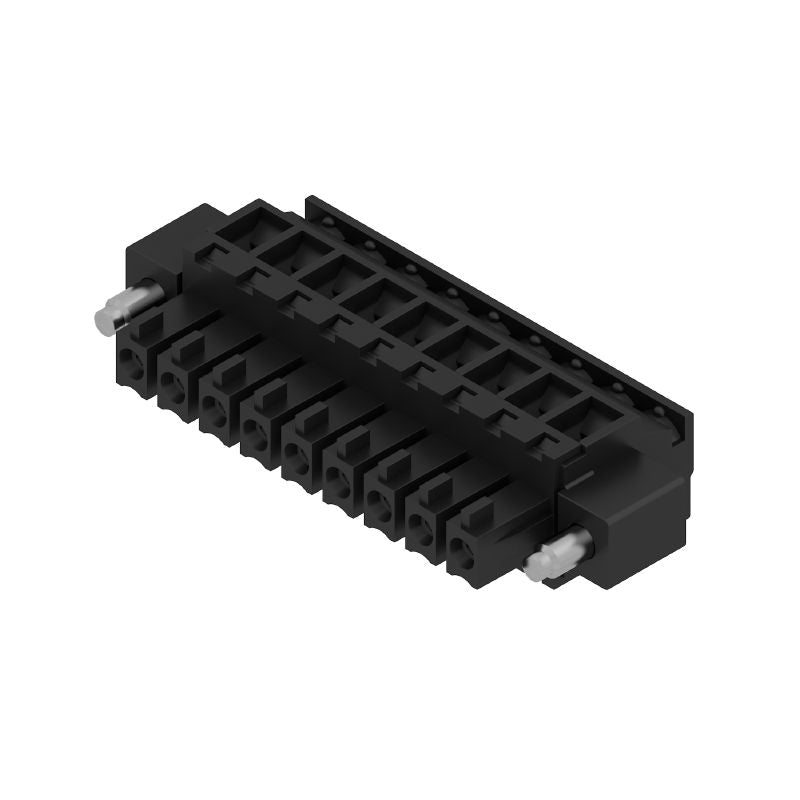

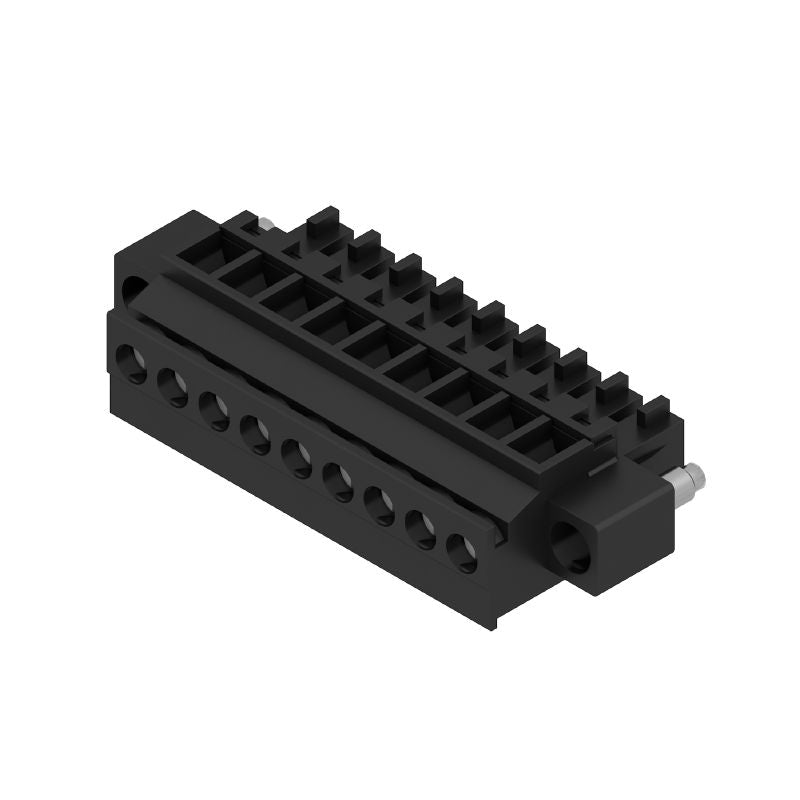

1899540000 - 3.81mm PCB Female Connector, 9 Poles, 90-Degree Angle (Pack of 50)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the BCZ 381/09/90F SN BK BX, a specialized female plug-in connector perfect for PCB applications With a 381 mm pitch and 9 poles set at a 90-degree angle, this component ensures a secure and efficient connection It incorporates a clamping yoke connection suitable for conductors up to 15 mm² Conveniently packaged in a box, this connector adheres to multiple industry standards, guaranteeing consistent performance across various uses.

Features and Benefits:

•Compliant with RoHS and other standards.

•Clamping yoke connection for secure wire attachment.

•Touch-safe design as per DIN VDE regulations.

•Can be coded for non-interchangeability.

•Passes various durability tests such as clampable cross-section and pull-out tests.

Specifications:
