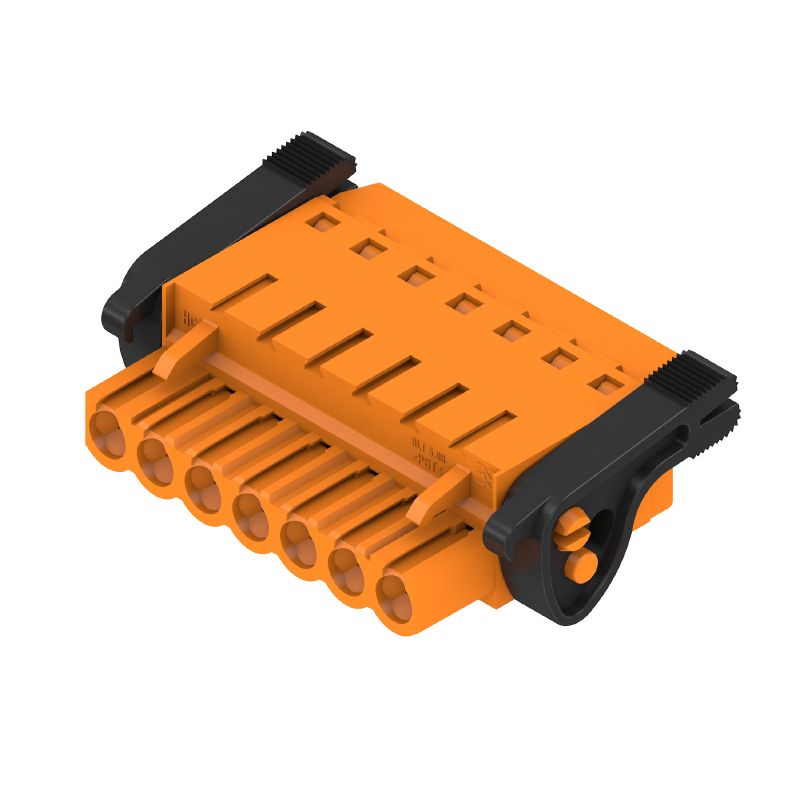

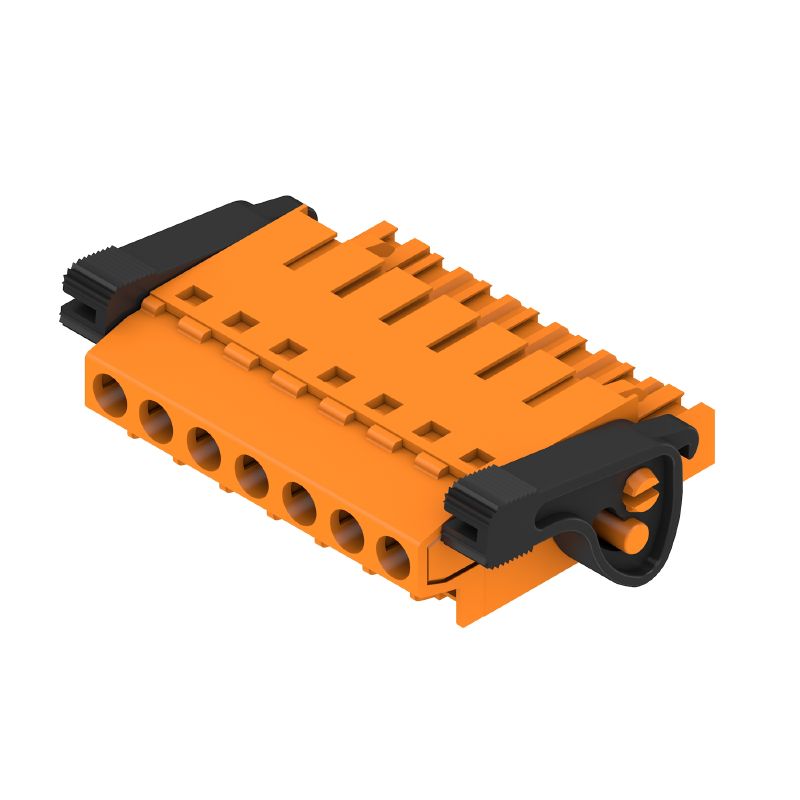

1890270000 - 7-Pole 5.08mm Female Plug PCB Connector, 180° Angle (Pack of 36)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing our female plug PCB connector, expertly crafted with a 508 mm pitch and featuring 7 poles, this connector is engineered for top connection at a precise 180° angle It accommodates a maximum clamping range of 25 mm², ensuring reliable performance for your electrical needs This product meets UL standards with the file number E60693 and adheres to RoHS regulations for safety and environmental compliance.

Each connector is securely packaged in a specially designed box for optimal handling and quality preservation.

Features and Benefits:

•Field connection type.

•Touch-safe protection according to DIN VDE standards.

•Compatible with conductor cross-sections from 0.2 mm² to 2.5 mm².

•Can be coded for secure connections.

•Available in a variety of colors including orange.

Specifications:
