1798630000 - 3.81mm 12-Pole PCB Connector with 90-Degree Orientation (Pack of 50)

1798630000 - 3.81mm 12-Pole PCB Connector with 90-Degree Orientation (Pack of 50)

SKU: SKU: 1798630000   Download PDF

Select a Variant:
  • 1798630000 - 3.81mm 12-Pole PCB Connector with 90-Degree Orientation (Pack of 50)
Qty:
Regular price Now $433.58   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $433.58 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

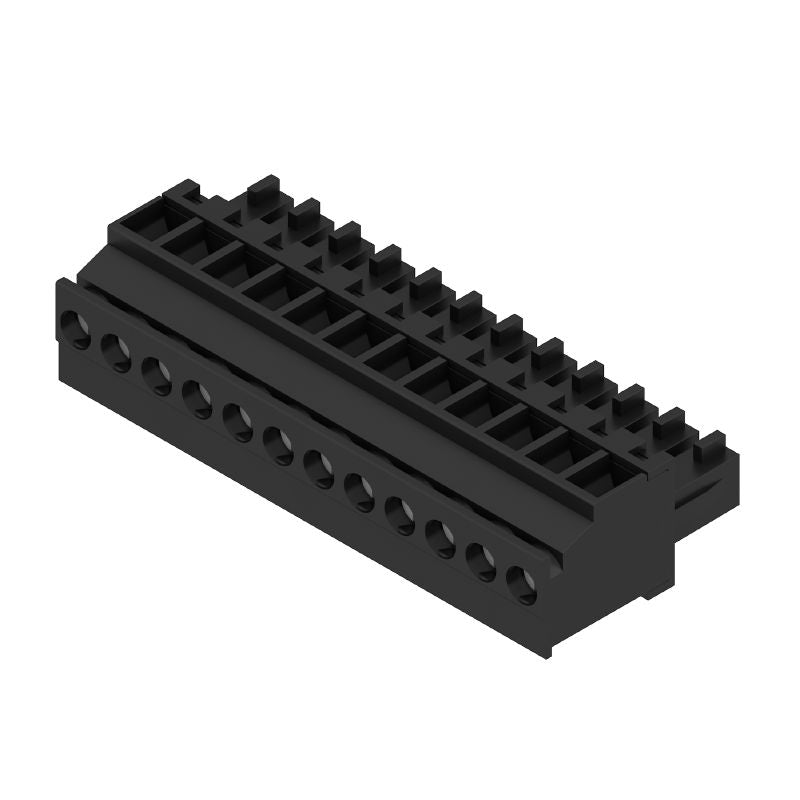

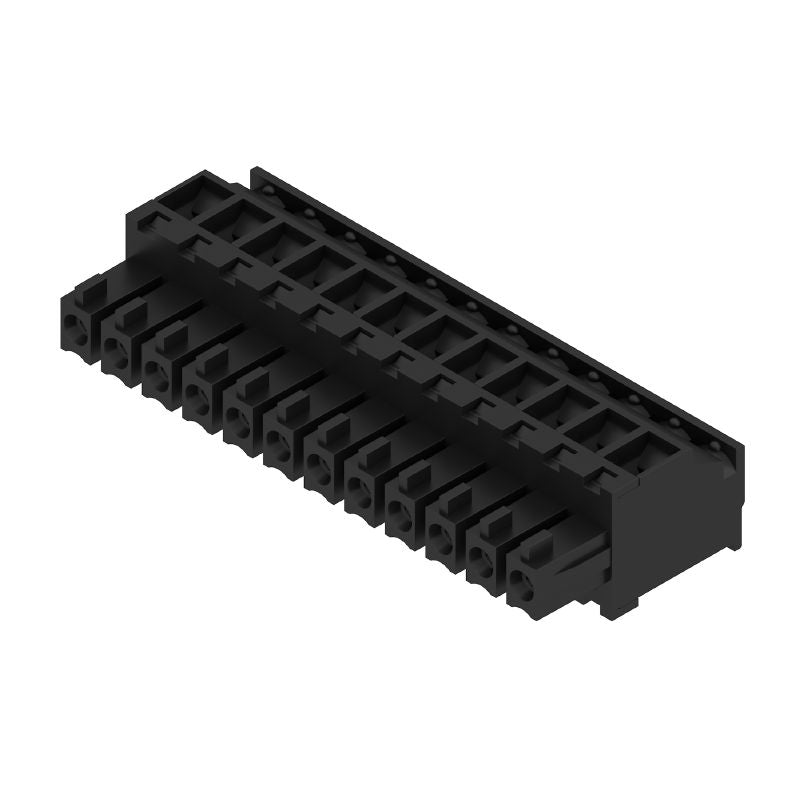

Introducing the BCZ 381/12/90 SN BK BX, a reliable female plug-in connector engineered specifically for printed circuit boards With a compact 381 mm pitch and 12 poles, this connector's 90-degree orientation allows for efficient connectivity It features a clamping yoke connection that comfortably supports conductors with a maximum cross-section of 15 mm² Packaged neatly in a box, this connector adheres to essential compliance standards, including RoHS and UL, ensuring safety and reliability for your electronic projects.

Features and Benefits:

    •Compliant with RoHS and UL standards.

    •Clamping yoke connection for secure wiring.

    •Touch-safe protection according to standards.

    •Can be coded for specific applications.

    •Passes durability and non-interchangeability tests.

Specifications:

 Pitch 3.81 mm
 Number of poles 12
 Clamping range 1.5 mm²

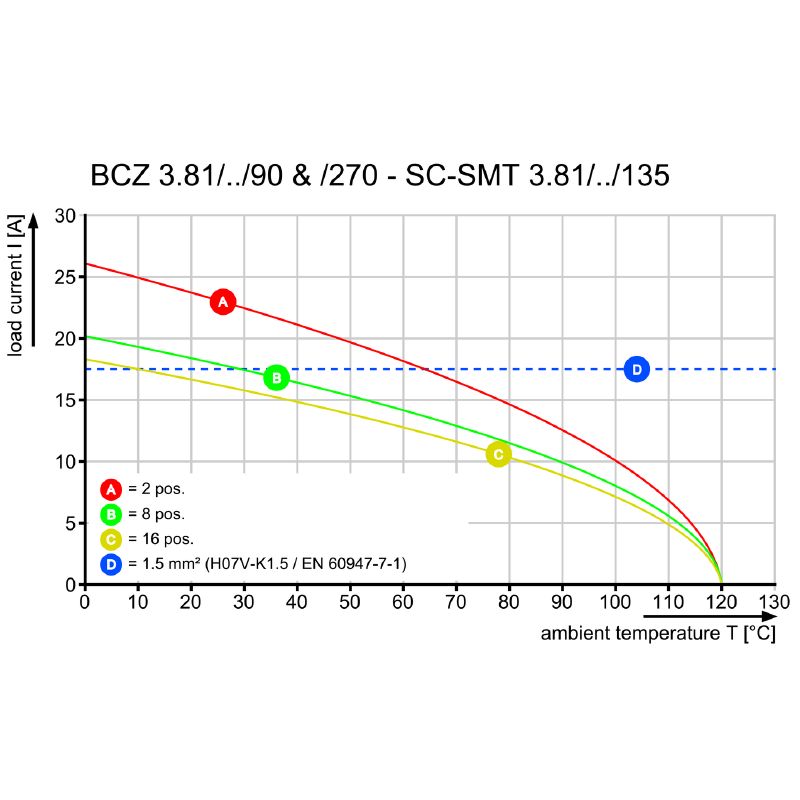

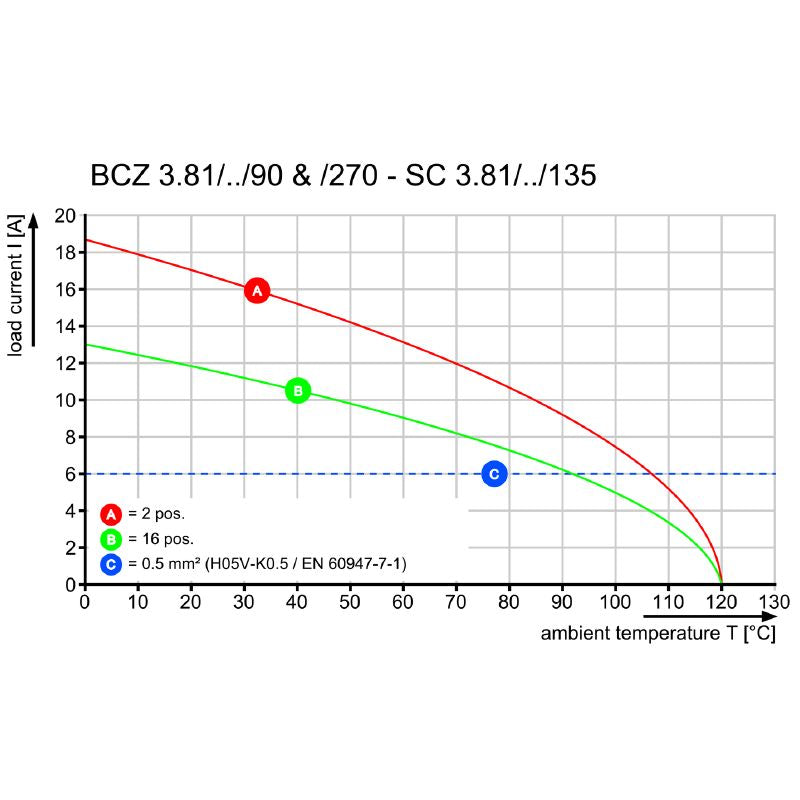

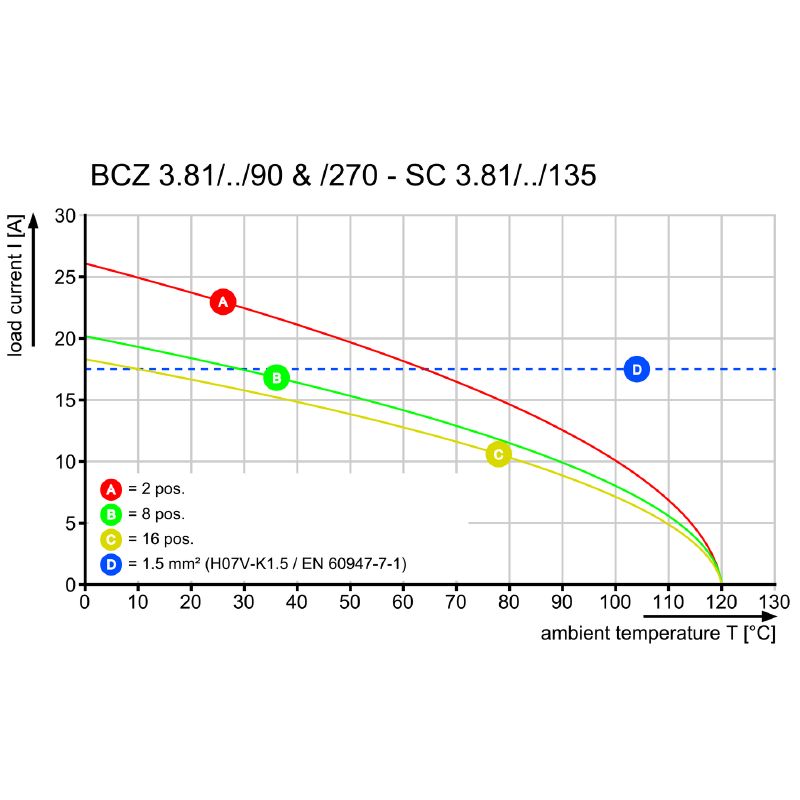

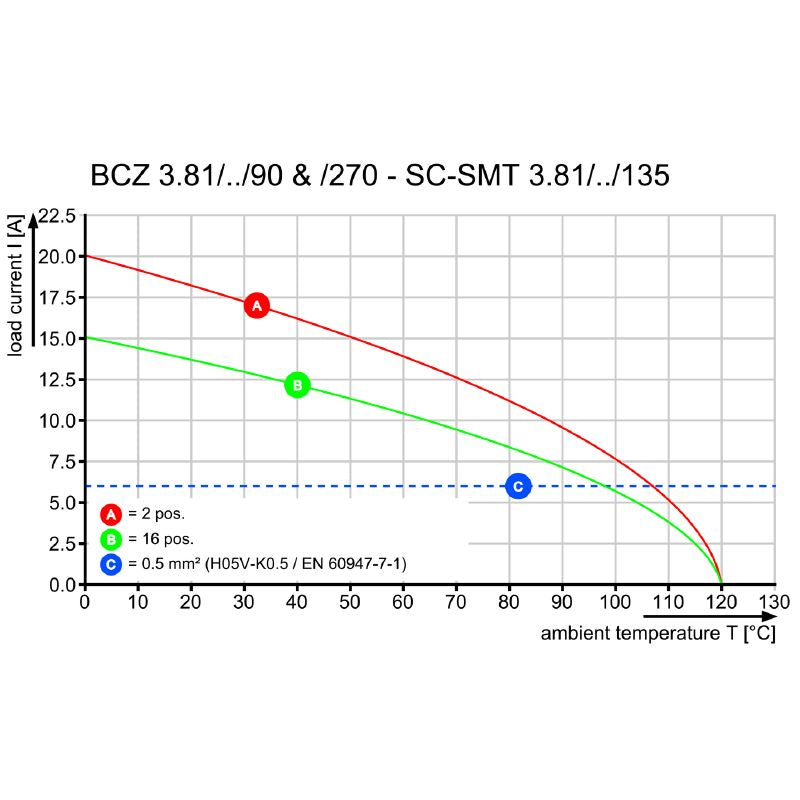

 Rated voltage IEC 320 V / 17.5 A
 Rated current UL 300 V / 10 A

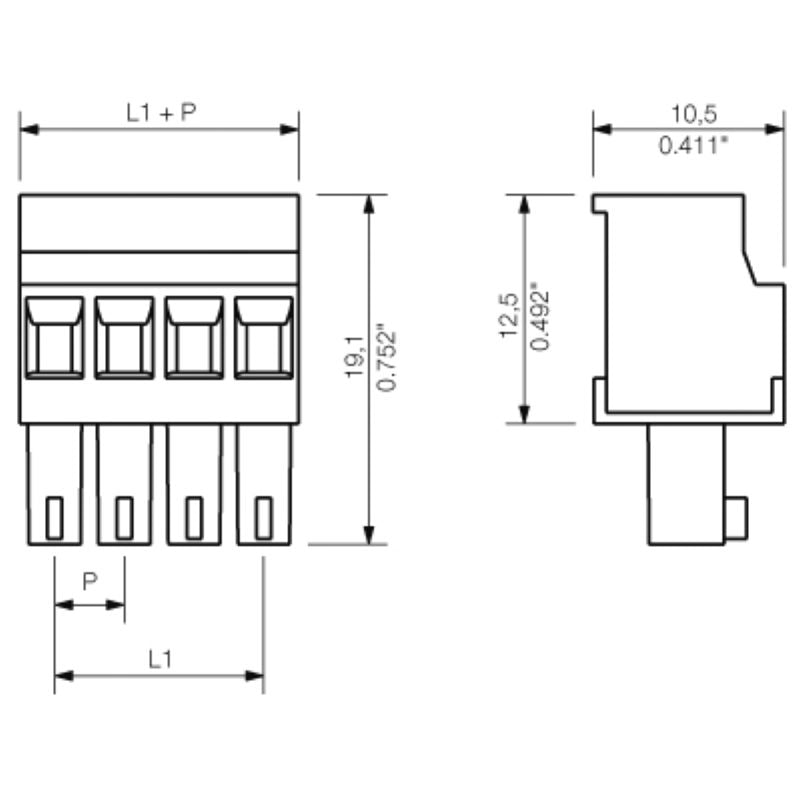

 Dimensions Width: 45.72 mm, Height: 10.5 mm, Depth: 19.1 mm
 Storage temperature -40 °C to 70 °C
 Operating temperature -50 °C to 120 °C
 Protection degree IP20
 Volume resistance ≤5 mΩ
 Material PA 66 GF 30
