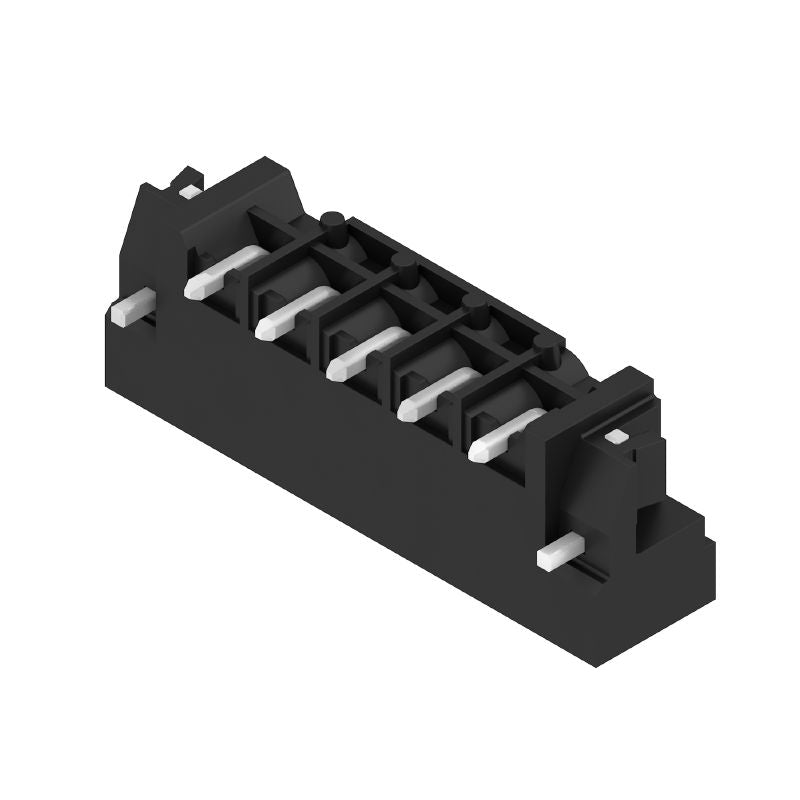

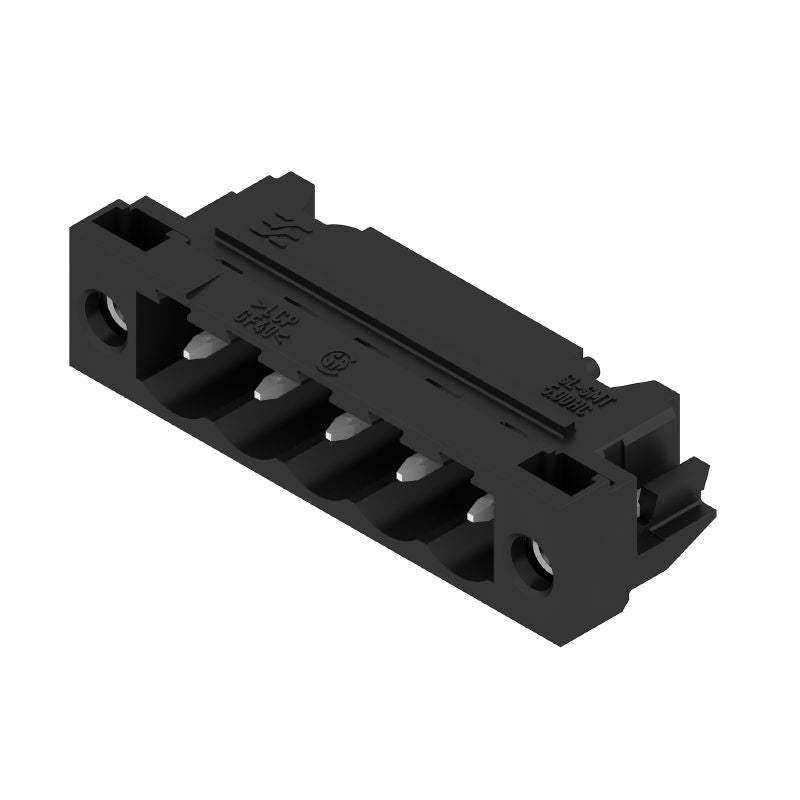

1797780000 - 5-Pole 5mm PCB Male Header Connector with 90° Angle (Pack of 350)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing a versatile PCB plug-in connector, expertly crafted with a male header that includes solder flanges for reliable THT/THR soldering This connector offers a 5 mm pitch and supports 5 poles positioned at a convenient 90° angle Each solder pin measures 15 mm in length and features a durable tinned finish, all presented in a classic black color With overall dimensions of 348 mm in width, 10 mm in height, and a depth of 12 mm, this component is designed for optimal performance in various electronic applications.

Each pole is equipped with its own solder pin, making it a practical choice for your connectivity needs.

Features and Benefits:

•THT/THR solder connection for robust mounting.

•Can be coded for use in various applications.

•Touch-safe protection as per DIN VDE standards.

•Compliant with RoHS and without exemption.

•Developed according to recognized international standards.
