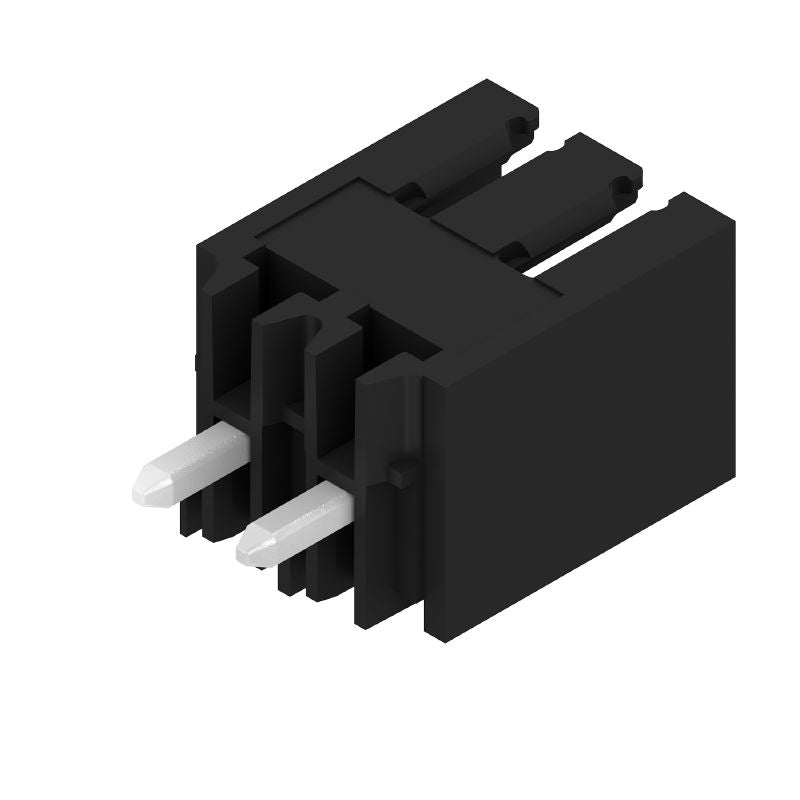

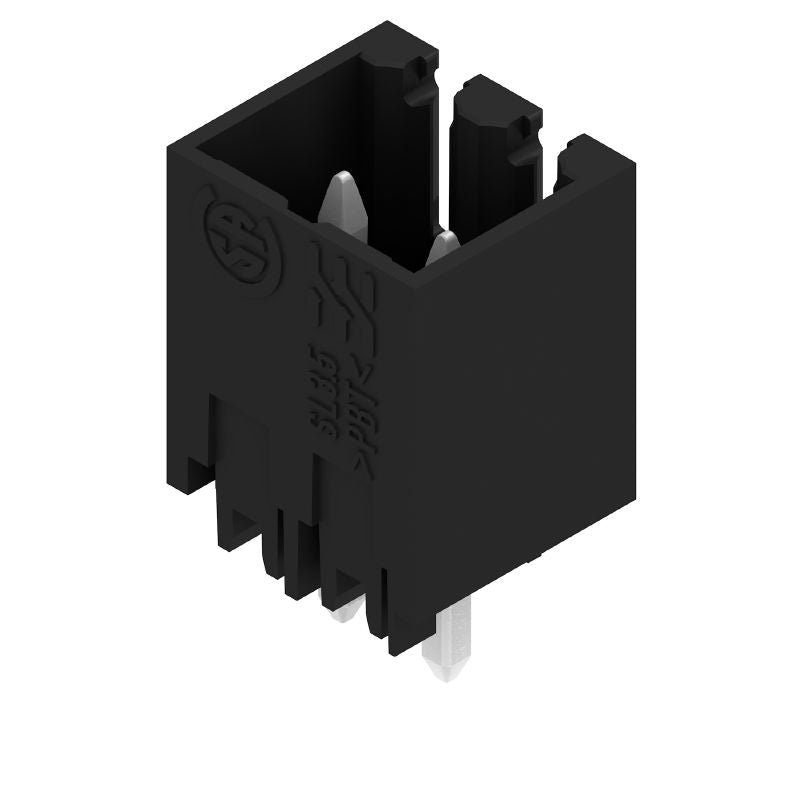

1794100000 - 3.50mm Male PCB Connector, 2-Pole, 180° Angle, Black (Pack of 100)

1794100000 - 3.50mm Male PCB Connector, 2-Pole, 180° Angle, Black (Pack of 100)

SKU: SKU: 1794100000   Download PDF

Select a Variant:
  • 1794100000 - 3.50mm Male PCB Connector, 2-Pole, 180° Angle, Black (Pack of 100)
Qty:
Regular price Now $49.00   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $49.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Introducing a reliable PCB plug-in connector, designed with a male header that features a closed side for enhanced stability This connector supports a through-hole soldering (THT) connection with a pitch of 350 mm and accommodates 2 poles arranged at a 180° angle It includes solder pins measuring 32 mm in length and comes in a classic black color Each box contains 100 connectors, making it ideal for bulk projects or replacements.

Features and Benefits:

    •RoHS compliant.

    •Touch-safe protection according to DIN VDE standards.

    •Can be coded for connection.

    •Volume resistance is ≤5 mΩ.

    •10 N maximum plugging and pulling force per pole.

Specifications:

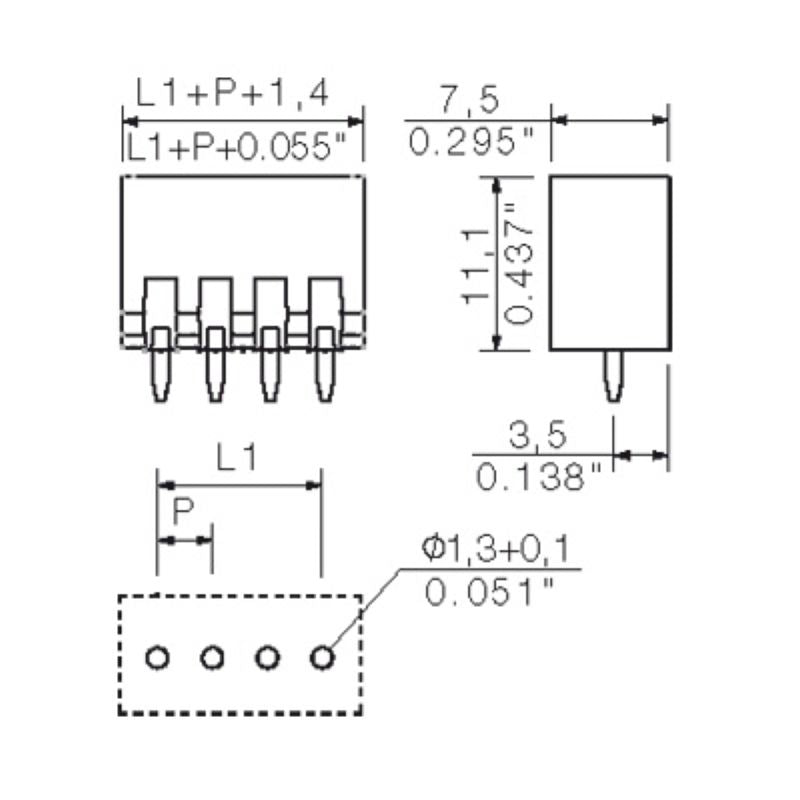

 Dimensions {'Depth': '7.5 mm', 'Height': '14.3 mm', 'Width': '8.4 mm'}
 Rated current {'IEC': '17 A', 'UL': '10 A'}
 Rated voltage {'IEC derating': '320 V', 'UL': '300 V'}
 Solder pin dimensions {'Diameter': '1.2 mm', 'Length': '3.2 mm'}
 Operating temperature {'Min': '-50 °C', 'Max': '100 °C'}
 Storage temperature {'Min': '-40 °C', 'Max': '70 °C'}
 Material {'Insulating material': 'PBT', 'Contact material': 'Cu-alloy'}
