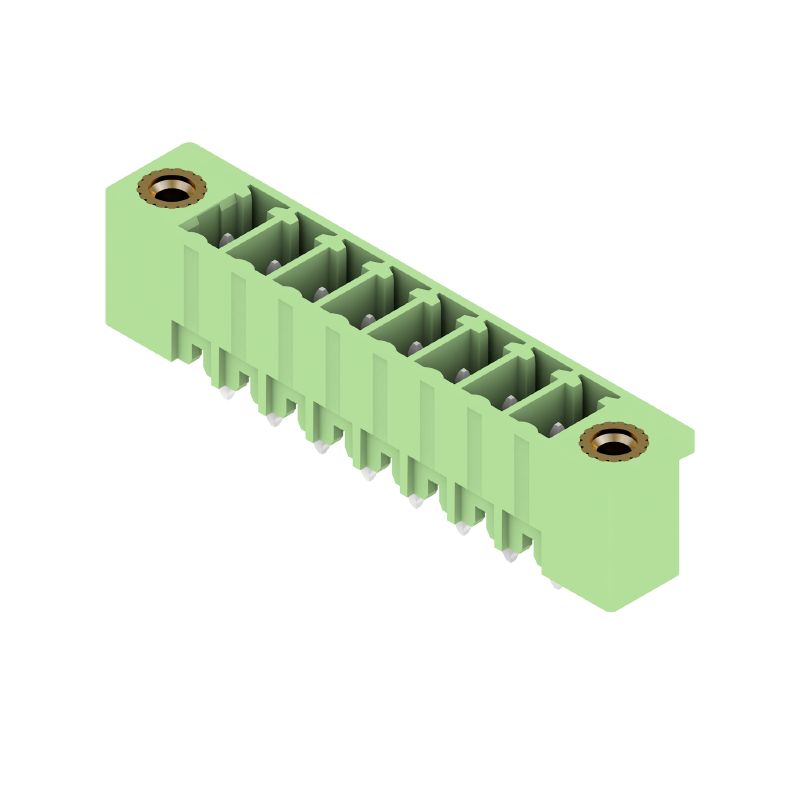

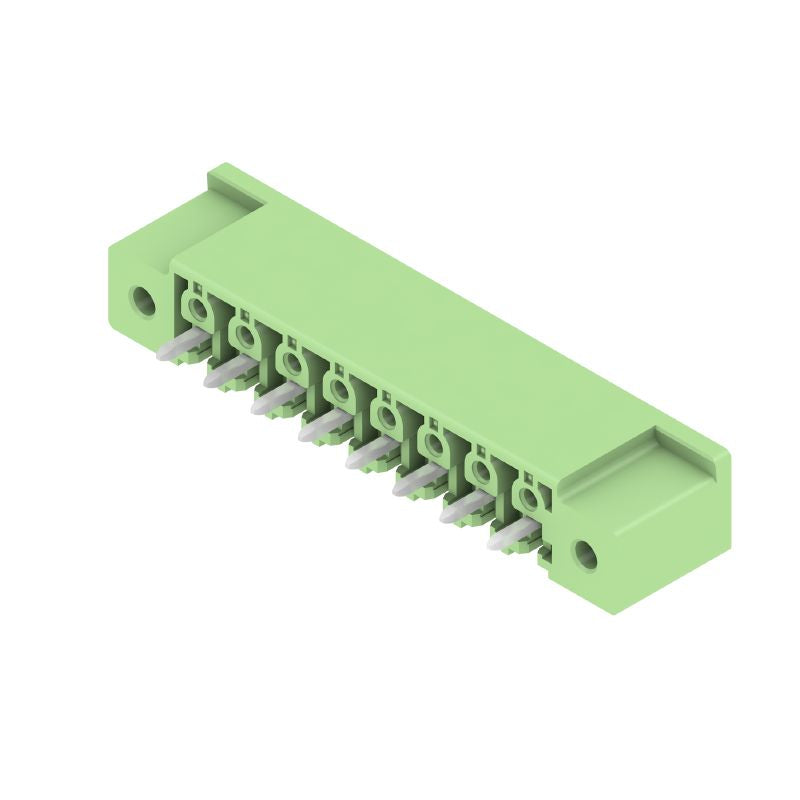

1793840000 - 8-Pole 3.81mm PCB Plug Connector with 180° Elbow (Pack of 42)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the SC 381/08/180F, a male header PCB connector built for Through-Hole Technology (THT) soldering applications This connector boasts a 381 mm pitch and comes with 8 poles arranged with a 180° angled elbow for efficient connectivity With a solder pin length of 32 mm featuring tinned surfaces, it is both functional and reliable, all presented in a pale green color Each unit is carefully packaged in a box for protection and convenience.

This product also adheres to RoHS standards and has received various certifications, including the UL certificate E60693, ensuring quality and safety in its applications.

Features and Benefits:

•Pale green color.

•THT solder connection for board mounting.

•Finger-safe unplugged and back-of-hand-safe plugged touch protection.

•Can accommodate a maximum pulling force of 5N per pole.

•Compatible with standard mounting screws.

Specifications:
