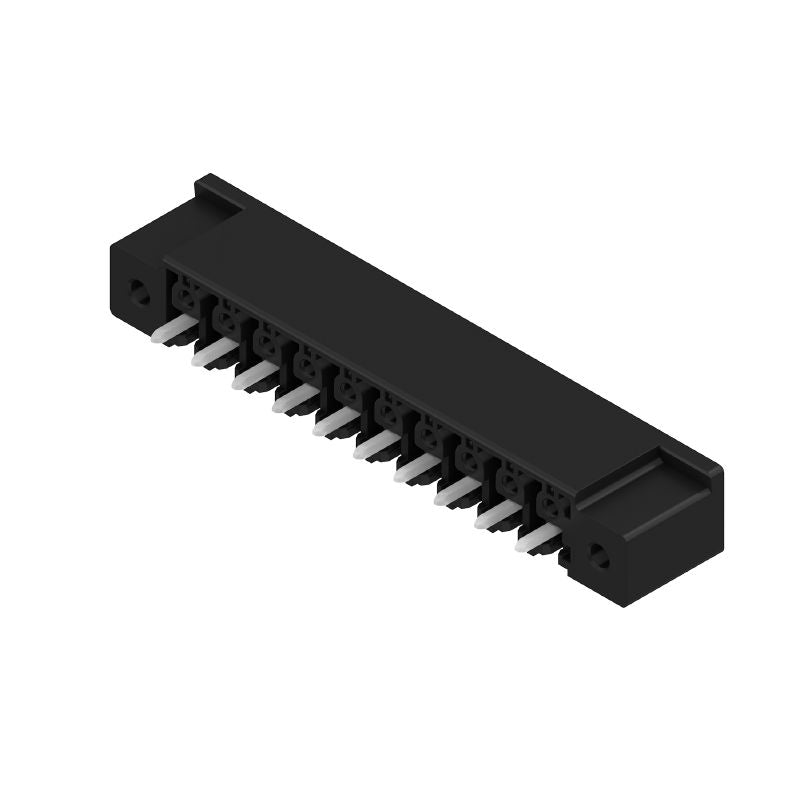

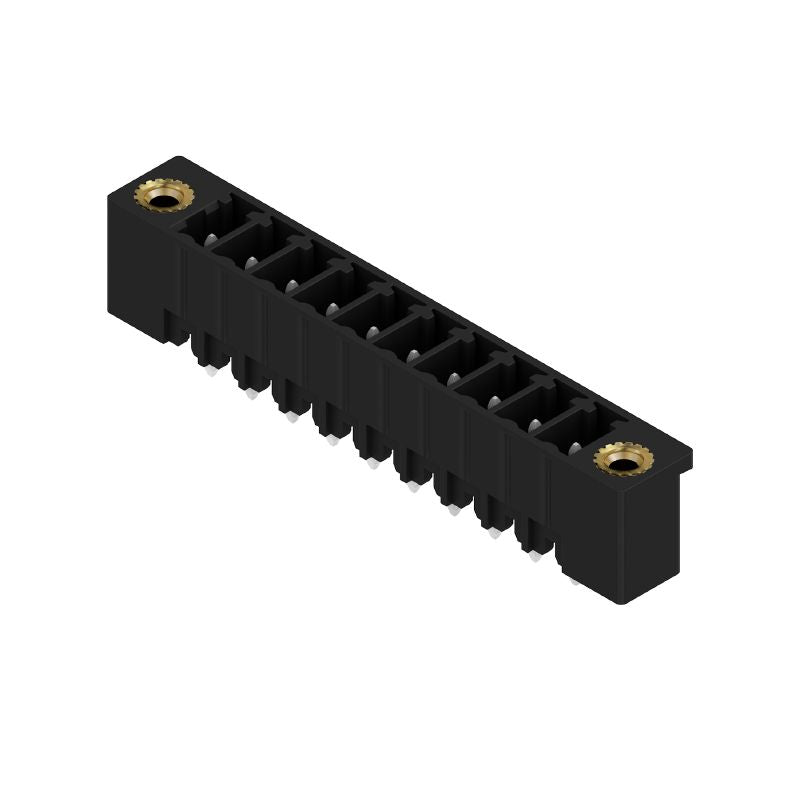

1793760000 - 3.81mm PCB Male Header Connector with 10 Poles, 180° Angle (Pack of 36)

1793760000 - 3.81mm PCB Male Header Connector with 10 Poles, 180° Angle (Pack of 36)

SKU: SKU: 1793760000   Download PDF

Select a Variant:
  • 1793760000 - 3.81mm PCB Male Header Connector with 10 Poles, 180° Angle (Pack of 36)
Qty:
Regular price Now $109.43   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $109.43 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Introducing this male header PCB plug-in connector, expertly crafted for flange mounting applications Engineered with a through-hole solder connection and a pin pitch of 381 mm, this connector offers reliable performance Featuring 10 poles arranged at a 180° angle and equipped with tinned solder pins that are 32 mm long, it’s an essential component for various electronic projects It comes conveniently packaged in a protective box for easy storage and handling.

Features and Benefits:

    •Compliant with ROHS standards.

    •Touch-safe protection according to DIN VDE standards.

    •Can be coded for specific applications.

    •Configured for easy PCB mounting.

    •Used for board connections.

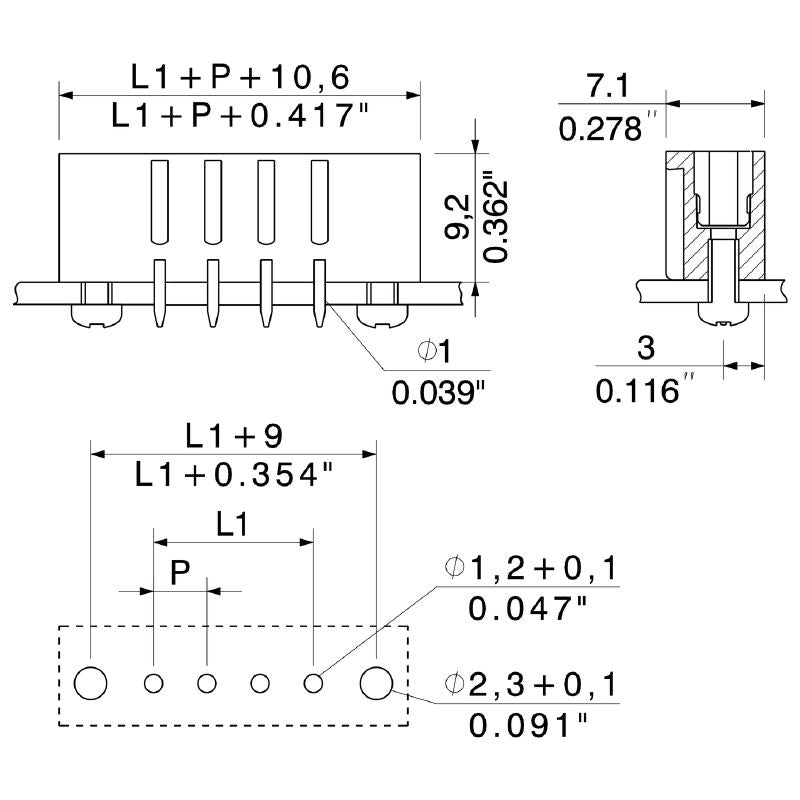

Specifications:

 Approvals ROHS Compliant
 Pitch 3.81 mm
 Mounting Type THT solder connection
 Number of poles 10
 Solder pin length 3.2 mm
 Operating temperature range -50 °C to 120 °C
 Storage temperature range -40 °C to 70 °C
 Rated voltage 320 V
 Rated current 17.5 A at 20°C
 Touch-safe protection finger-safe unplugged/back-of-hand-safe plugged
 Volume resistance ≤5 mΩ
 Contact material Cu-alloy
 Insulating material PA GF
 Net weight 3.54 g
