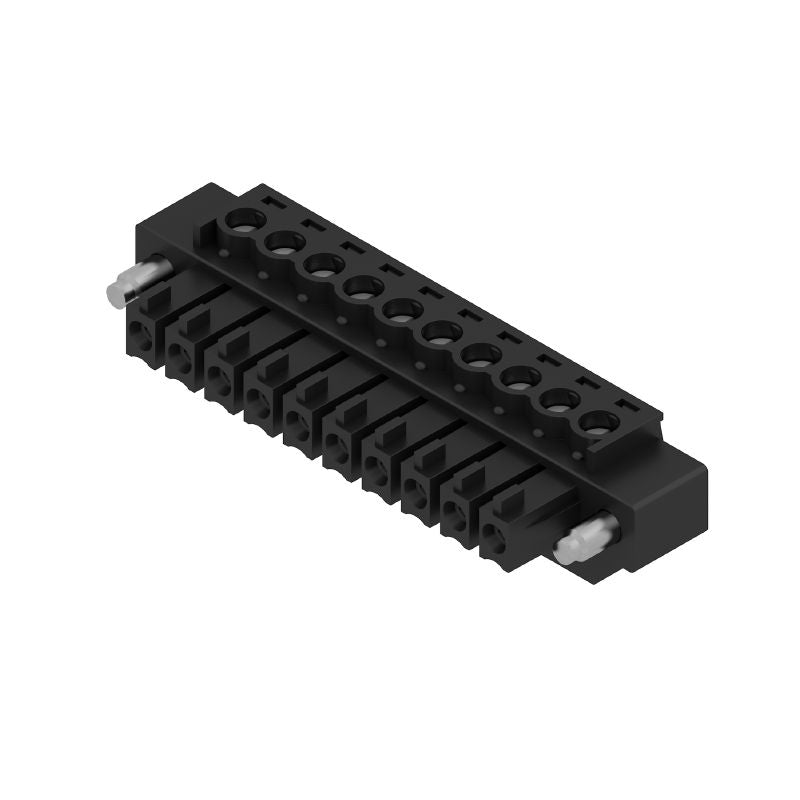

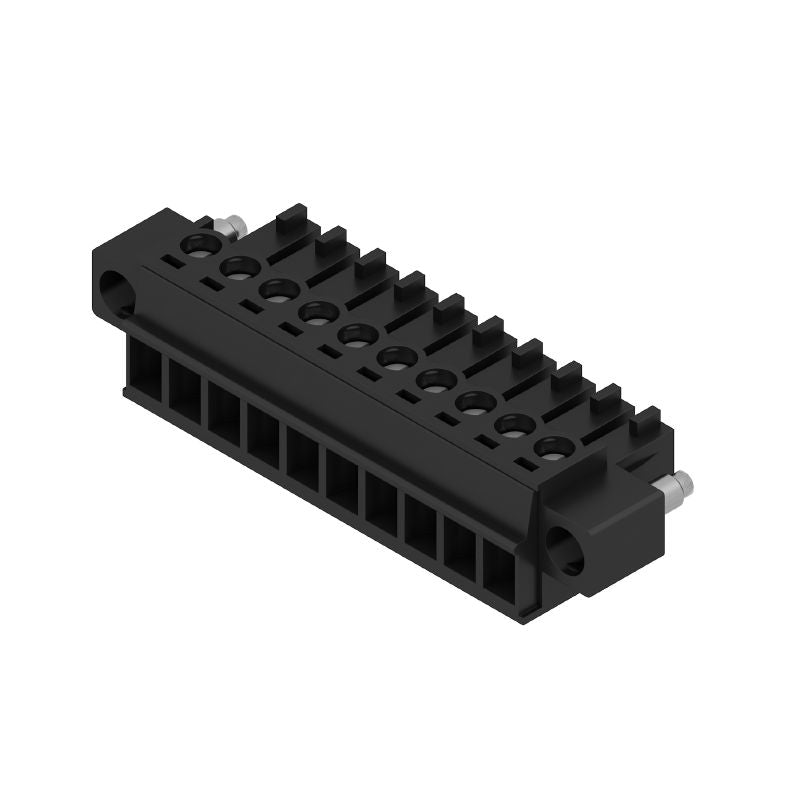

1793010000 - 3.81mm 10-Pole PCB Female Connector, 180° Design (Pack of 50)

1793010000 - 3.81mm 10-Pole PCB Female Connector, 180° Design (Pack of 50)

SKU: SKU: 1793010000   Download PDF

Select a Variant:
  • 1793010000 - 3.81mm 10-Pole PCB Female Connector, 180° Design (Pack of 50)
Qty:
Regular price Now $366.31   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $366.31 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

This plug-in connector is specifically engineered for printed circuit boards, featuring a 180° female plug configuration with 10 poles and a pitch of 381 mm It utilizes a clamping yoke connection method and accommodates wire cross-sections ranging from 02 mm² to 15 mm² The product comes neatly packaged in a box for easy storage and transport.

Features and Benefits:

    •RoHS compliant.

    •Suitable for field connection.

    •Touch-safe protection according to DIN standards.

    •Can be coded for specific applications.

Specifications:

 Rated voltage (IEC) 320 V
 Rated current (IEC) 17.5 A
 Clamping range 1.5 mm² maximum
 Pitch 3.81 mm
 Dimensions (mm) {'Depth': '16.1', 'Height': '11.1', 'Width': '48.52'}
 Operating temperature range -50 °C to 120 °C
 Storage temperature range -40 °C to 70 °C
 Insulating material PA 66 GF 30
 Touch-safe protection IP20 plugged / IP10 unplugged
