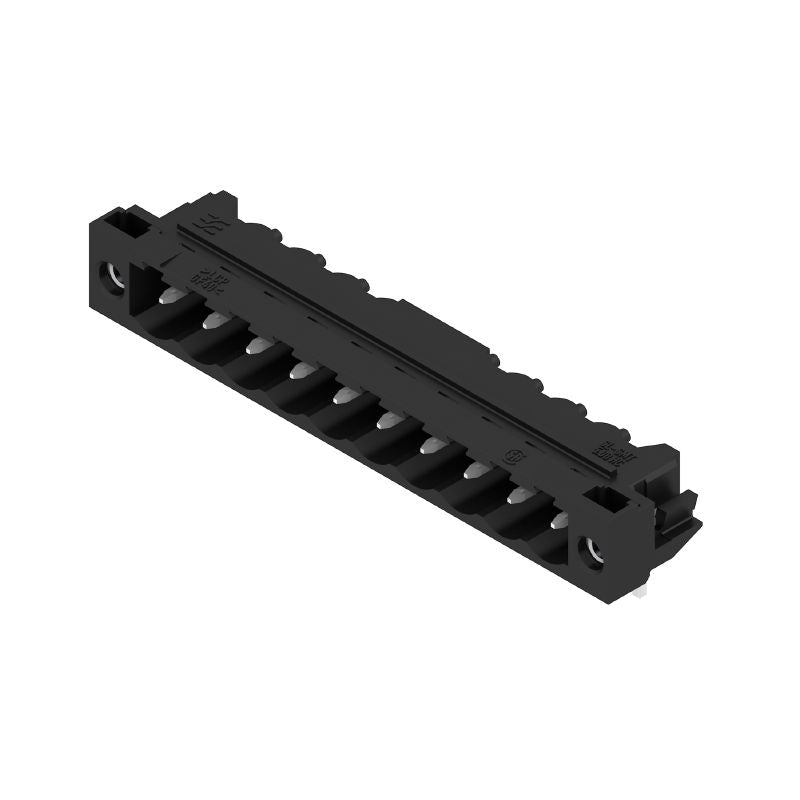

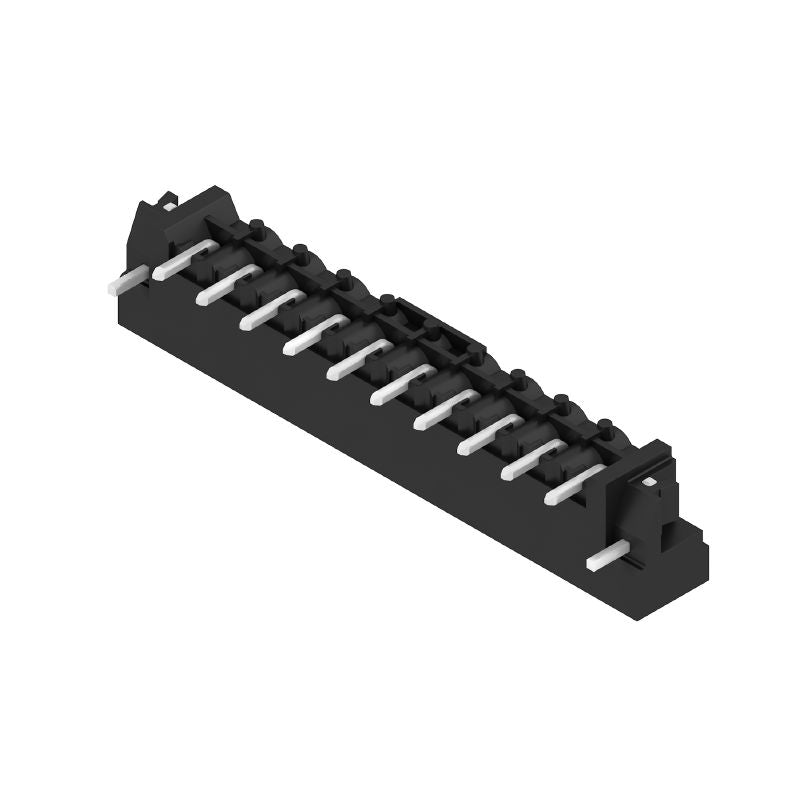

1780490000 - 5.08mm 10-Pole PCB Male Header Connector, 90° Angle, Black (Pack of 30)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing a reliable PCB plug-in connector, featuring a male header equipped with a solder flange, tailored for both THT and THR soldering applications This connector boasts a 508 mm pitch and includes 10 poles arranged at a 90° angle It comes with solder pin lengths of 32 mm and is packaged in a protective black box Meeting ROHS compliance standards, this product is also UL certified (certificate number E60693), ensuring quality and safety for your electronic projects.

Features and Benefits:

•Meets IEC standards of 400 V and 27.5 A, and UL standards of 300 V and 18.5 A.

•Touch-safe protection standards according to DIN VDE 57 106 and DIN VDE 0470.

•Can be coded for easy identification.

•Has maximum plugging force and pulling force per pole listed as 9 N and 7 N respectively.

•Compliant with IPC standards for manufacturing and delivery.

•Used for making connections on PCBs with male headers.

Specifications:
