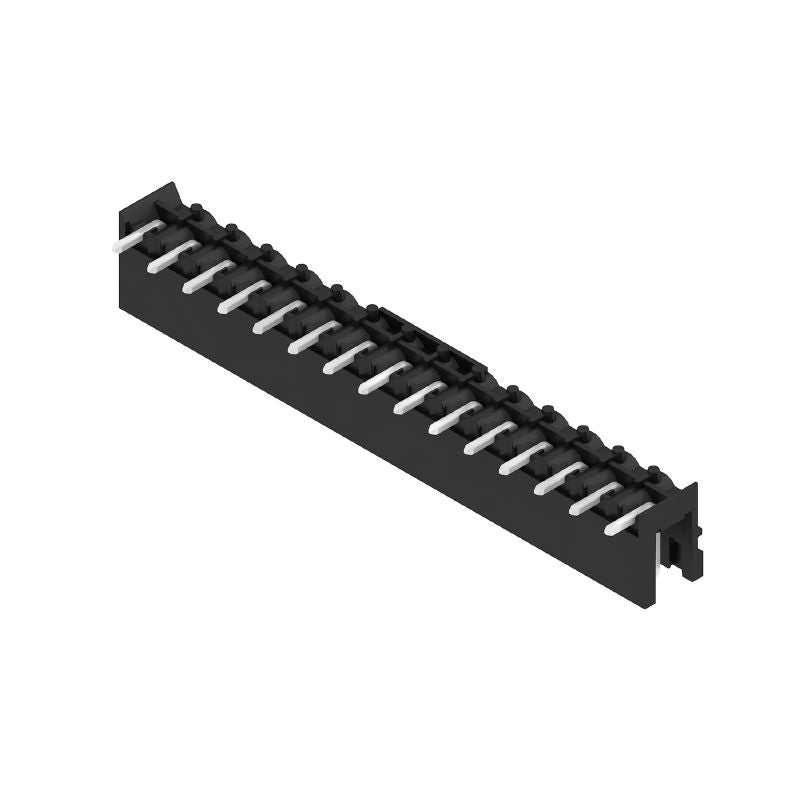

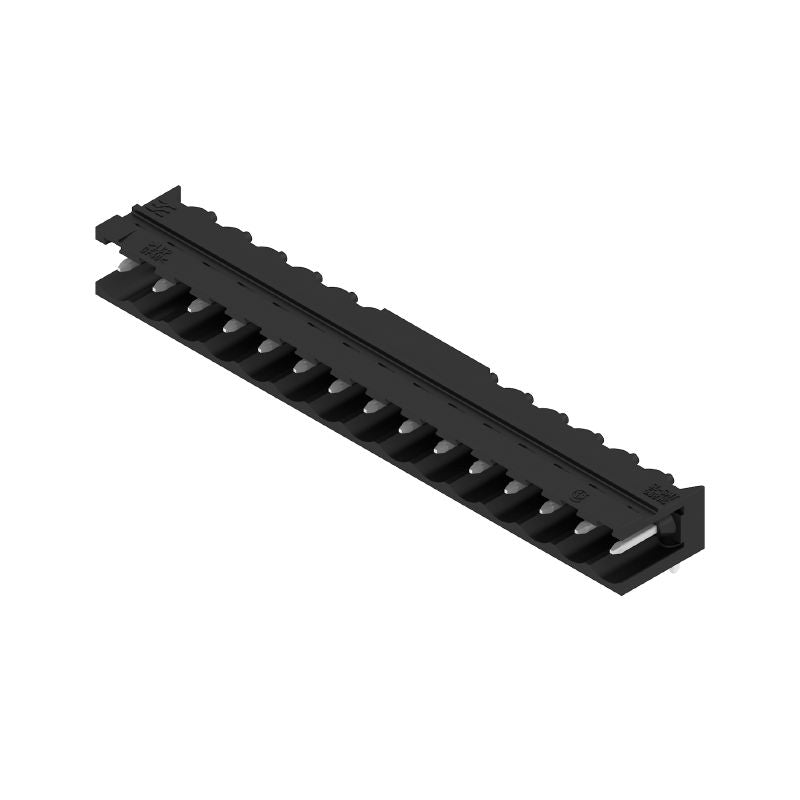

1780080000 - 5.08mm 15-Pole PCB Connector, 90° Angle, ROHS Compliant (Pack of 50)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the SL-SMT 508HC/15/90 32SN BK BX, a male header PCB plug-in connector perfect for open side soldering With a pitch measurement of 508 mm and 15 poles arranged at a 90° angle, this connector is engineered for versatile connection needs The tinned solder pins measure 32 mm in length and are packaged in a stylish black wrapper Designed to meet ROHS standards, it supports a voltage rating of 400 V at 27.

5 A for IEC applications and 300 V at 185 A for UL use, ensuring compatibility and safety in various electronic projects.

Features and Benefits:

•Compliant with ROHS regulations.

•THT/THR solder connection.

•Can be coded for specific applications.

•Touch-safe protection according to DIN standards.

•Numerous approvals including UL and CSA.

•Gold-plated contact surfaces available on request.

Specifications:
