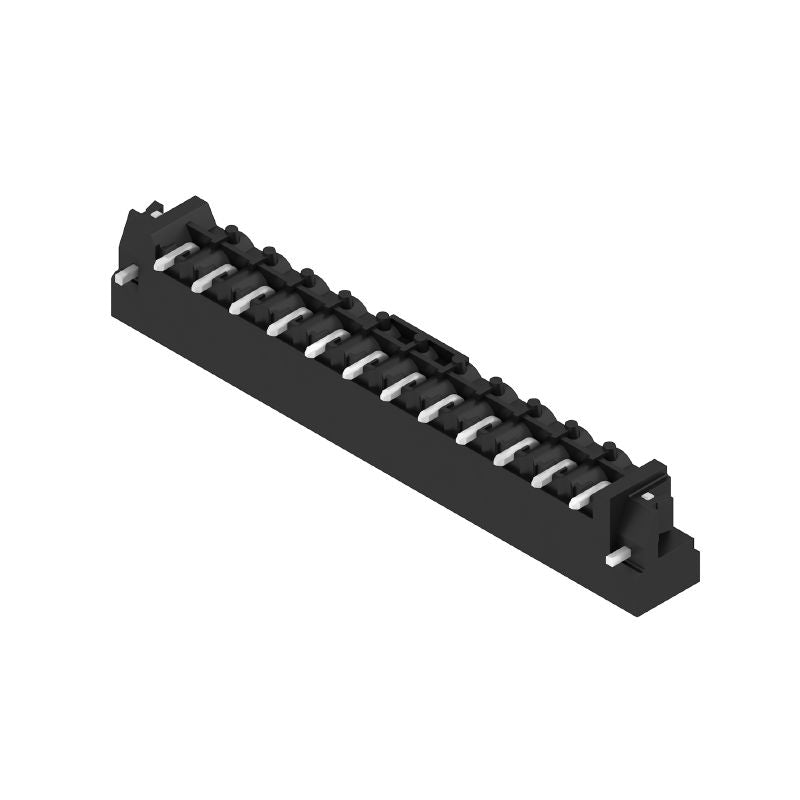

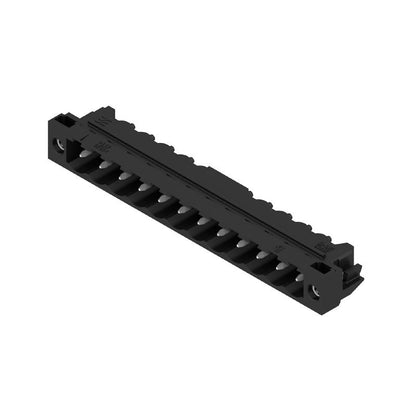

1775332001 - 12-Pole 5.08mm PCB Connector with 90° Angle and Solder Flange (Pack of 24)

1775332001 - 12-Pole 5.08mm PCB Connector with 90° Angle and Solder Flange (Pack of 24)

SKU: SKU: 1775332001   Download PDF

Select a Variant:
  • 1775332001 - 12-Pole 5.08mm PCB Connector with 90° Angle and Solder Flange (Pack of 24)
Qty:
Regular price Now $89.10   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $89.10 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Introducing our male header PCB plug-in connector, engineered specifically for a secure connection This connector features a THT/THR soldering design with a robust solder flange, accommodating a 508 mm pitch With a capacity for 12 poles arranged at a 90° angle, it boasts 15 mm tinned solder pins for reliable electrical performance It arrives in sleek black packaging, ensuring a professional and polished presentation.

Features and Benefits:

    •RoHS compliant.

    •Touch-safe protections according to DIN VDE standards.

    •Can be coded.

    •Easy installation with THT/THR solder connection.

Specifications:

 Order No. 1775332001
 IEC Voltage Rating 400 V / 27.5 A
 UL Voltage Rating 300 V / 18.5 A
 Depth 12 mm
 Height 10 mm
 Width 70.76 mm
 Solder Pin Length 1.5 mm
 Number of Poles 12
 Protection Degree IP20
 Rated Current (min.) 27.5 A
 Rated Voltage 400 V
 Operating Temperature -50 to 100 °C
