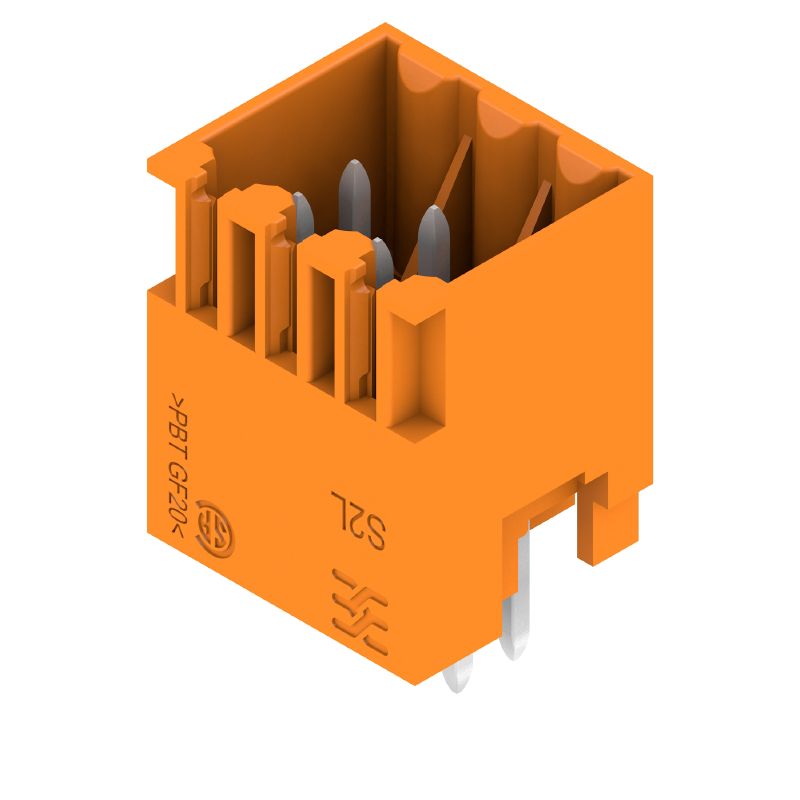

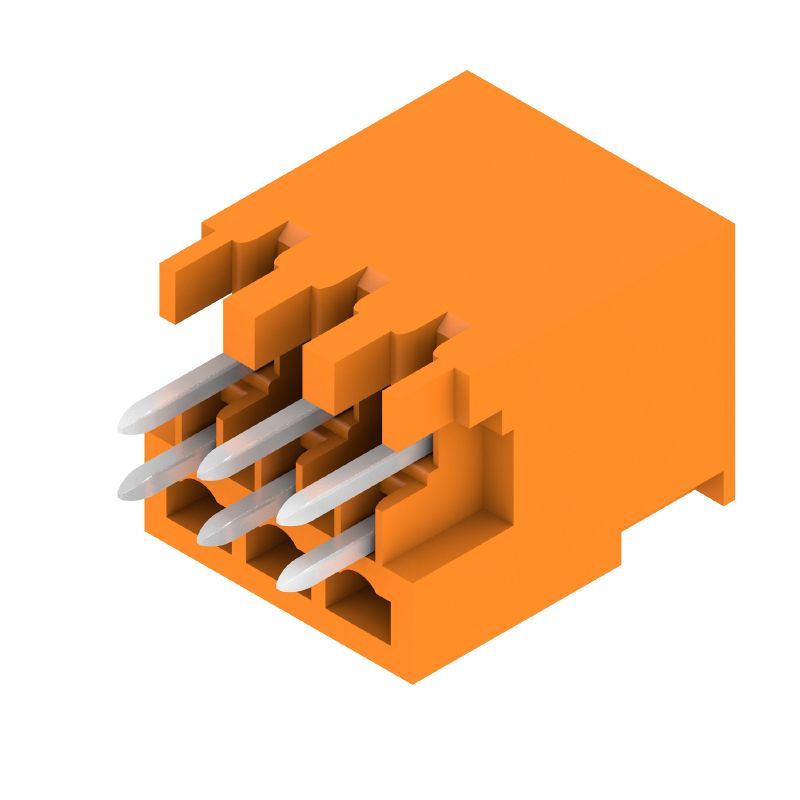

1728790000 - 3.5mm 6-Pole PCB Male Header Connector, 180° Angle (Pack of 156)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

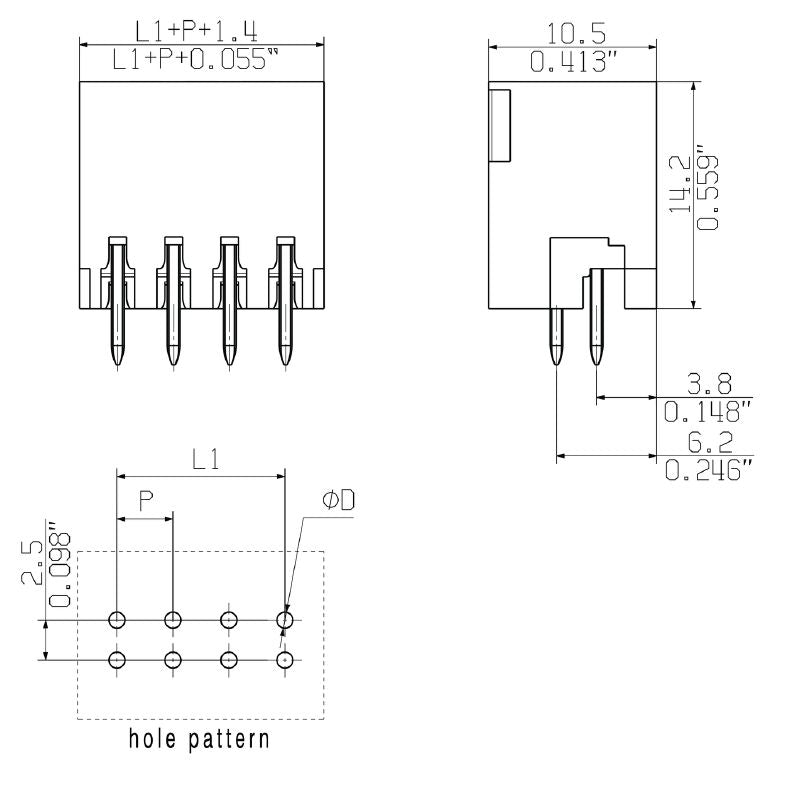

Introducing a versatile PCB plug-in connector, expertly crafted with a male header featuring a closed side and robust THT solder connection This connector boasts a compact 350 mm pitch and is configured with 6 poles arranged at a 180° angle Each solder pin measures 35 mm in length and is coated with a durable tin finish The connector is packaged in a distinctive orange box and is compliant with UL and RoHS standards.

It also includes an individual order number for easy tracking and identification.

Features and Benefits:

•IEC rated at 250 V / 10 A.

•UL rated at 150 V / 10 A.

•Can be coded for safety.

•Touch-safe protection for unplugged and plugged states.

•Designed for board connection with easy mounting.

•Environmental compliance with RoHS and REACH.

Specifications:
