1728700000 - 3.5mm Male PCB Connector, 20 Poles, 90° Angle (Pack of 42)

1728700000 - 3.5mm Male PCB Connector, 20 Poles, 90° Angle (Pack of 42)

SKU: SKU: 1728700000   Download PDF

Select a Variant:
  • 1728700000 - 3.5mm Male PCB Connector, 20 Poles, 90° Angle (Pack of 42)
Qty:
Regular price Now $232.16   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $232.16 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Introducing a versatile male header PCB plug-in connector, expertly crafted for through-hole technology (THT) soldering With a 350 mm pitch and 20 pins oriented at a 90° angle, this connector is designed for efficient connectivity The solder pin extends to 35 mm for reliable installation Housed in a sleek black enclosure, it adheres to RoHS regulations and boasts a UL certification (E60693), ensuring both safety and compliance for your electronic projects.

Features and Benefits:

    •Finger-safe when unplugged and back-of-hand-safe when plugged according to DIN VDE 57 106.

    •Touch-safe protection rated at IP20 when plugged and IP10 when unplugged.

    •Can be coded for secure connection.

    •Compatible with various mounting options.

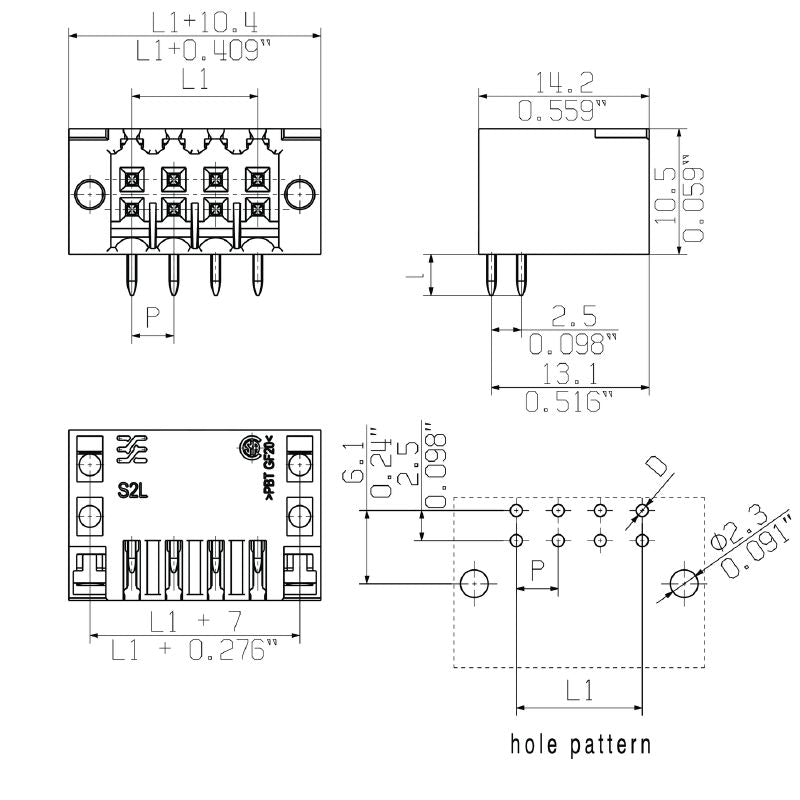

Specifications:

 IEC Voltage Rating 250 V
 UL Voltage Rating 150 V
 Number of Poles 20
 Pitch 3.5 mm
 Solder Pin Length 3.5 mm
 Depth 14.2 mm
 Height 14 mm
 Width 42 mm
 Net Weight 7 g
 Operating Temperature Range -50 °C to 100 °C
 Storage Temperature Range -40 °C to 70 °C
 Material PBT
 Contact Material Cu-alloy
 Flammability Rating V-0
