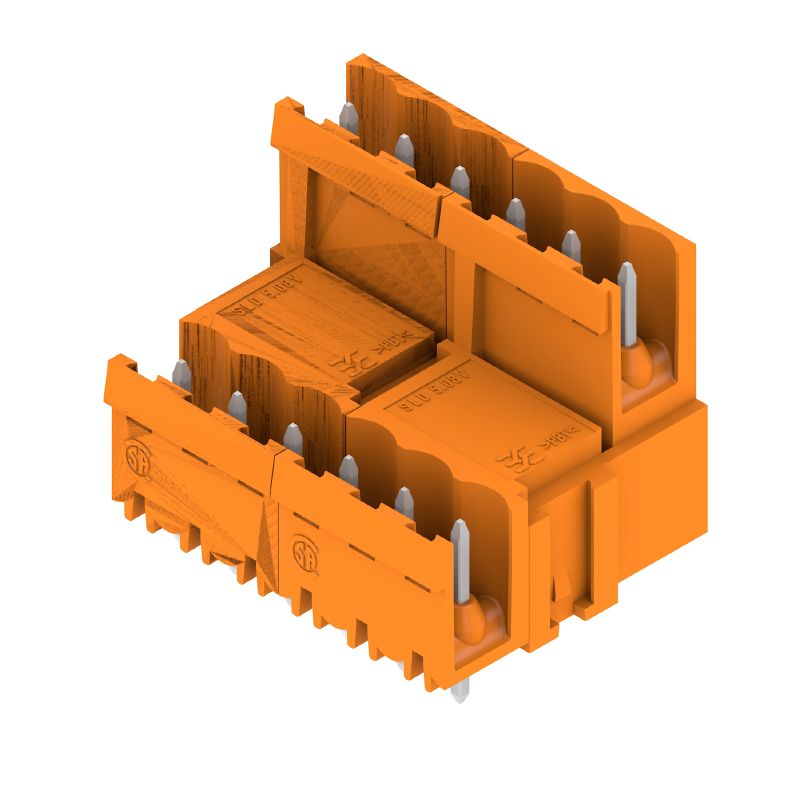

1725690000 - OMNIMATE 180° Male Header Connector, 12 Poles, 5.08mm Pitch (Pack of 50)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

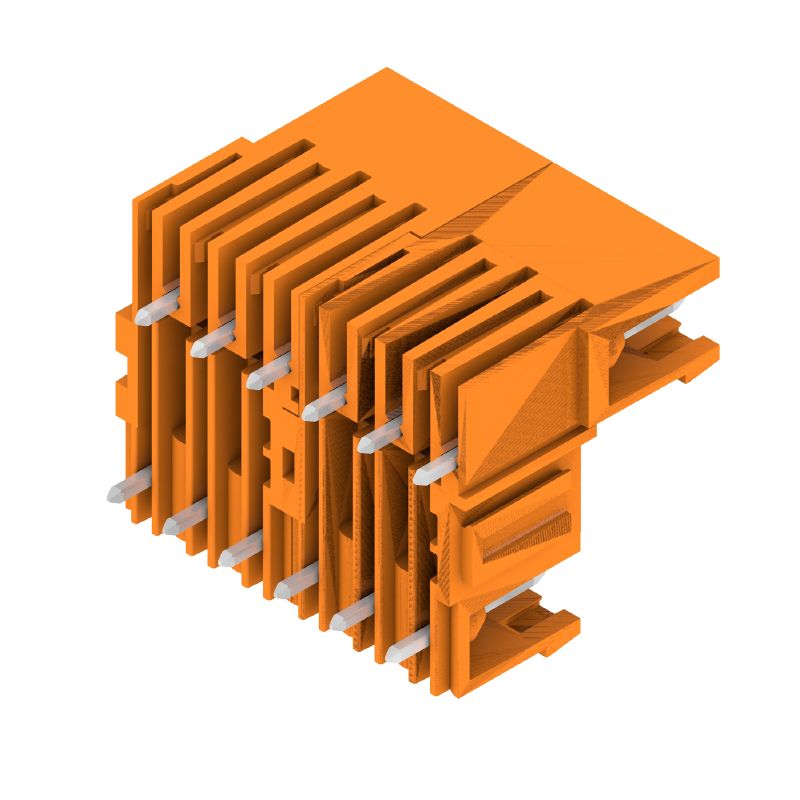

Optimize your PCB connections with this robust male header connector, specifically crafted for plug-in applications It features a dependable THT solder joint at a 508 mm pitch and boasts an open side design With a total of 12 poles arranged at a 180° angle, the connector provides an efficient layout The solder pins, measuring 32 mm in length, are tin-coated for enhanced durability and come in a vibrant orange color.

This component is part of the highly regarded OMNIMATE Signal series, ensuring reliable and effective connections for your electronic projects.

Features and Benefits:

•Compliant with RoHS without exemptions.

•Touch-safe protection following relevant standards.

•Rated voltage: up to 320 V for pollution degree II.

•Connectors can be coded for easy use.

•Suitable for a wide range of storage and operating temperatures.

•Used for PCB connections in electronic assemblies.

Specifications:
