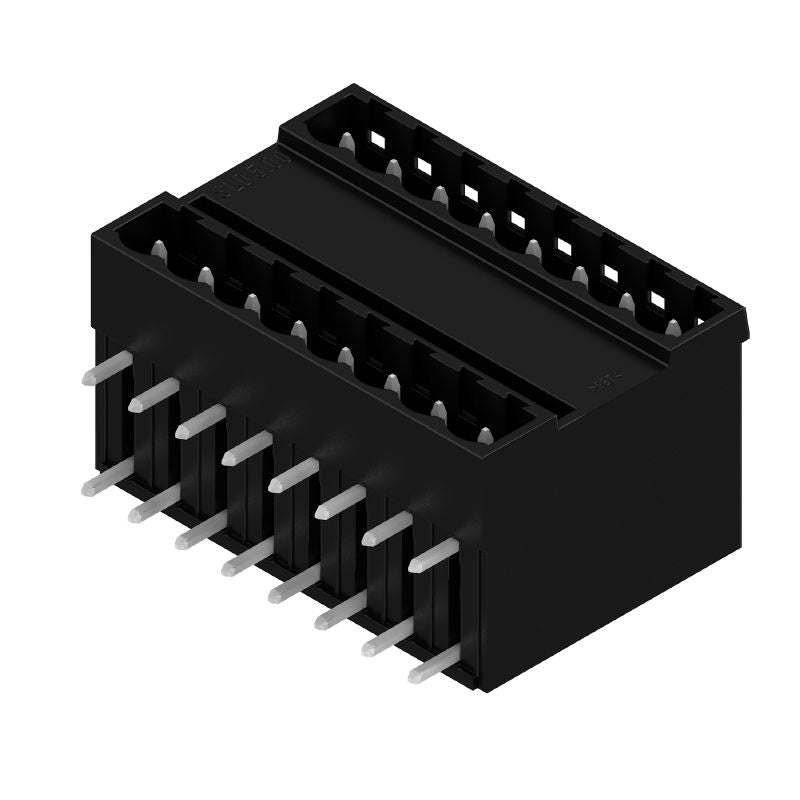

1653760000 - Male PCB Connector, 5mm, 16-Pole, 90° THT Solder (Pack of 20)

1653760000 - Male PCB Connector, 5mm, 16-Pole, 90° THT Solder (Pack of 20)

SKU: SKU: 1653760000   Download PDF

Select a Variant:
  • 1653760000 - Male PCB Connector, 5mm, 16-Pole, 90° THT Solder (Pack of 20)
Qty:
Regular price Now $121.14   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $121.14 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Introducing a versatile PCB plug-in connector, expertly crafted as a male header with a closed side This connector is designed for through-hole technology (THT) soldering and boasts a 500 mm pitch It features 16 pins arranged at a precise 90° angle, with tin-coated solder pin lengths measuring 45 mm The product arrives in stylish black packaging, making it a practical choice for your electronic assembly needs.

Features and Benefits:

    •RoHS compliant without exemption.

    •Touch-safe protection according to DIN VDE 57 106, finger-safe when unplugged and back-of-hand-safe when plugged.

    •Can be coded.

    •Low volume resistance of ≤5 mΩ.

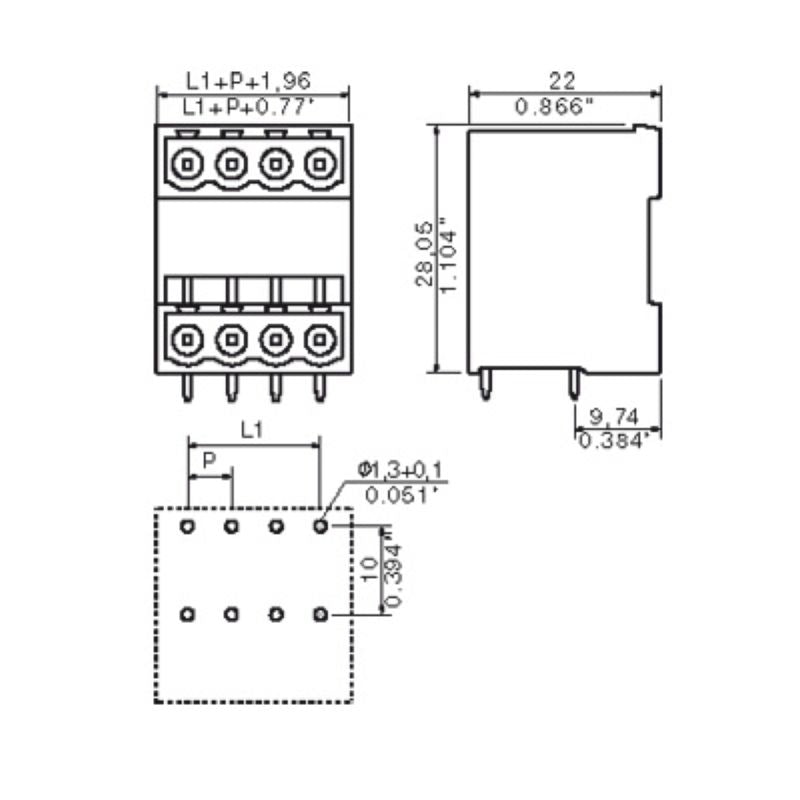

Specifications:

 Rated voltage for IEC 400 V / 11 A
 UL voltage rating 300 V / 10 A
 Depth 22 mm
 Height 32.55 mm
 Width 41.96 mm
 Pitch 5 mm
 Number of poles 16
 Solder pin dimensions d = 1.2 mm
 Insulating material PBT
 Comparative Tracking Index (CTI) ≥ 200
 Operating temperature range -50 °C to 100 °C
 Storage temperature range -40 °C to 70 °C
 Protection degree IP20
 Material of contact Cu-alloy
 Contact surface tinned
