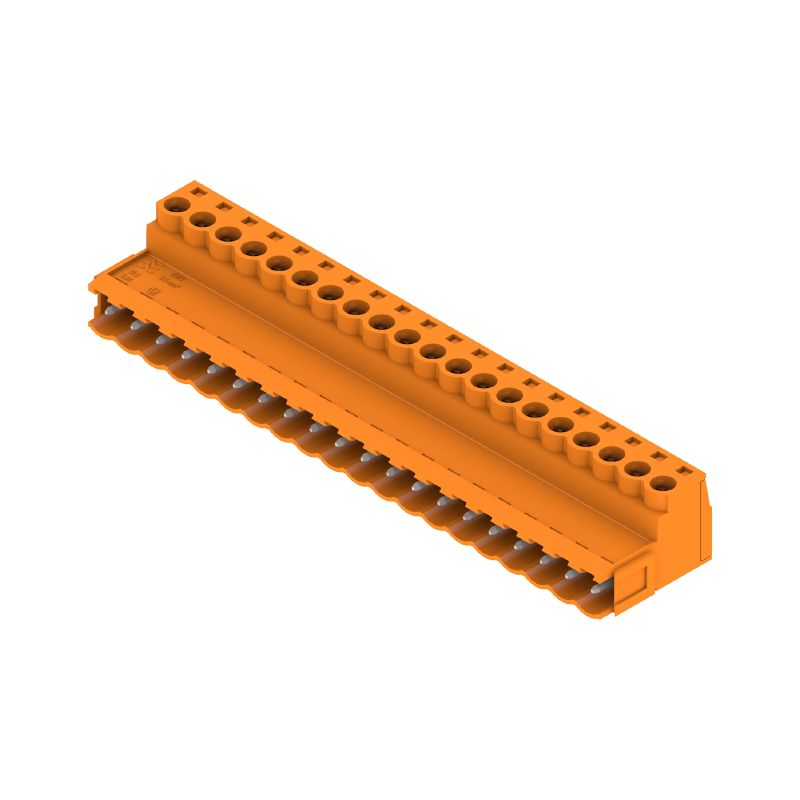

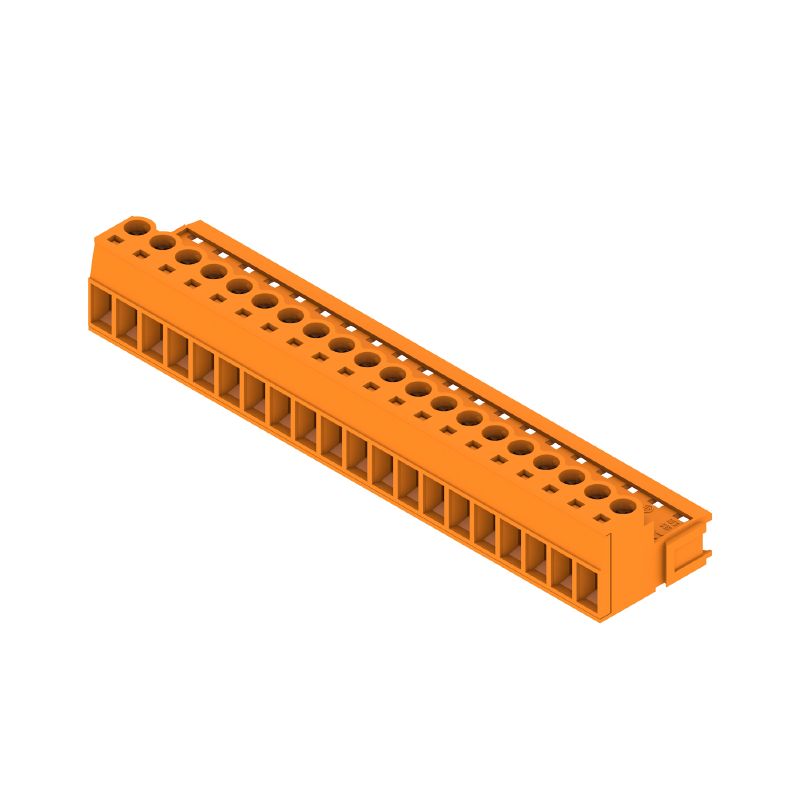

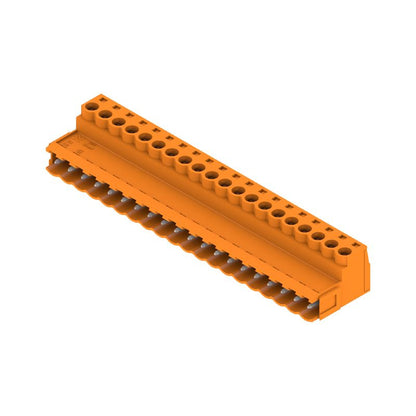

1645180000 - 5.08mm 20-Pole PCB Male Connector, 180° Angle (Pack of 18)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the SLS 508/20/180B SN OR BX, a specialized male plug-in connector tailored for printed circuit board (PCB) applications With a 508 mm pitch, this connector can support up to 20 poles arranged at a 180° angle It features a reliable clamping yoke connection, with a maximum clamping capacity of 331 mm² Each unit is conveniently packaged in a box for easy storage and handling.

Features and Benefits:

•High current rating of 21.5 A with a voltage rating of 400 V in compliance with IEC standards.

•Clamping yoke connection allows for excellent cable securing.

•Finger-safe when plugged in and provides back-of-hand safety when unplugged.

•Protection class IP20 when fully mounted.

•Can be coded for specific applications.

•Suitable for various conductor types and cross-sections.

•Field connection applications.

Specifications:
