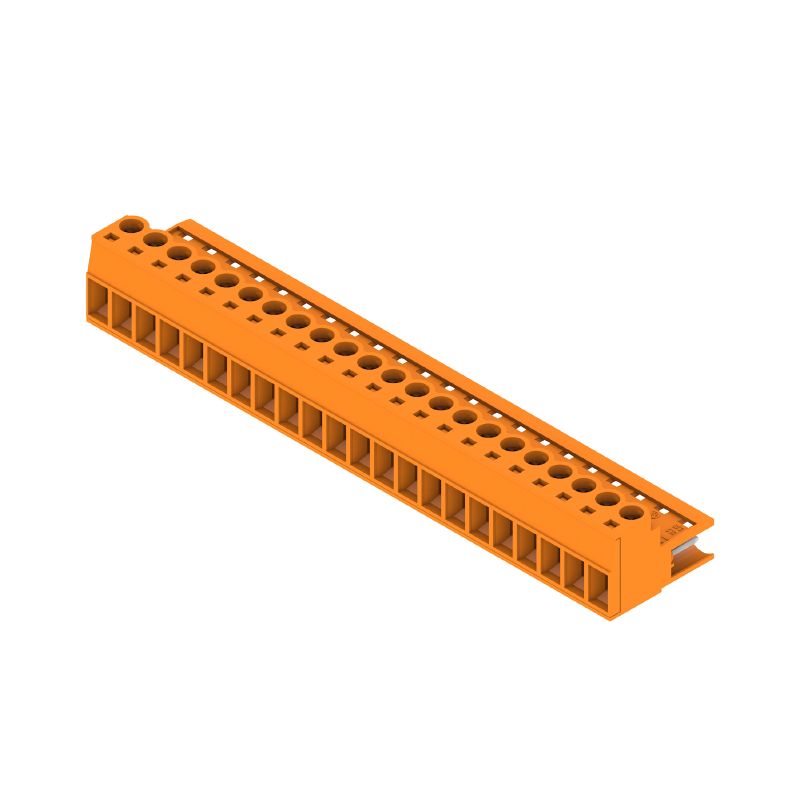

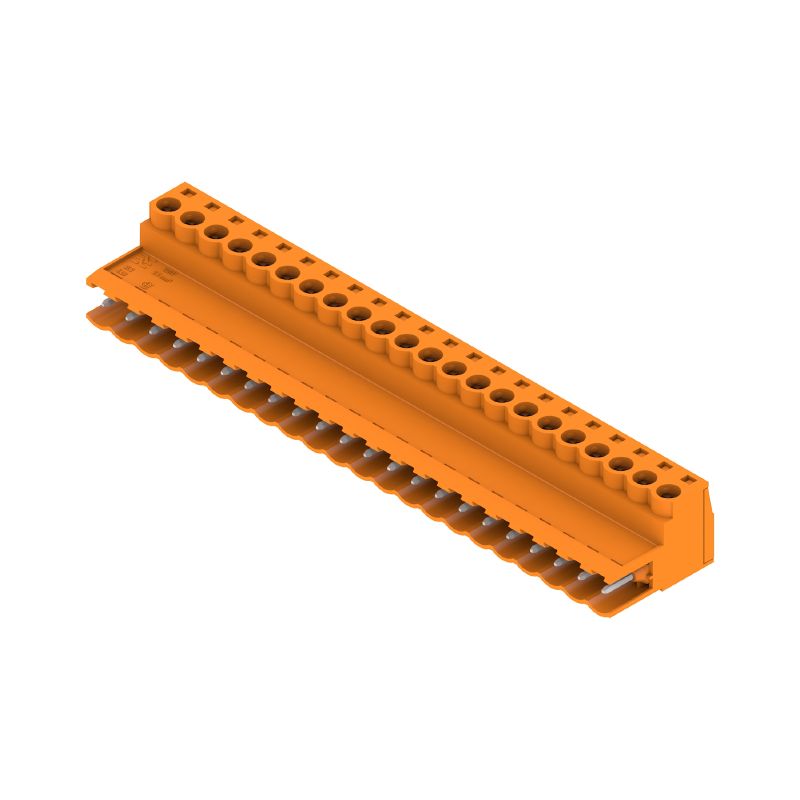

1644890000 - 5.08mm 22-Pole Connector with 180° Clamping Design (Pack of 12)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing our versatile male plug PCB plug-in connector, engineered with a 508 mm pitch and 22 poles for seamless connectivity at a 180° angle This connector features a robust clamping yoke connection with a maximum clamping capacity of 331 mm², ensuring a secure fit It supports an IEC voltage of 400 V at 215 A and a UL voltage of 300 V at 14 A, making it reliable for various applications Packaged thoughtfully in a box and made from environmentally friendly materials, this product combines performance and sustainability for your project needs.

Features and Benefits:

•Clamping yoke connection method.

•Touch-safe protection IP20 when fully mounted.

•Can be coded for the application.

•Durable with a maximum of 25 plugging cycles.

•Compliant with RoHS criteria.

•Field connection.

Specifications:
