1640010000 - 3.50mm Female PCB Connector, 10 Poles, 270° Angle (Pack of 42)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

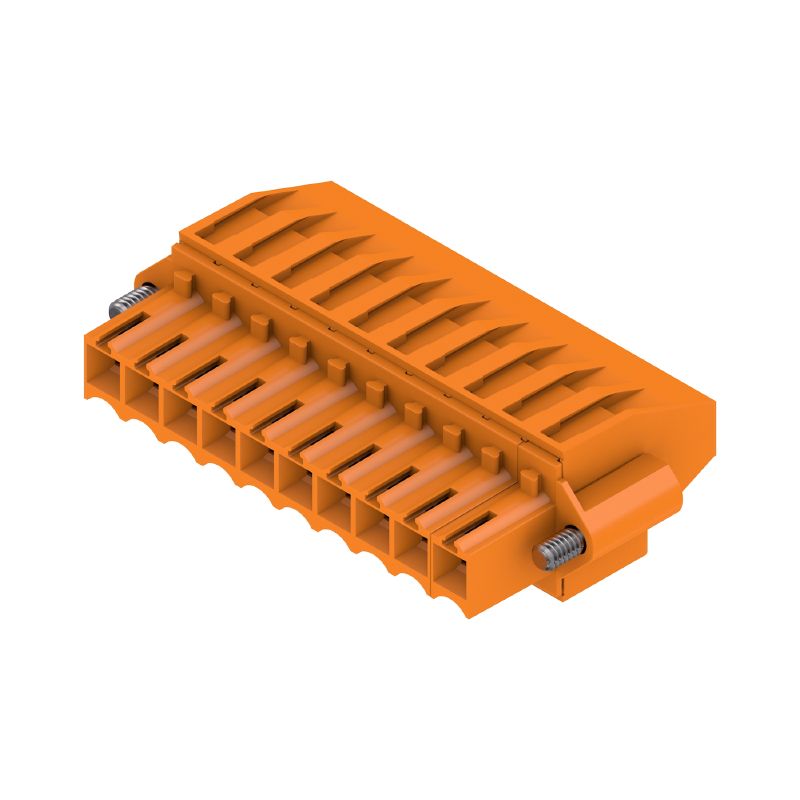

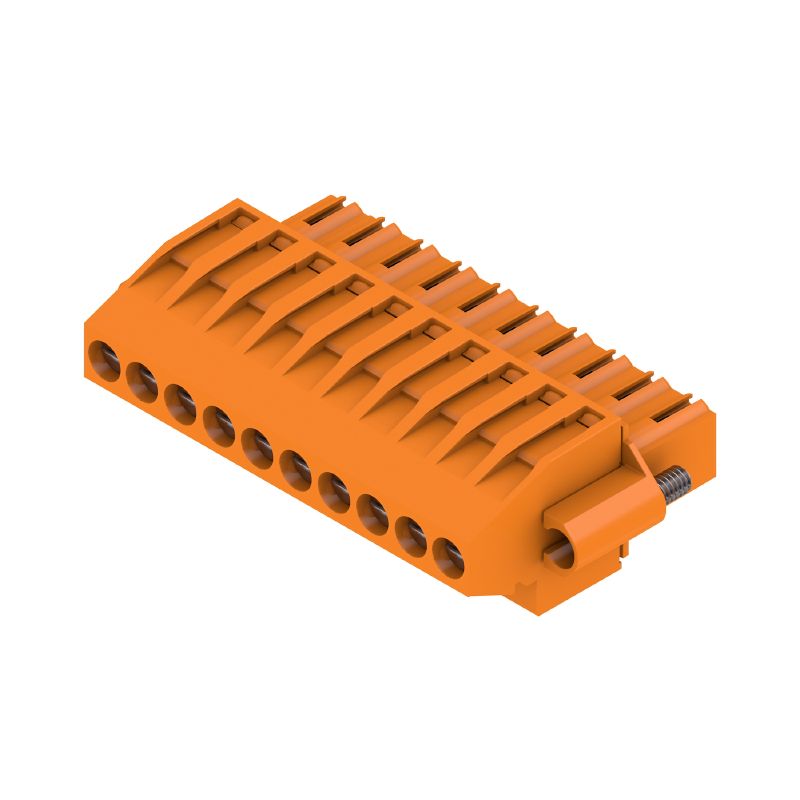

Introducing a high-performance PCB plug-in connector designed for versatility and reliability This female plug connector has a compact 350 mm pitch with 10 poles positioned at a convenient 270° angle Equipped with a clamping yoke connection, it is capable of accommodating conductors with a cross-section of up to 15 mm² This product meets RoHS standards and holds the UL certification number E60693, ensuring quality and compliance for your electronic projects.

Features and Benefits:

•300 V rated voltage for UL 1059, Use groups B and D.

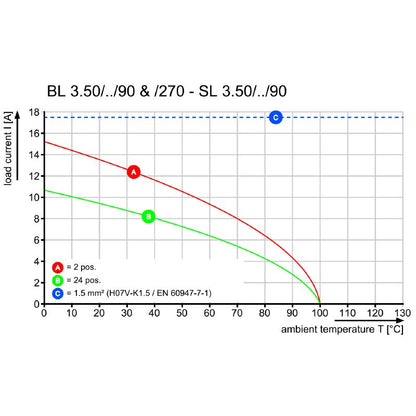

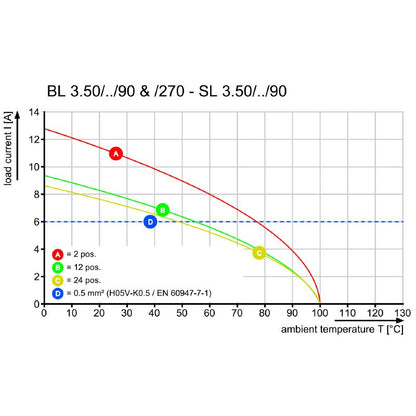

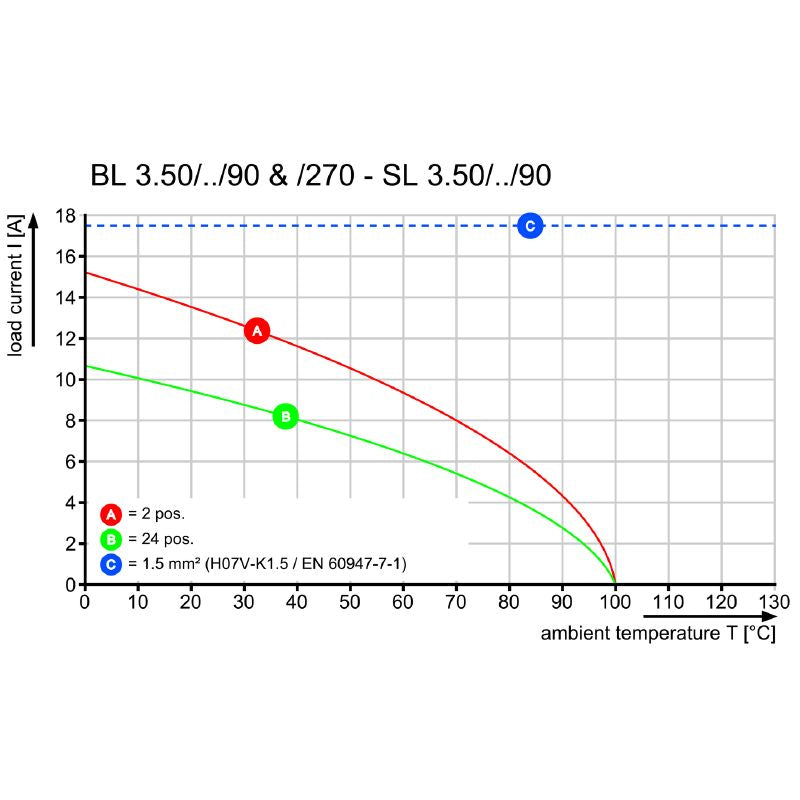

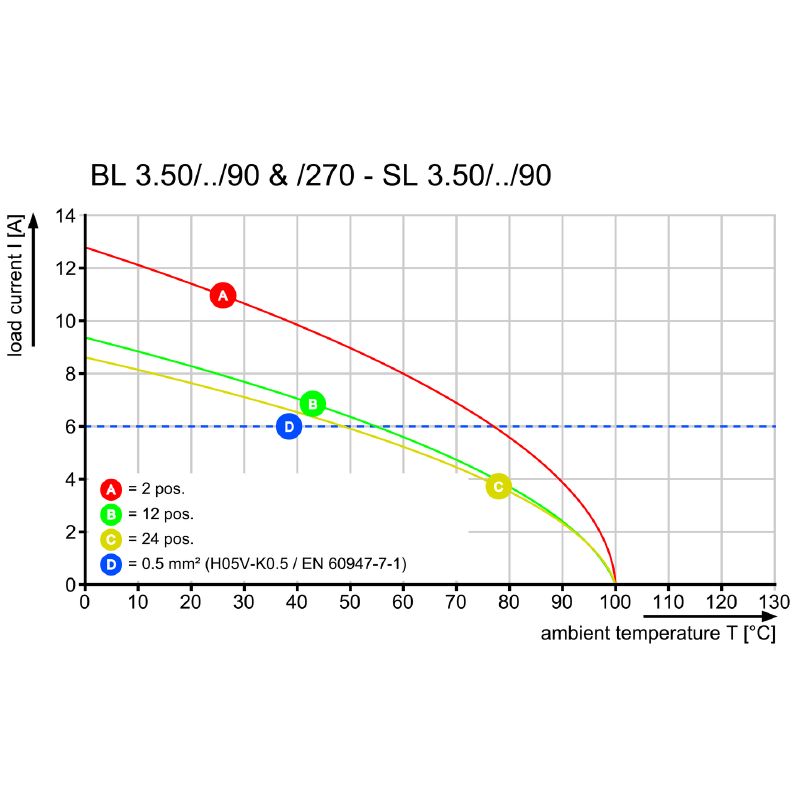

•Rated current of up to 12 A at 20°C conditions.

•Touch-safe protection as per DIN standards.

•Can be coded to prevent misconnection.

•Compliant without an exemption for RoHS.

•Environmental compliance with no SVHCs above 0.1 wt%.

Specifications:
