1625990000 - 5mm Pitch Black PCB Connector, 2-Pole, 90° Angle (Pack of 100)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

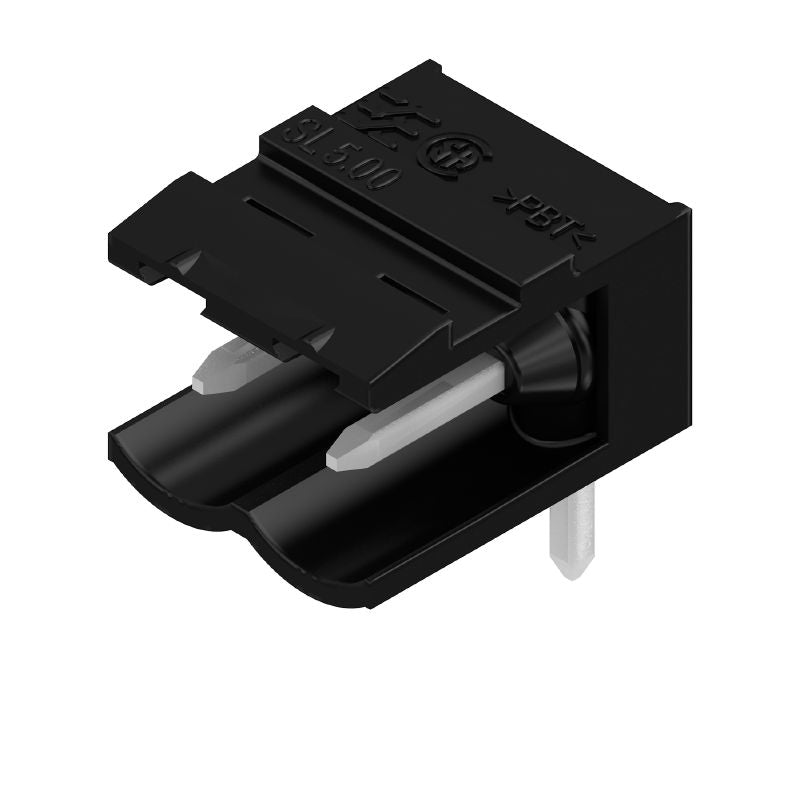

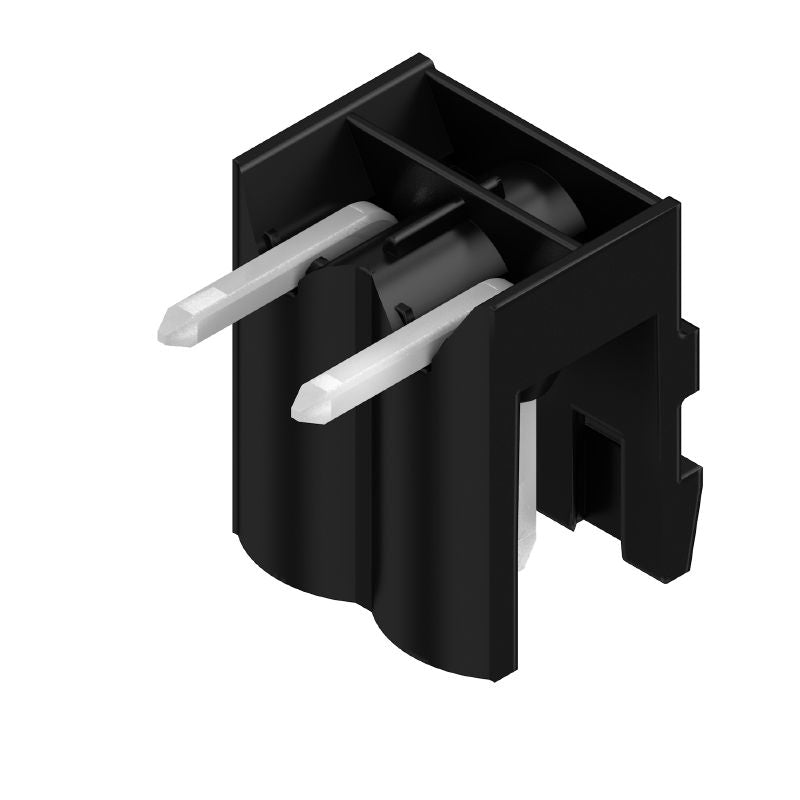

Introducing a premium male header PCB plug-in connector, specially designed with an open side for convenient THT solder connections This connector is engineered with a 500 mm pitch and features 2 poles set at a 90° angle The length of the solder pins measures 45 mm, all presented in a classic black color For added convenience, it comes packaged neatly in a box, making it a great addition to your electronic projects.

Features and Benefits:

•Solder pin length tolerance is +0.1 / -0.2 mm.

•Plugging force per pole is a maximum of 10 N.

•Pulling force per pole is a maximum of 8 N.

•Touch-safe protection according to DIN VDE 57 106 is finger-safe unplugged and back-of-hand-safe when plugged.

•The product is compliant with RoHS without exemption.

•The connector can be coded.

•The insulation material is PBT.

•Gold-plated contact surfaces are available upon request.

Specifications:
