1618330000 - 3.50mm 22-Pole Black PCB Connector for THT Soldering (Pack of 20)

1618330000 - 3.50mm 22-Pole Black PCB Connector for THT Soldering (Pack of 20)

SKU: SKU: 1618330000   Download PDF

Select a Variant:
  • 1618330000 - 3.50mm 22-Pole Black PCB Connector for THT Soldering (Pack of 20)
Qty:
Regular price Now $119.29   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $119.29 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

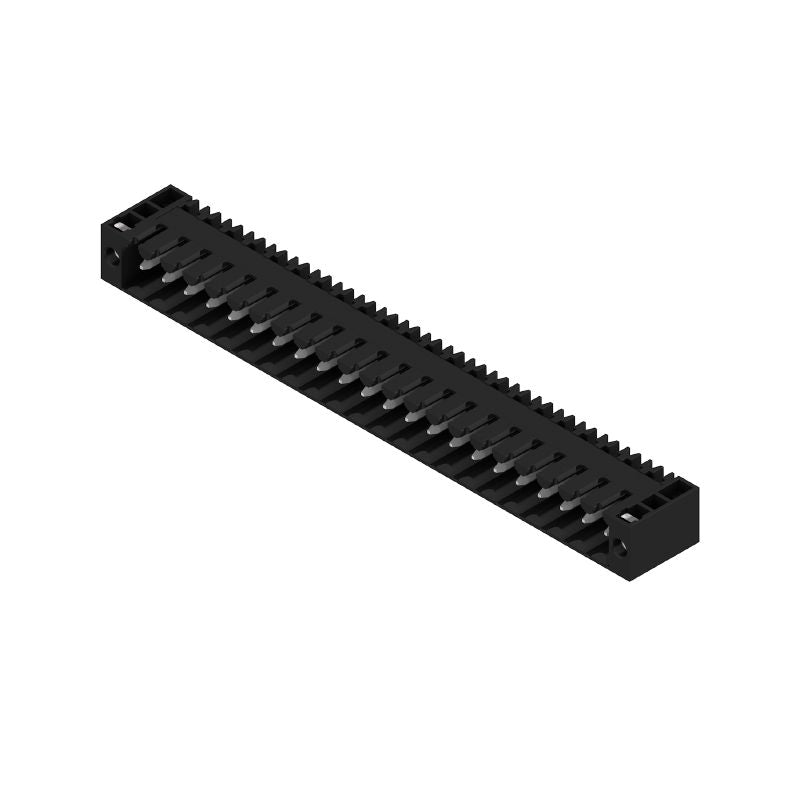

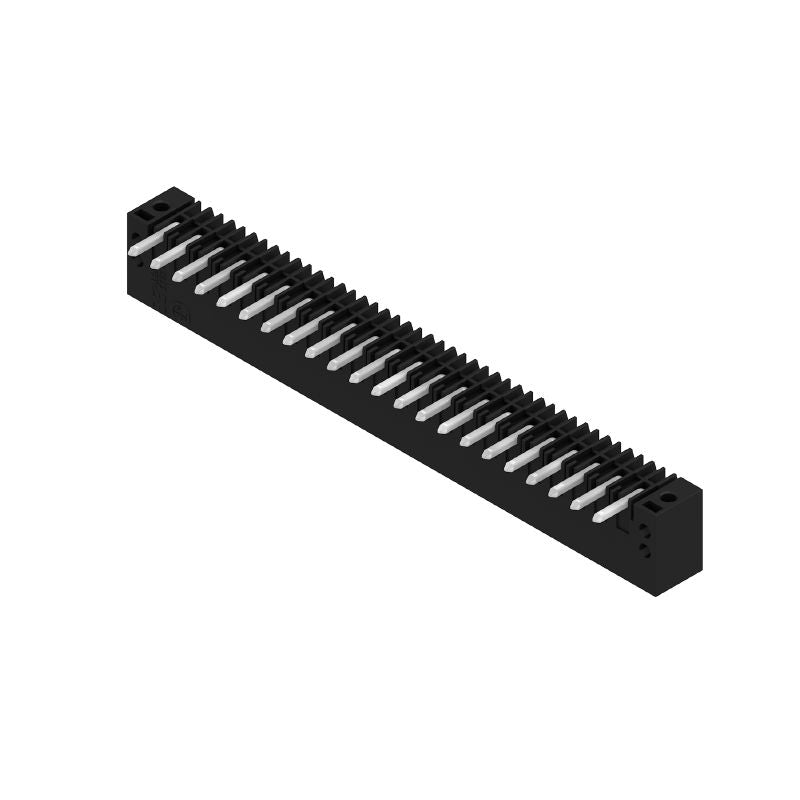

Experience reliable connectivity with the SL 350/22/90F 45 SN BK BX male header PCB plug-in connector Designed for through-hole (THT) solder applications, this connector features a 350 mm pitch and accommodates up to 22 poles The solder pins are 45 mm long, ensuring a secure connection with a sleek black finish Each connector is conveniently packaged in a box for easy storage and transport.

Features and Benefits:

    •RoHS compliant without exemption.

    •Can be coded.

    •Touch-safe protection with finger-safe when plugged and back-of-hand-safe when unplugged.

    •Requires tightening torque of 0.1 to 0.15 Nm for mounting screw on PCB.

    •For board connection in electronic devices.

Specifications:

 Number of poles 22
 Solder pin length 4.5 mm
 Rated current (min. number of poles at 20°C) 17 A
 Rated current (max. number of poles at 20°C) 12 A
 Rated voltage for surge voltage class / pollution degree II/2 320 V
 Insulating material PBT
 Contact base material CuSn
 Operating temperature range -50 °C to 100 °C
 Storage temperature range -40 °C to 70 °C
 Volume resistance 6.00 mΩ
 Flammability rating V-0
