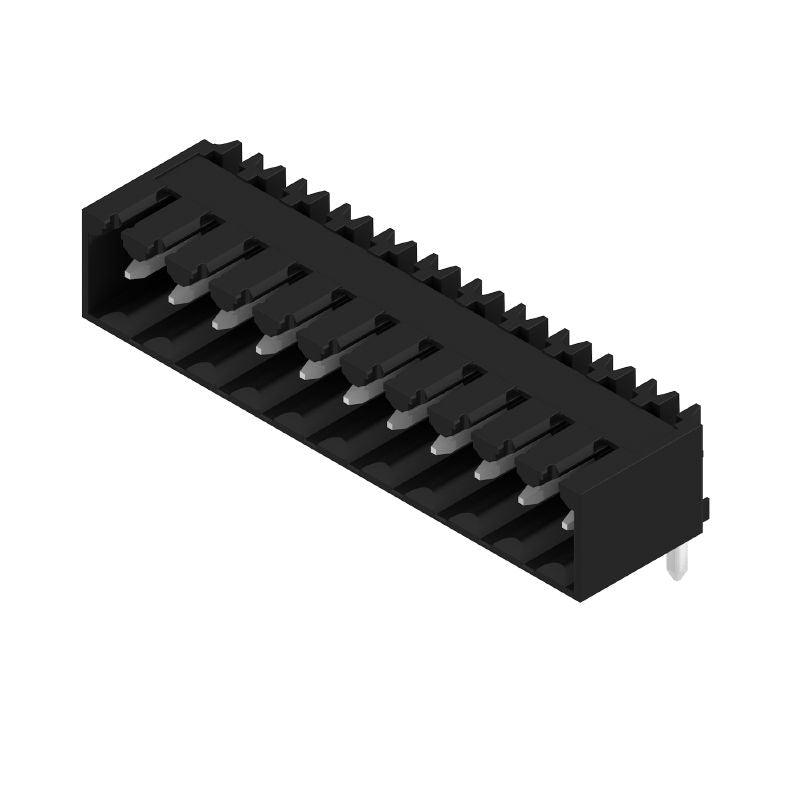

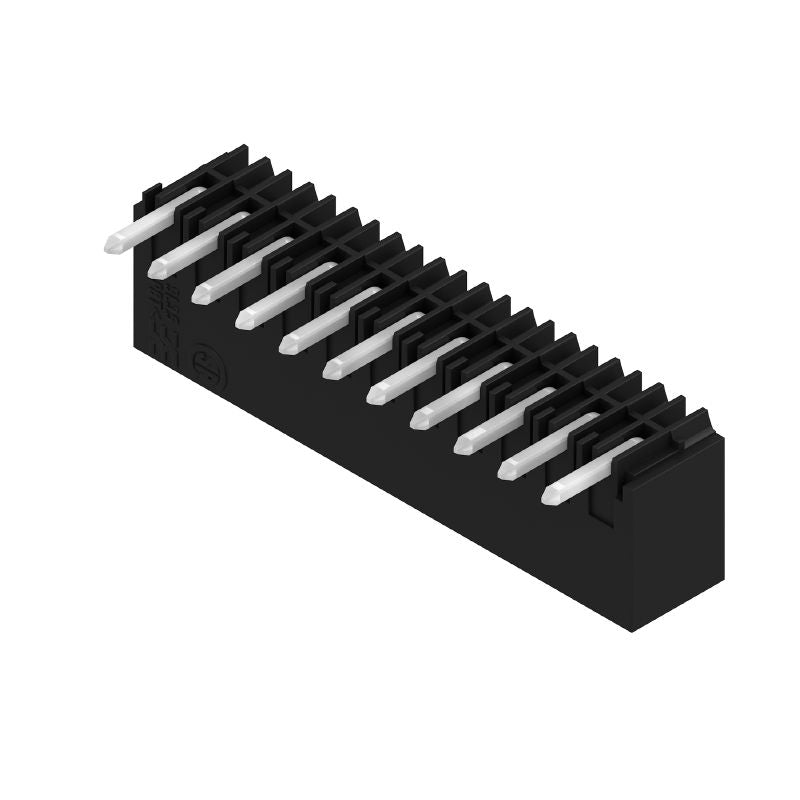

1615480000 - 3.50mm 11-Pole Male PCB Connector with 90° Angle (Pack of 50)

1615480000 - 3.50mm 11-Pole Male PCB Connector with 90° Angle (Pack of 50)

SKU: SKU: 1615480000   Download PDF

Select a Variant:
  • 1615480000 - 3.50mm 11-Pole Male PCB Connector with 90° Angle (Pack of 50)
Qty:
Regular price Now $134.86   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $134.86 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

This male header connector offers a reliable PCB plug-in solution with a closed side and through-hole (THT) solder connection With a compact pitch of 350 mm and 11 poles arranged at a 90° angle, it ensures effective connectivity The solder pin measures 45 mm in length and features a durable tinned black surface finish Packaged in a secure box, this connector meets essential quality standards for dependable performance.

Features and Benefits:

    •RoHS compliant without exemptions.

    •Touch-safe protection as per DIN VDE requirements.

    •Can be coded for secure fitting.

    •Maximum plugging force and pulling force are both 10 N.

    •Material includes flame retardant PBT.

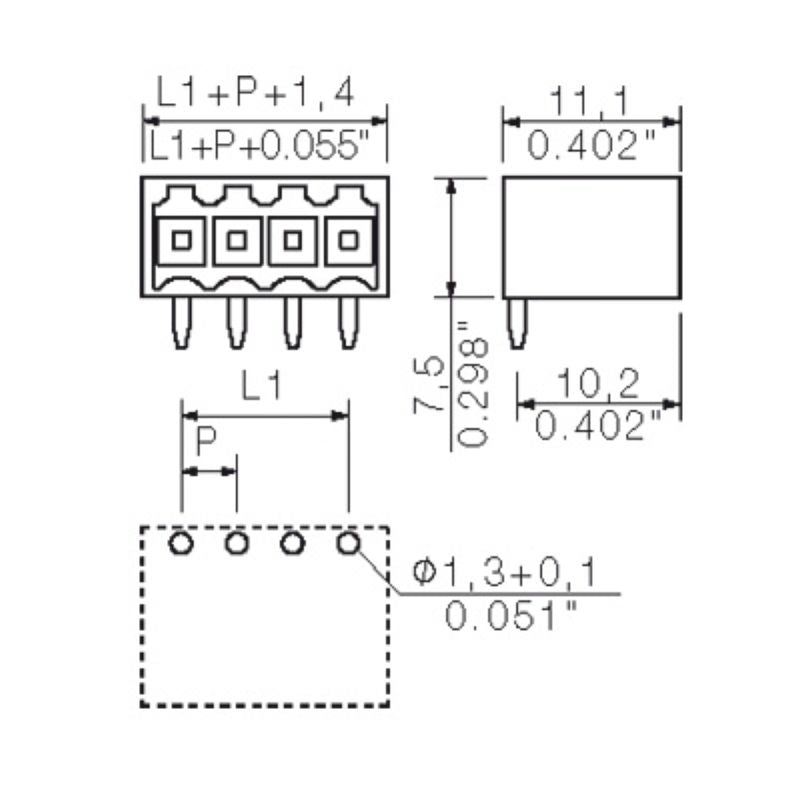

Specifications:

 Depth 11.1 mm
 Height 12 mm
 Width 39.9 mm
 Solder pin length 4.5 mm
 Volume resistance 6.00 mΩ
 Rated current (IEC) 17 A
 Rated voltage (IEC) 320 V
 Operating temperature (min) -50 °C
 Operating temperature (max) 100 °C
 Storage temperature (min) -40 °C
 Storage temperature (max) 70 °C
 Insulating material PBT
 Touch-safe protection finger-safe plugged/ back-of-hand-safe unplugged
 Number of poles 11
