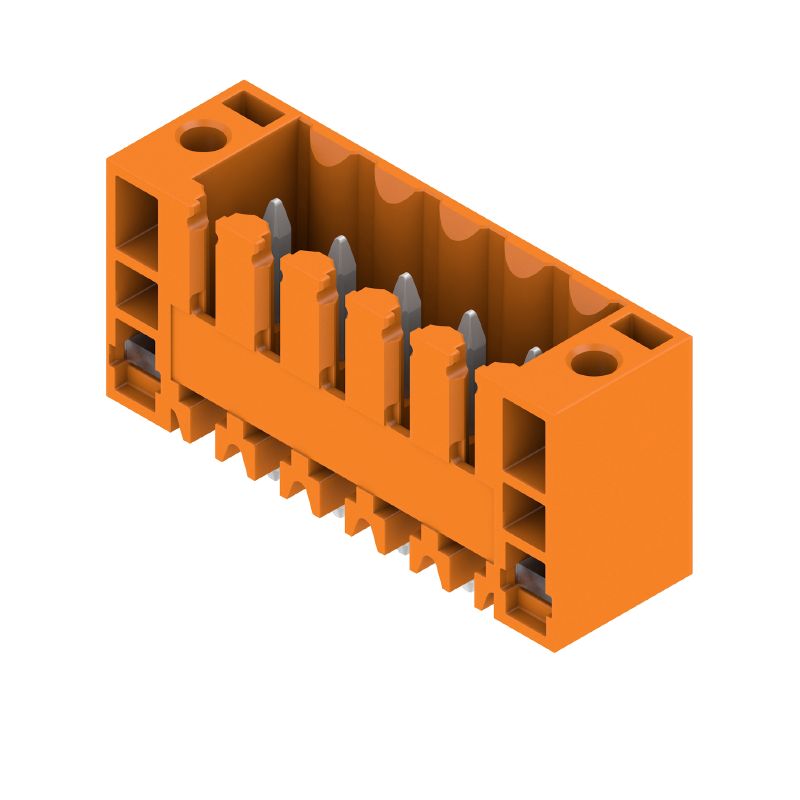

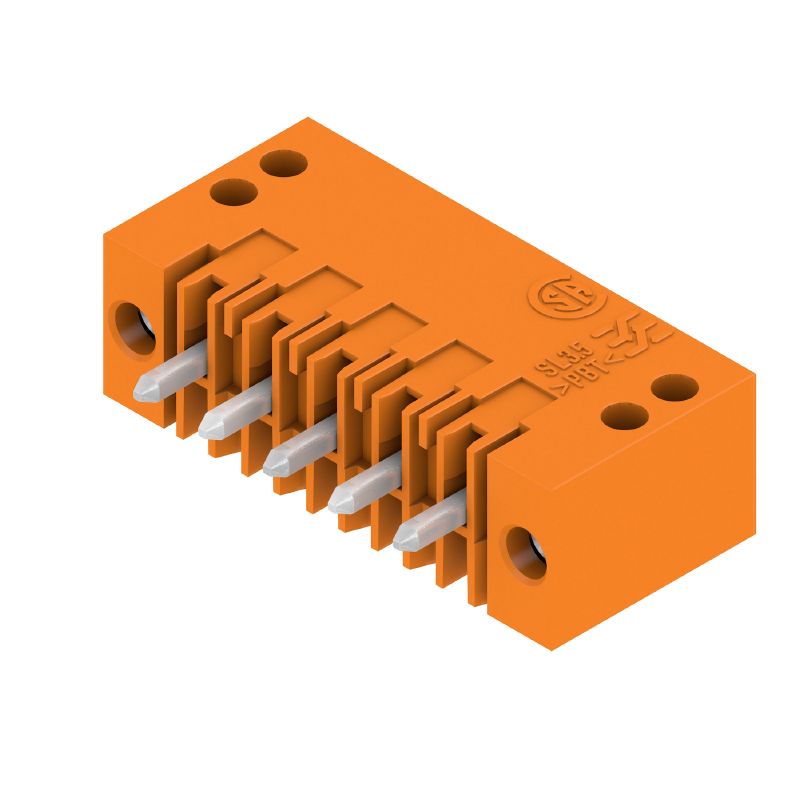

1607530000 - 3.50mm Orange 5-Pole PCB Connector, 180° Flange Type (Pack of 50)

1607530000 - 3.50mm Orange 5-Pole PCB Connector, 180° Flange Type (Pack of 50)

SKU: SKU: 1607530000   Download PDF

Select a Variant:
  • 1607530000 - 3.50mm Orange 5-Pole PCB Connector, 180° Flange Type (Pack of 50)
Qty:
Regular price Now $89.81   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $89.81 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Connect with ease using this male header PCB plug-in connector featuring a sturdy flange for reliable through-hole soldering Measuring a 350 mm pitch, the connector is designed with five poles arranged in a 180° configuration Each solder pin is 32 mm long and comes with a tinned finish, all wrapped up in a vibrant orange color For your convenience, it is packaged securely in a box.

Features and Benefits:

    •RoHS compliant.

    •Touch-safe protection according to DIN VDE standards.

    •Can be coded.

Specifications:

 IEC Voltage Rating 320 V / 17 A
 UL Voltage Rating 300 V / 10 A
 Depth 7.5 mm
 Height 14.3 mm
 Width 24.5 mm
 Number of Poles 5
 Solder Pin Length 3.2 mm
 Pitch 3.5 mm
 Operating Temperature Range -50 °C to 100 °C
 Storage Temperature Range -40 °C to 70 °C
 Volume Resistance ≤5 mΩ
 Contact Material Cu-alloy
 Flammability Rating V-0
 Insulating Material PBT
 Packaging Box
