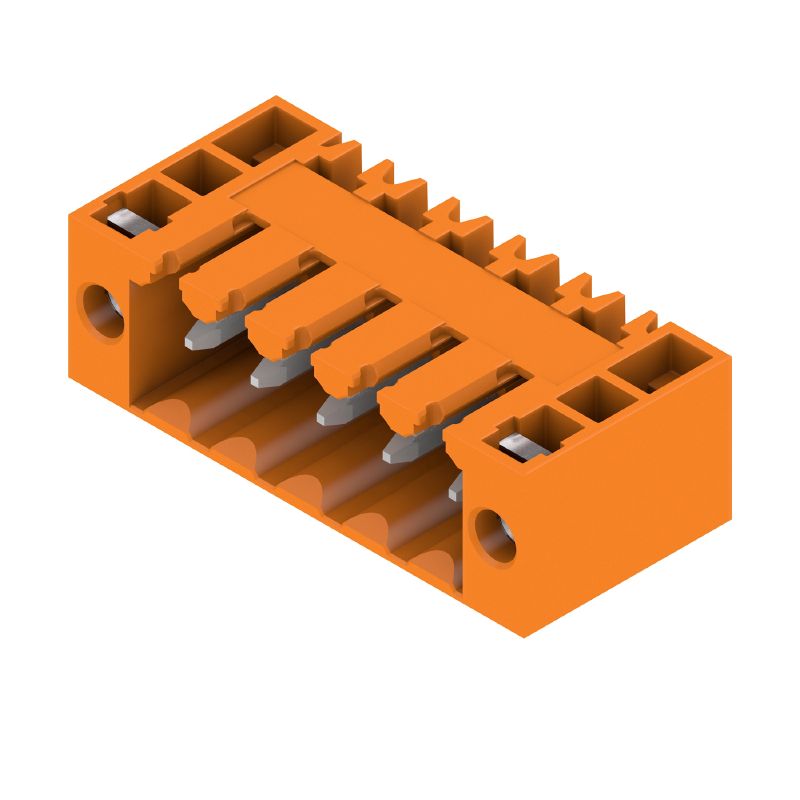

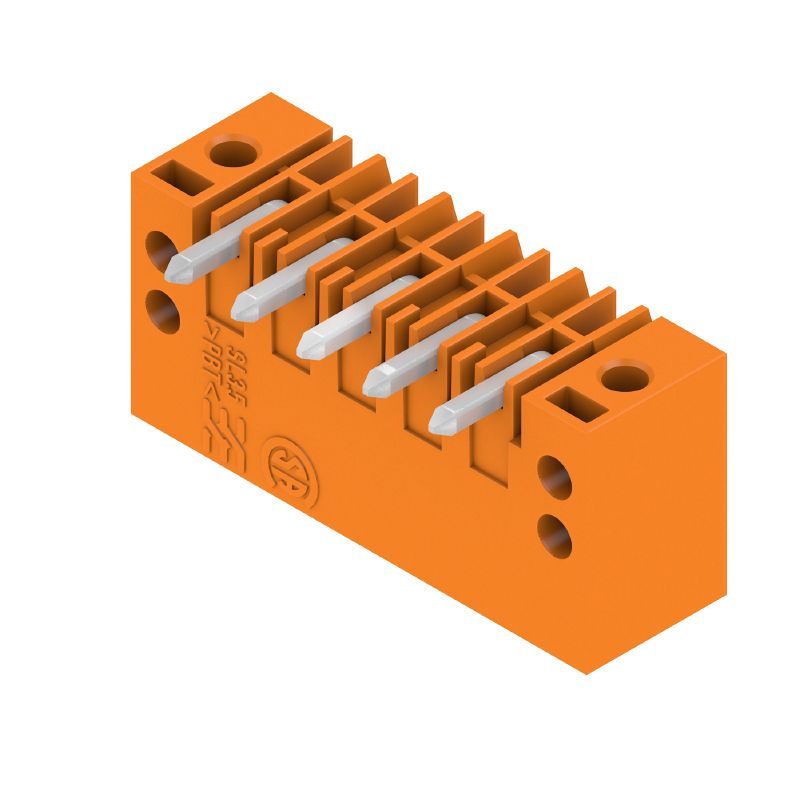

1607070000 - 5-Pole 3.50mm Male PCB Connector with Flange, 90° Angle (Pack of 50)

1607070000 - 5-Pole 3.50mm Male PCB Connector with Flange, 90° Angle (Pack of 50)

SKU: 1607070000 Download PDF

Variant:
  • 1607070000 - 5-Pole 3.50mm Male PCB Connector with Flange, 90° Angle (Pack of 50)
Now $89.81
BEFORE   $0.00 Now $89.81
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the SL 350/05/90F connector, a dependable male header designed specifically for PCB plug-in applications With a compact 350 mm pitch and a robust flange, this connector features a through-hole solder connection for enhanced stability Each pin measures 32 mm in length and is coated in tin for reliable conductivity This model showcases five poles arranged at a precise 90° angle, all conveniently packaged in a vibrant orange box for easy identification and storage.

Perfect for your electronic projects!.

Features and Benefits:

    •RoHS compliant.

    •Touch-safe protection according to DIN VDE standards.

    •Environmental product compliance.

    •Can be coded for secure connections.

    •Tightening torque specifications provided for installation.

Specifications:

 General Ordering Data PCB plug-in connector, male header, Flange, THT solder connection, 3.50 mm, Number of poles: 5, 90°, Solder pin length (l): 3.2 mm, tinned, orange, Box
 Product Data IEC: 320 V / 17 A, UL: 300 V / 10 A

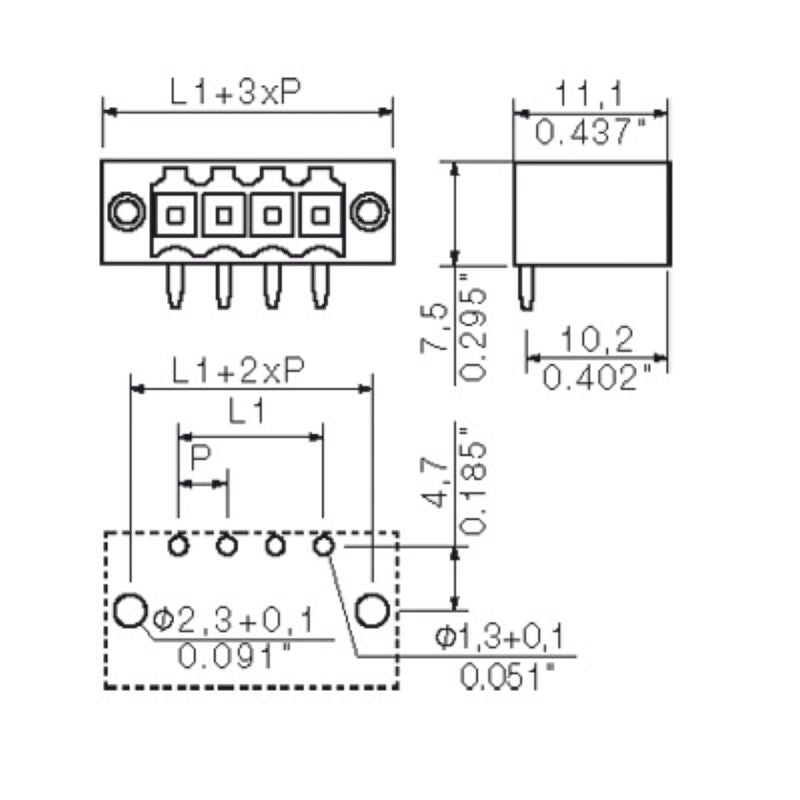

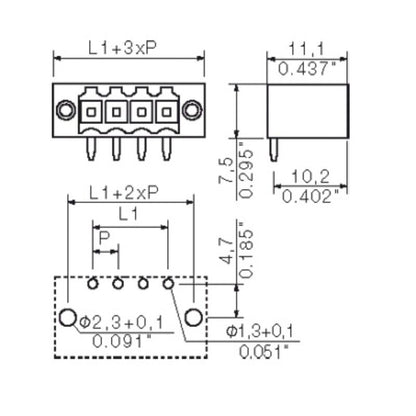

 Dimensions {'Depth': '11.1 mm', 'Height': '10.7 mm', 'Width': '24.5 mm'}
 Material Data {'Insulating Material': 'PBT', 'Contact Base Material': 'CuSn', 'Contact Material': 'Cu-alloy'}
 Temperature Specifications {'Storage Temperature Min': '-40 °C', 'Storage Temperature Max': '70 °C', 'Operating Temperature Min': '-50 °C', 'Operating Temperature Max': '100 °C'}
 Rated Data acc. to IEC {'Rated Current Max (Tu=20°C)': '12 A', 'Rated Voltage (Surge Voltage Class / Pollution Degree II/2)': '320 V', 'Rated Impulse Voltage for Surge Voltage Class/ Pollution Degree II/2': '2,500 V'}
