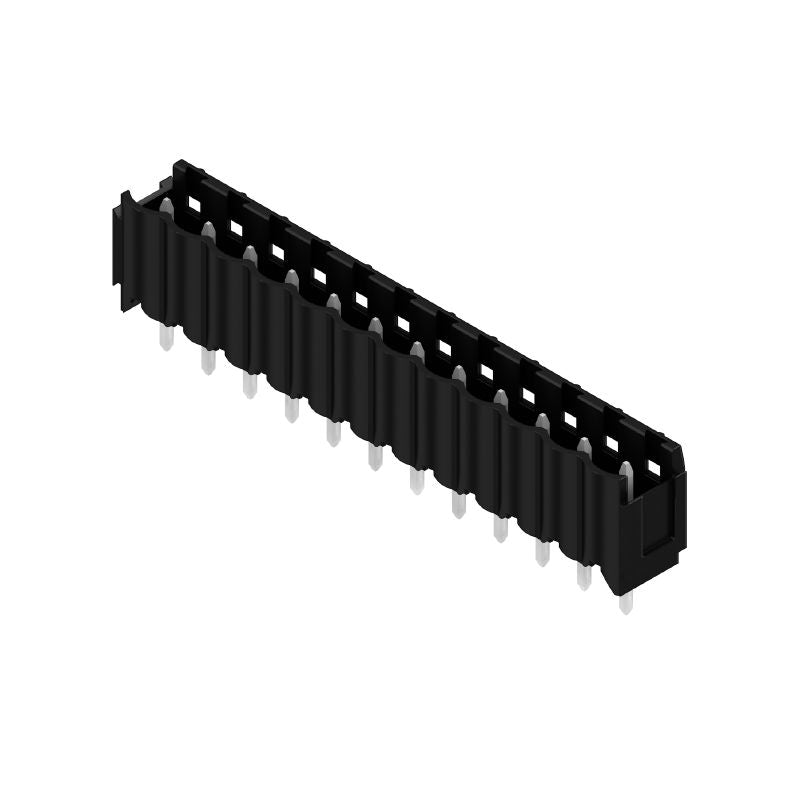

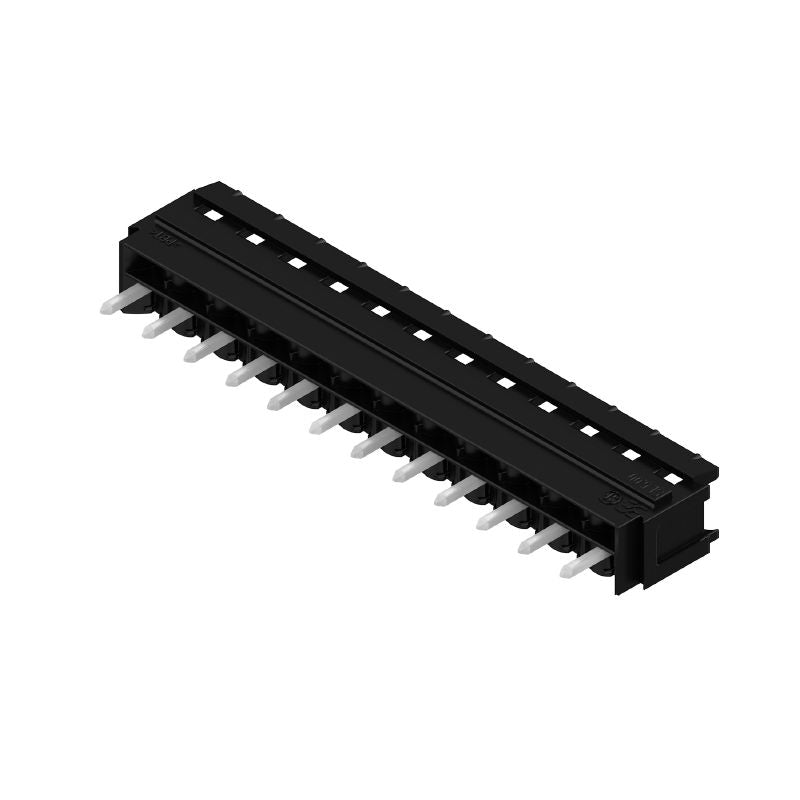

1603310000 - 5mm Pitch Black Male Header PCB Connector, 12 Poles (Pack of 50)

SKU: SKU: 1603310000 Download PDF

Select a Variant:

1603310000 - 5mm Pitch Black Male Header PCB Connector, 12 Poles (Pack of 50)

SET THE QTY:

Now $133.61 Web pricing policy

~~BEFORE $0.00~~ Now $133.61 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

Introducing this reliable PCB plug-in connector, featuring a robust male header design with dovetail features to firmly secure blocks via THT solder connections With a 500 mm pitch and 12 poles, it guarantees solid performance The solder pin length measures 45 mm and comes with a tin finish for enhanced durability This connector is presented in a sleek black color and is conveniently packaged in a box, making it perfect for various applications.

Features and Benefits:

•RoHS compliant without exemptions.

•Finger-safe when unplugged and back-of-hand-safe when plugged.

•Can be coded.

•Capable of handling a rated current of up to 18 A.

•Touch-safe protection according to DIN VDE standards.

Specifications:

IEC Rated Voltage	400 V / 18 A
UL Rated Voltage	300 V / 15 A

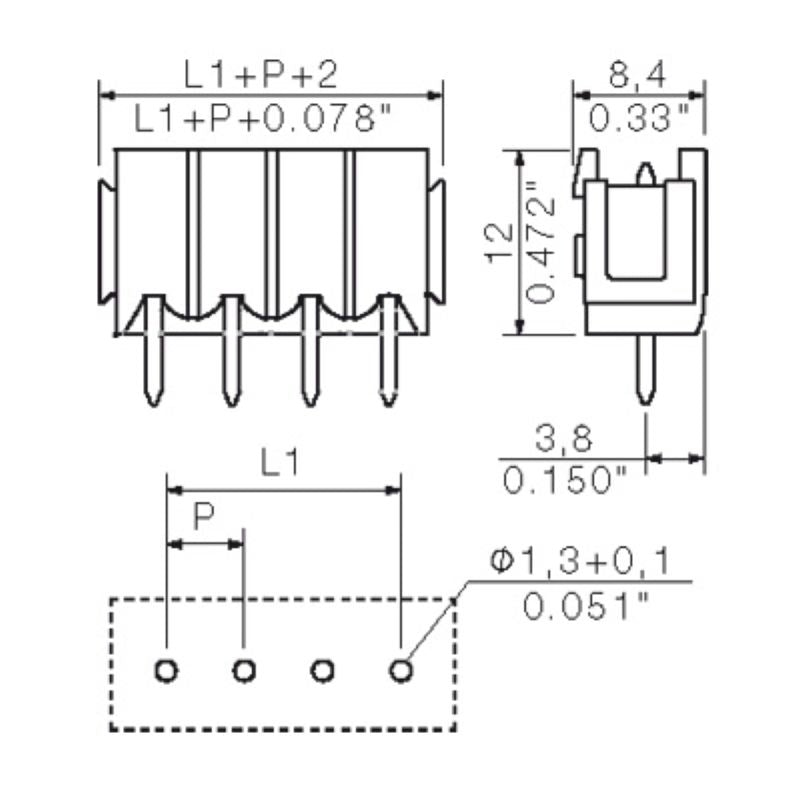

Dimensions	{'Depth': '8.4 mm', 'Height': '16.5 mm', 'Width': '62 mm'}
Storage temperature	{'Min': '-40 °C', 'Max': '70 °C'}
Operating temperature	{'Min': '-50 °C', 'Max': '100 °C'}
Protection degree	IP20
Volume resistance	≤5 mΩ
Material	{'Insulating material': 'PBT', 'Contact material': 'Cu-alloy'}
Number of poles	12
Solder pin dimensions	{'Diameter': '1.2 mm', 'Length': '4.5 mm'}
Rated current	{'Max (Tu=20°C)': '14.5 A', 'Min (Tu=20°C)': '18 A'}
Rated voltage	{'Surge voltage class II/2': '400 V', 'Surge voltage class III/2': '320 V', 'Surge voltage class III/3': '250 V'}
