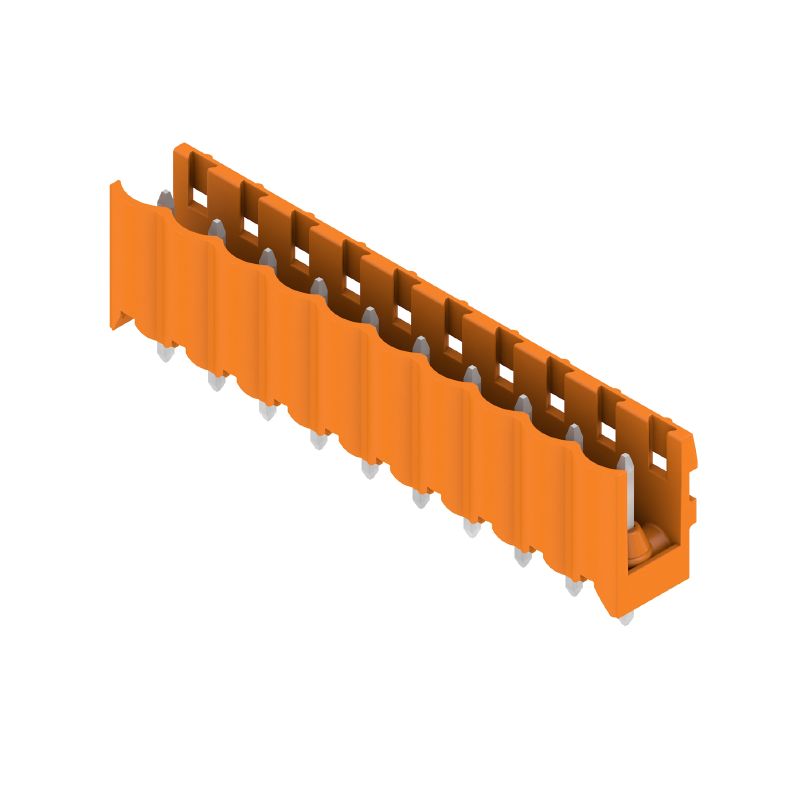

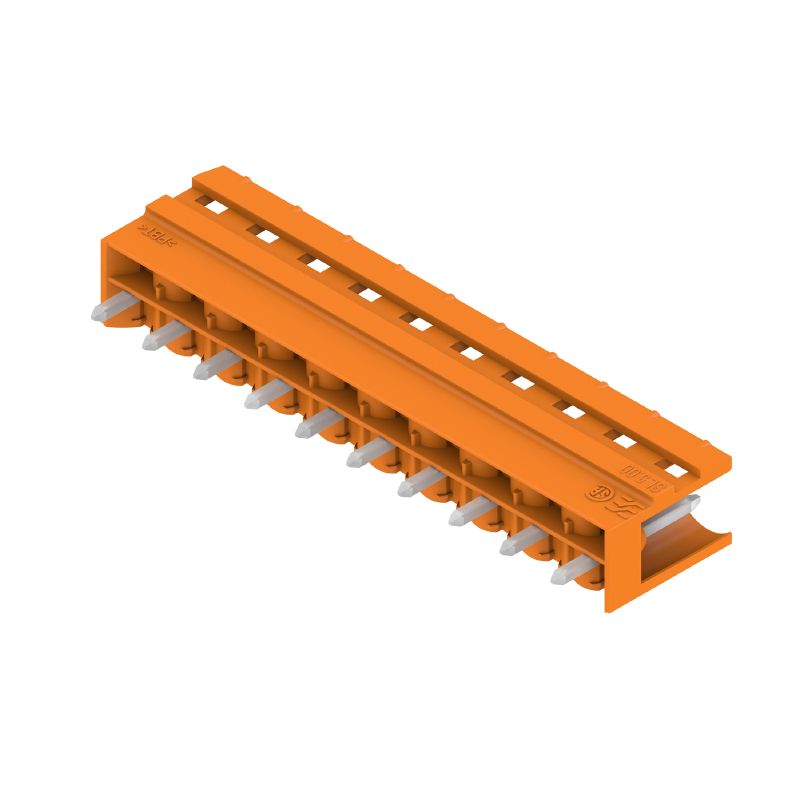

1581400000 - 5mm THT Male Header Connector, 10 Poles, Angled 180° (Pack of 50)

1581400000 - 5mm THT Male Header Connector, 10 Poles, Angled 180° (Pack of 50)

SKU: SKU: 1581400000   Download PDF

Select a Variant:
  • 1581400000 - 5mm THT Male Header Connector, 10 Poles, Angled 180° (Pack of 50)
Qty:
Regular price Now $111.34   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $111.34 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Enhance your electronic projects with this male header PCB plug-in connector featuring an open side design Designed for easy integration, it utilizes through-hole (THT) solder connections with a spacing of 500 mm between pins With 10 poles arranged at a 180° angle, this connector has solder pin lengths of 32 mm, making it a reliable choice for your applications Encased in a vibrant orange box, it meets various approval standards, ensuring both quality and compliance.

Features and Benefits:

    •Finger-safe when unplugged and back-of-hand-safe when plugged.

    •Can be coded.

    •Available in an environmentally compliant design.

    •Used for board connections in various electronic assemblies.

Specifications:

 Rated voltage (IEC) 400 V / 18 A
 UL rated voltage 300 V / 15 A
 Number of solder pins per pole 1
 Solder pin diameter 1.2 mm
 Pitch 5 mm
 IP protection degree IP20
 Operating temperature range -50 °C to 100 °C
 Storage temperature range -40 °C to 70 °C
 Material PBT
 Contact material Cu-alloy
 Insulating material group IIIa
 Flammability rating V-0
