1515300000 - 3-Pole 3.50mm PCB Connector, 180° Angle, UL & RoHS Approved (Pack of 174)

1515300000 - 3-Pole 3.50mm PCB Connector, 180° Angle, UL & RoHS Approved (Pack of 174)

SKU: SKU: 1515300000   Download PDF

Select a Variant:
  • 1515300000 - 3-Pole 3.50mm PCB Connector, 180° Angle, UL & RoHS Approved (Pack of 174)
Qty:
Regular price Now $438.88   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $438.88 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

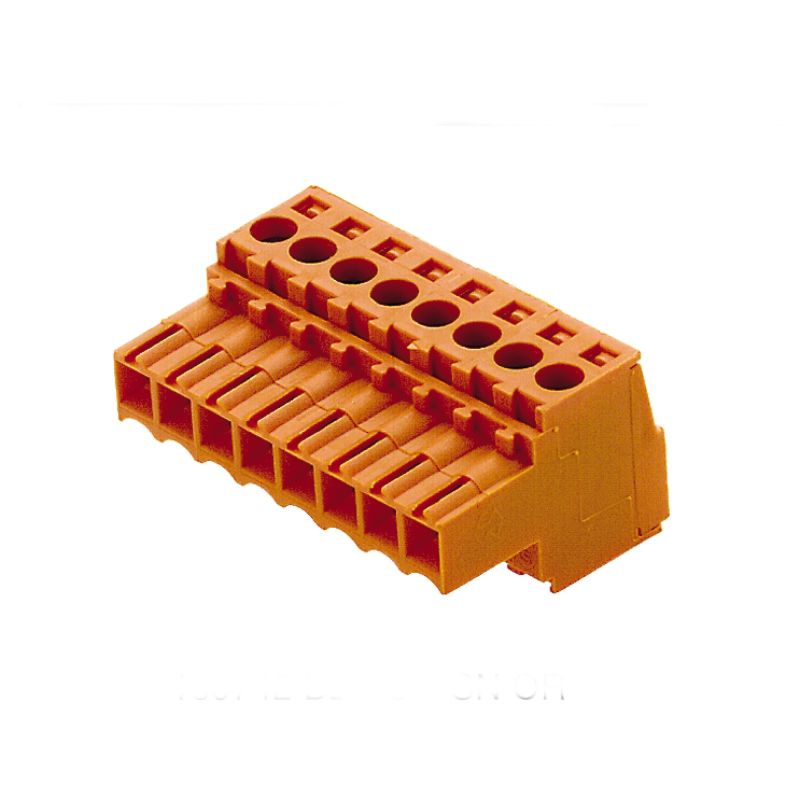

Discover the versatility of this PCB plug-in connector, expertly crafted with a female plug and a 350 mm pitch, featuring three poles arranged at a 180° angle It utilizes a clamping yoke connection, accommodating wires with a maximum gauge of 15 mm² Approved for compliance with both RoHS and UL standards, this connector offers reliability and safety Each unit is conveniently packaged in a box for easy storage or transport.

Features and Benefits:

    •RoHS compliant without exemption.

    •Can be coded.

    •Safe from finger touch according to DIN VDE 57 106.

    •IP20 safety rating when fully mounted.

    •Suitable for fine-wired conductors up to 1.5 mm².

    •Plugging cycles rated for 25 uses.

Specifications:

 Rated Voltage (IEC): 320 V

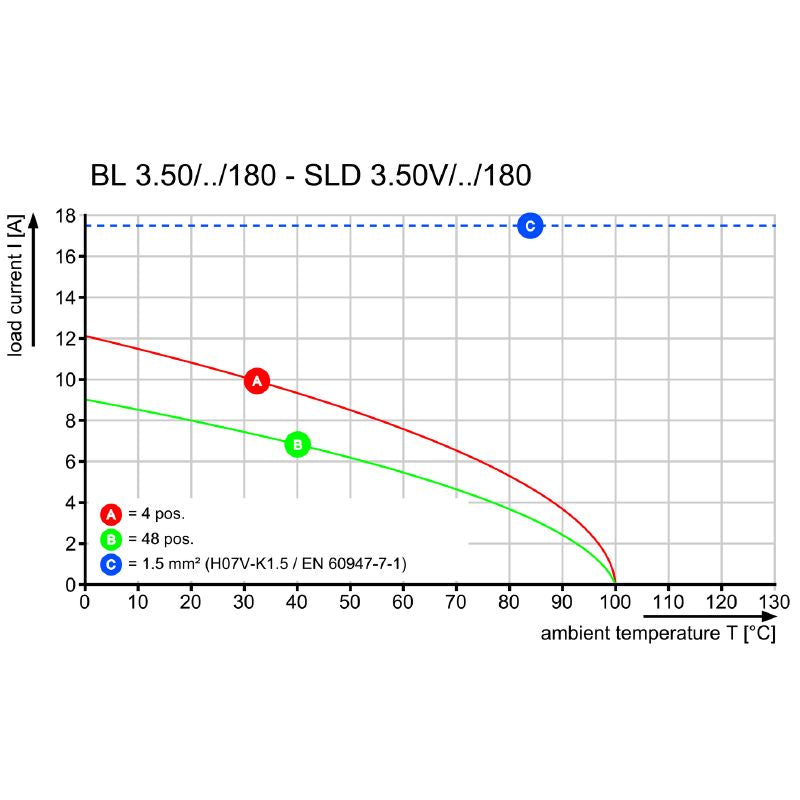

 Rated Current (IEC): 17 A
 Depth: 18.5 mm
 Height: 13 mm
 Width: 10.5 mm
 Material: PBT insulating material
 Color: black
 Operating Temperature Min: -50 °C
 Operating Temperature Max: 100 °C
 Clamping Range Min: 0.08 mm²
 Clamping Range Max: 1.5 mm²
 Wire Connection Method: Clamping yoke connection
 Number of Poles: 3
 Volume Resistance: ≤5 mΩ
