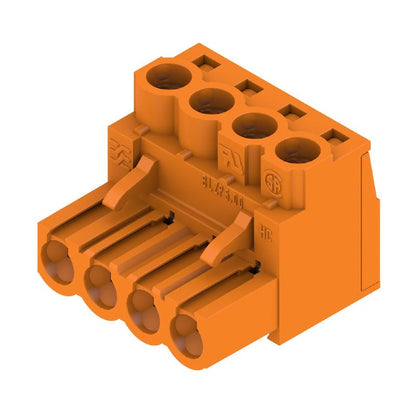

1490960000 - 5.00mm PCB Female Connector, 4 Poles, 180° Clamping (Pack of 90)

SKU: SKU: 1490960000 Download PDF

Select a Variant:

1490960000 - 5.00mm PCB Female Connector, 4 Poles, 180° Clamping (Pack of 90)

SET THE QTY:

Now $275.05 Web pricing policy

~~BEFORE $0.00~~ Now $275.05 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

Discover this reliable PCB plug-in connector, designed with a 500 mm pitch and featuring four poles arranged in a 180° configuration It employs a clamping yoke connection, suitable for field connections, with a maximum clamping range of 331 mm² Each connector is packaged securely in a box and meets ROHS standards, earning certification under file number E60693 by UL, ensuring high quality and compliance for your projects.

Features and Benefits:

•4 poles with a 180° connection.

•Clamping yoke connection method.

•Compliant with ROHS.

•Insulating material made of PBT.

•Touch-safe protection according to DIN standards.

•Can be coded.

Specifications:

IEC	400 V / 19 A / 0.2 - 4 mm²
UL	300 V / 15 A / AWG 26 - AWG 12

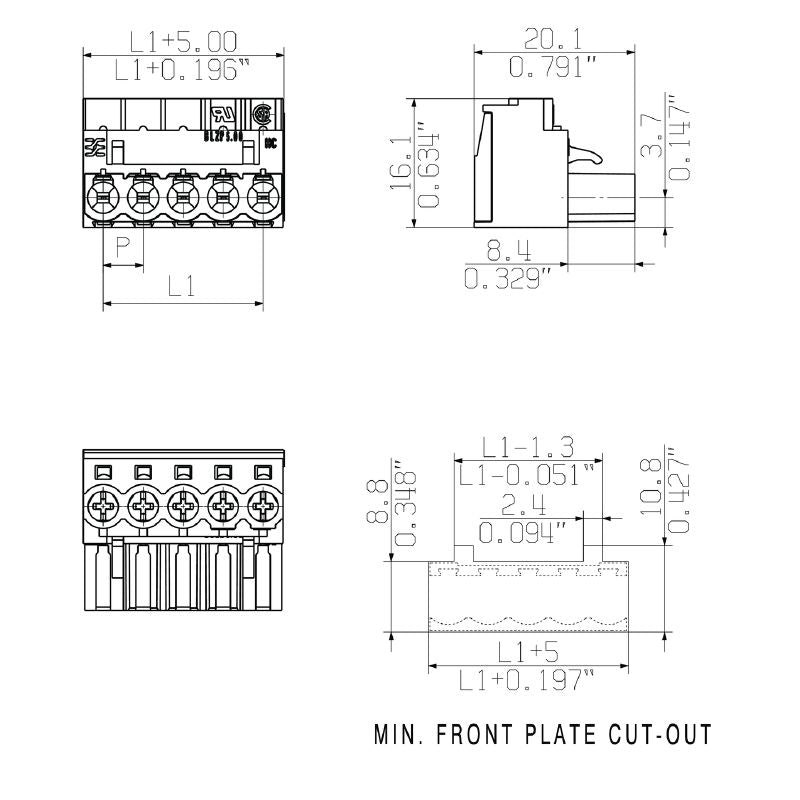

Dimensions	{'Depth': '20.1 mm', 'Height': '16 mm', 'Width': '20 mm'}
Pitch	5 mm
Number of poles	4
Rated cross-section	2.5 mm²
Volume resistance	≤5 mΩ
Insulation resistance	≥ 10^8 Ω

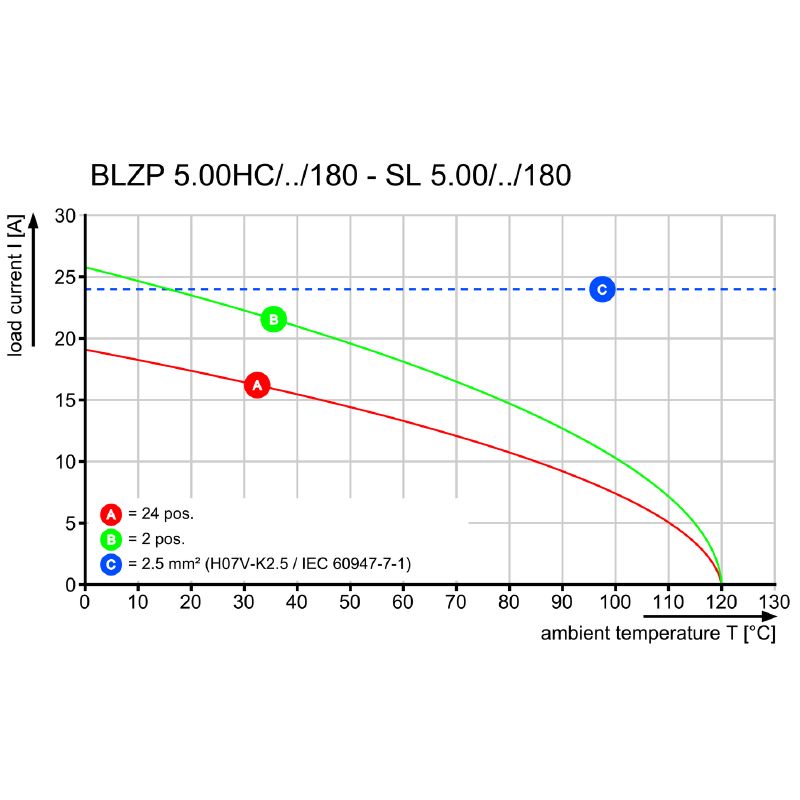

Rated current	{'min': '19 A', 'max': '18 A'}
Rated voltage	{'surge voltage class II/2': '400 V', 'surge voltage class III/2': '320 V', 'surge voltage class III/3': '250 V'}
