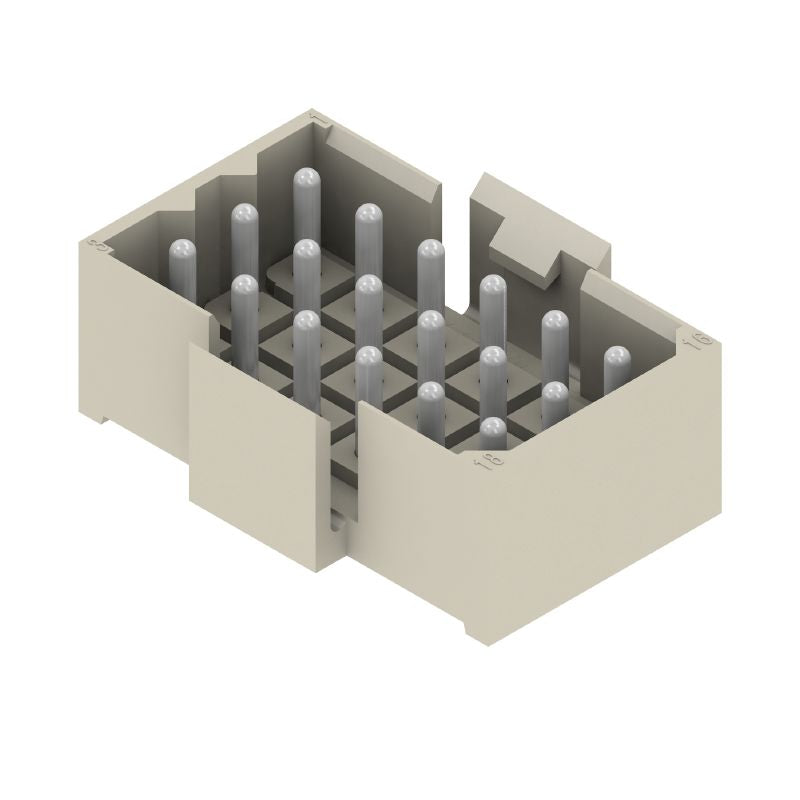

1444500000 - 18-Pole Male PCB Connector, 5mm Pitch, Pebble Grey (Pack of 25)

1444500000 - 18-Pole Male PCB Connector, 5mm Pitch, Pebble Grey (Pack of 25)

SKU: SKU: 1444500000   Download PDF

Select a Variant:
  • 1444500000 - 18-Pole Male PCB Connector, 5mm Pitch, Pebble Grey (Pack of 25)
Qty:
Regular price Now $575.18   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $575.18 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Experience reliability with this male header PCB plug-in connector, designed for robust connections with its closed side layout and through-hole (THT) soldering functionality Featuring a 500 mm pin pitch, it supports up to 18 poles configured at 180° The solder pins are tinned and measure 32 mm in length, ensuring secure attachment Presented in an elegant pebble grey color, each connector comes conveniently packaged in a box, making it an excellent choice for your electronic projects.

Features and Benefits:

    •Compliant with RoHS.

    •Touch-safe protection according to DIN VDE standards.

    •Can be coded for secure connections.

    •Compact design for PCB applications.

    •Board connection in electronic applications.

    •Signal transmission.

Specifications:

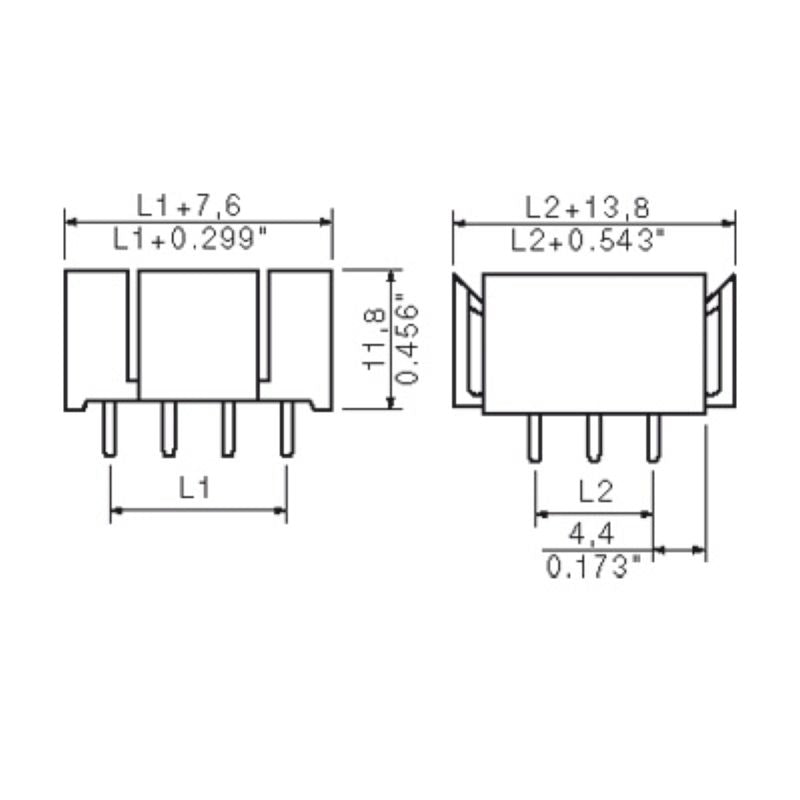

 Dimensions 32.6 mm depth, 11.8 mm height, 23.8 mm width
 Solder pin diameter 0.97 mm
 Operating temperature -50 °C to 100 °C
 Storage temperature -40 °C to 70 °C
 Number of solder pins per pole 1
 Touch-safe protection IP20 plugged
 Rated voltage for surge voltage class II/2 500 V
 Rated current (max. number of poles at 20°C) 10 A
 Insulating material PA 66/6
 Contact material Cu-alloy
 UL 94 flammability rating V-0
