1443900000 - 12-Pole Flanged PCB Connector, 5mm Pitch, Pebble Grey (Pack of 25)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

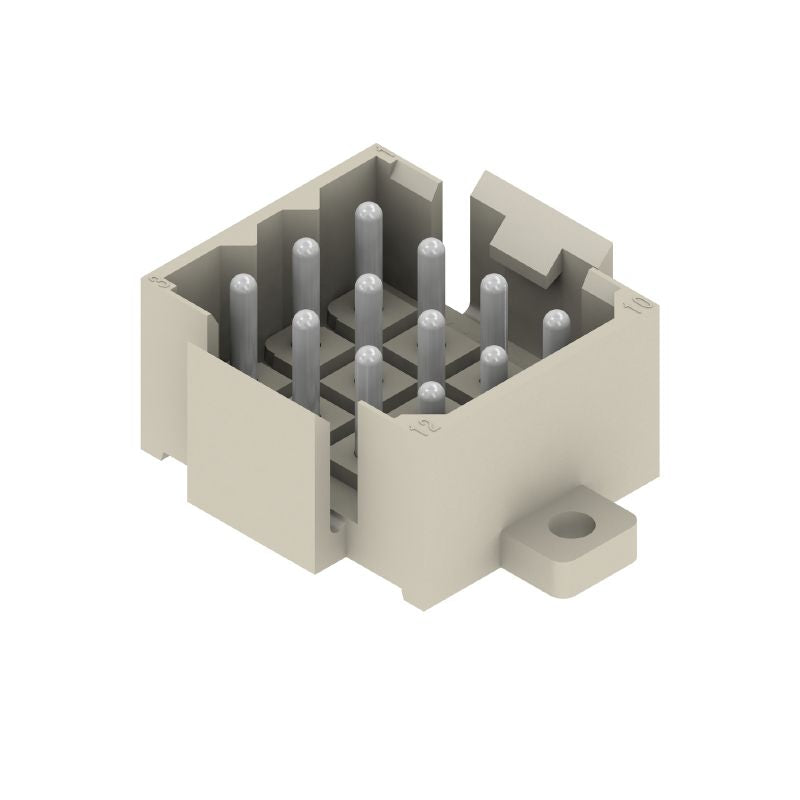

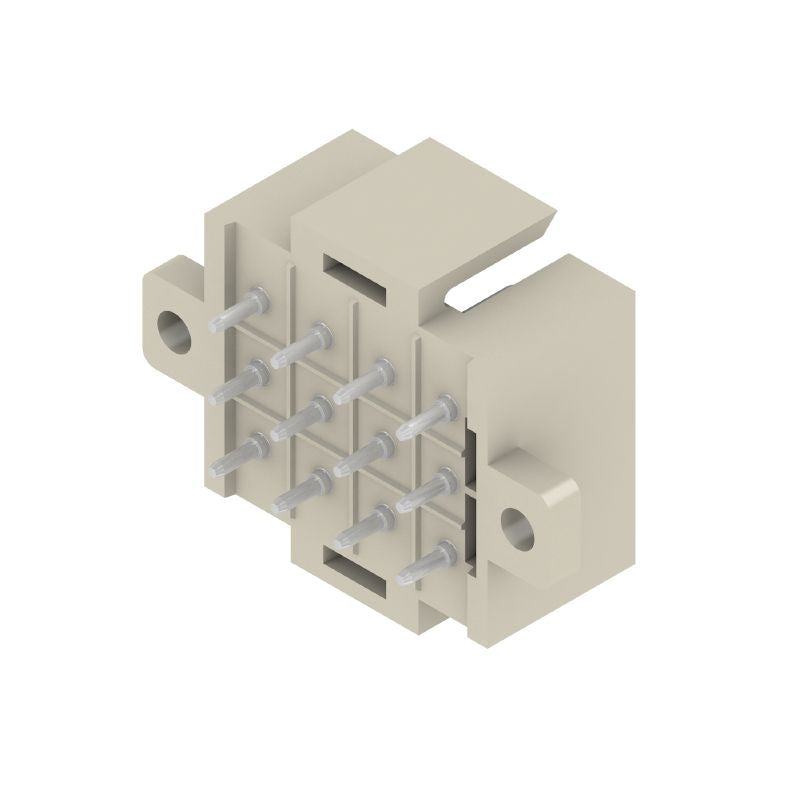

This male header PCB plug connector is engineered for reliability with its flange design and is intended for Through-Hole Technology (THT) soldering at a pitch of 500 mm It features 12 poles arranged at a precise 180° angle, along with solder pin lengths of 32 mm, all protected with a tin coating The connector is presented in a stylish pebble grey color and comes packaged in a box for easy storage Rated to handle a voltage of 500 V and a current of 14 A in accordance with IEC standards, it also carries UL certifications for a voltage of 300 V and a current of 10 A, ensuring excellent performance and safety in a variety of applications.

Features and Benefits:

•Board connection.

•Can be coded.

•Touch-safe protection according to DIN VDE standards.

•Safe from finger touch, when plugged in.

Specifications:
