1442600000 - 9-Pole 5mm Pitch PCB Connector, Gold-Plated Pins, Grey (Pack of 50)

1442600000 - 9-Pole 5mm Pitch PCB Connector, Gold-Plated Pins, Grey (Pack of 50)

SKU: SKU: 1442600000   Download PDF

Select a Variant:
  • 1442600000 - 9-Pole 5mm Pitch PCB Connector, Gold-Plated Pins, Grey (Pack of 50)
Qty:
Regular price Now $931.84   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $931.84 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

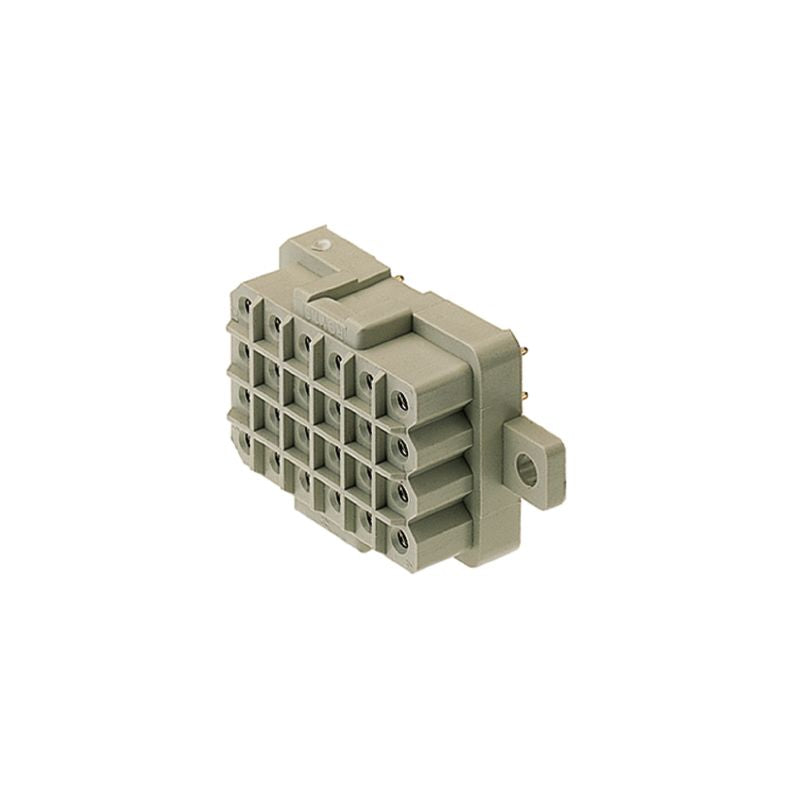

Introducing the RSV1,6 LBF9 GR 3,2 AU, an expertly engineered PCB plug-in connector tailored for through-hole soldering This female header connector is designed with a 500 mm pitch and features 9 pins configured at a 180° angle The solder pins boast a gold-plated finish with lengths of 32 mm, ensuring reliable performance Presented in a stylish pebble grey, this connector is packaged securely in a box.

It meets RoHS standards and is backed by a UL certificate number E92202, guaranteeing quality and compliance for your electronic projects.

Features and Benefits:

    •Compliant with RoHS regulations.

    •Gold-plated solder pins for improved conductivity.

    •Touch-safe protection according to DIN VDE standards.

    •Can be coded for secure connections.

    •Designed for easy PCB mounting.

    •Reliable performance across a wide temperature range.

Specifications:

 Approval UL: 300 V / 10 A, IEC: 500 V / 14 A
 Number of poles 9
 Pitch 5 mm

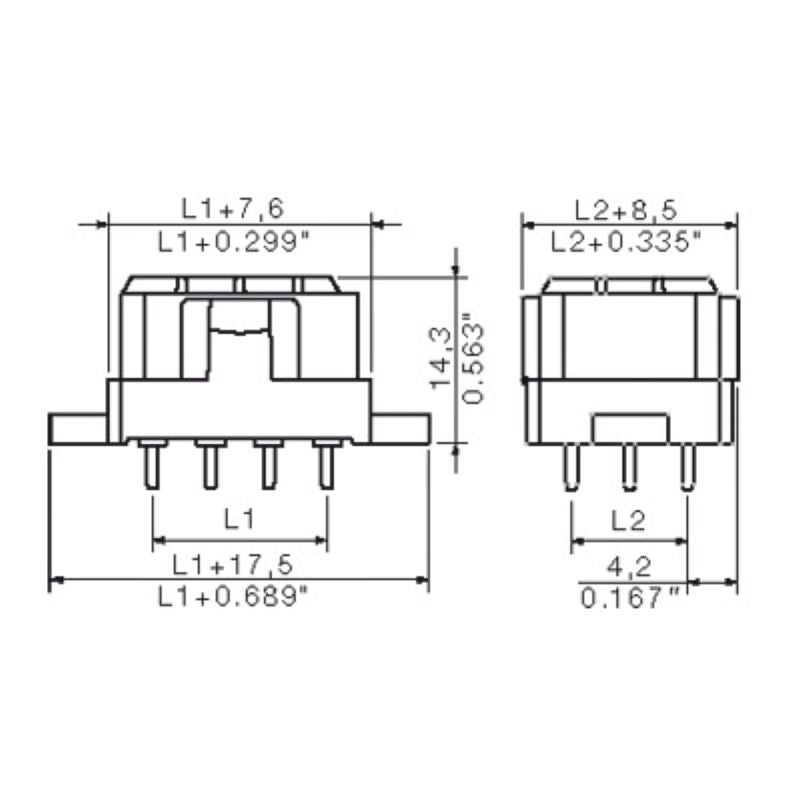

 Height 14.3 mm
 Width 23.8 mm
 Depth 17.6 mm
 Operating temperature range -50 °C to 100 °C
 Storage temperature range -40 °C to 70 °C
 Solder pin length 3.2 mm
 Solder pin diameter 0.97 mm
 Insulating material PA 66/6
 Contact material Cu-alloy
 Contact surface Gold-plated

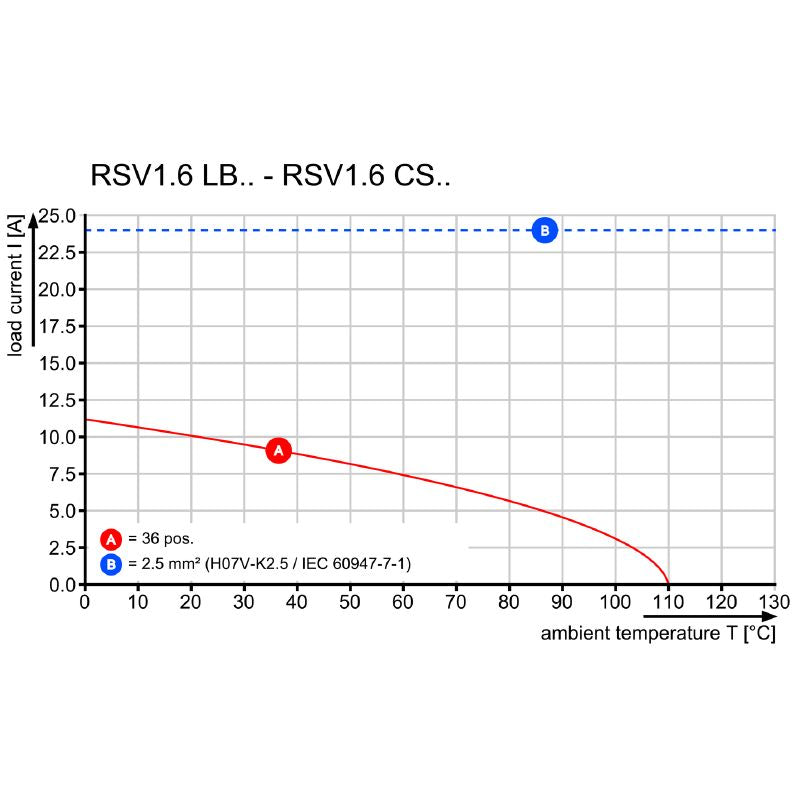

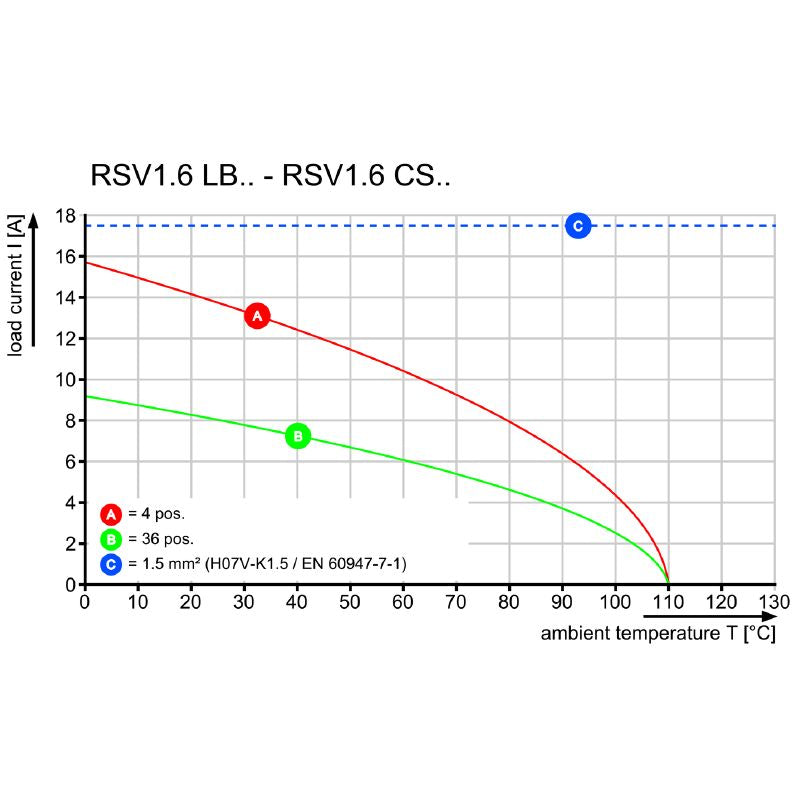

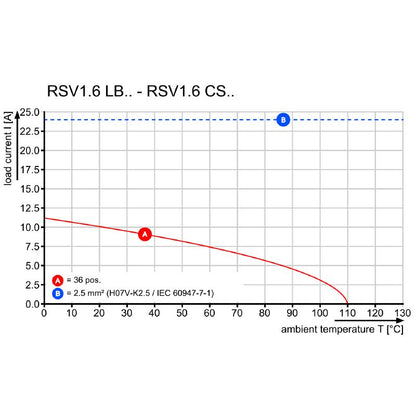

 Rated current (min, Tu=20°C) 14 A
 Rated voltage (surge voltage class II/2) 500 V
