1413100000 - 5mm Pitch Male PCB Connector with 4 Poles, RoHS Compliant (Pack of 25)

SKU: SKU: 1413100000 Download PDF

Select a Variant:

1413100000 - 5mm Pitch Male PCB Connector with 4 Poles, RoHS Compliant (Pack of 25)

SET THE QTY:

Now $55.41 Web pricing policy

~~BEFORE $0.00~~ Now $55.41 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

Discover the robust PCB plug-in connector, designed with a male plug and a 500 mm pitch featuring four poles arranged at 180° This connector employs a reliable crimping method and accommodates a maximum clamping range of 331 mm² Additionally, it adheres to RoHS regulations, making it a compliant choice for your electronic projects.

Features and Benefits:

•Field connection type.

•Can be coded.

•Touch-safe protection according to DIN VDE 57 106.

•Touch-safe protection according to DIN VDE 0470.

•Stripping length of 4 mm.

•Maximum plugging cycles of 25.

•Insulating material made of PA 66/6.

•Compliant with international standards.

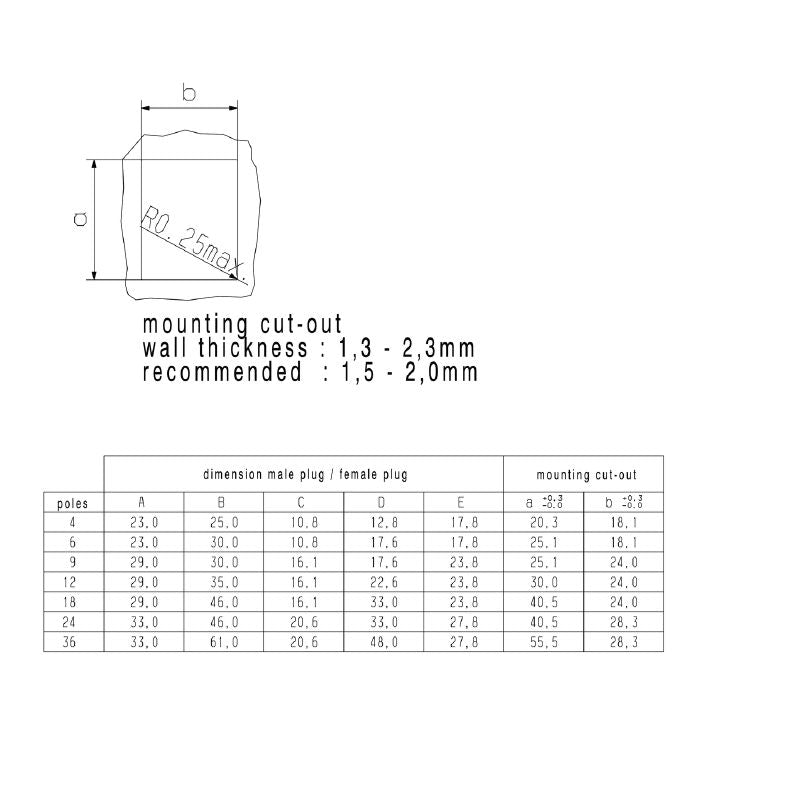

Specifications:

Depth	23 mm
Height	27 mm
Width	25 mm
Net weight	5 g
Rated voltage	{'IEC': '630 V / 17 A', 'UL': '600 V / 10 A / AWG 26 - AWG 12'}
Operating temperature (min)	-50 °C
Operating temperature (max)	100 °C
Storage temperature (min)	-40 °C
Storage temperature (max)	70 °C
Pitch	5 mm
Number of poles	4
Conductor outlet direction	180°
Stripping length	4 mm
Clamping range (min)	0.13 mm²
Clamping range (max)	3.31 mm²
Rated current	{'min (Tu=20°C)': '17 A', 'max (Tu=20°C)': '13 A', 'min (Tu=40°C)': '15 A', 'max (Tu=40°C)': '11.5 A'}
Contact material	Cu-alloy
Insulating material group	I
Comparative Tracking Index (CTI)	≥ 600
UL 94 flammability rating	V-0
