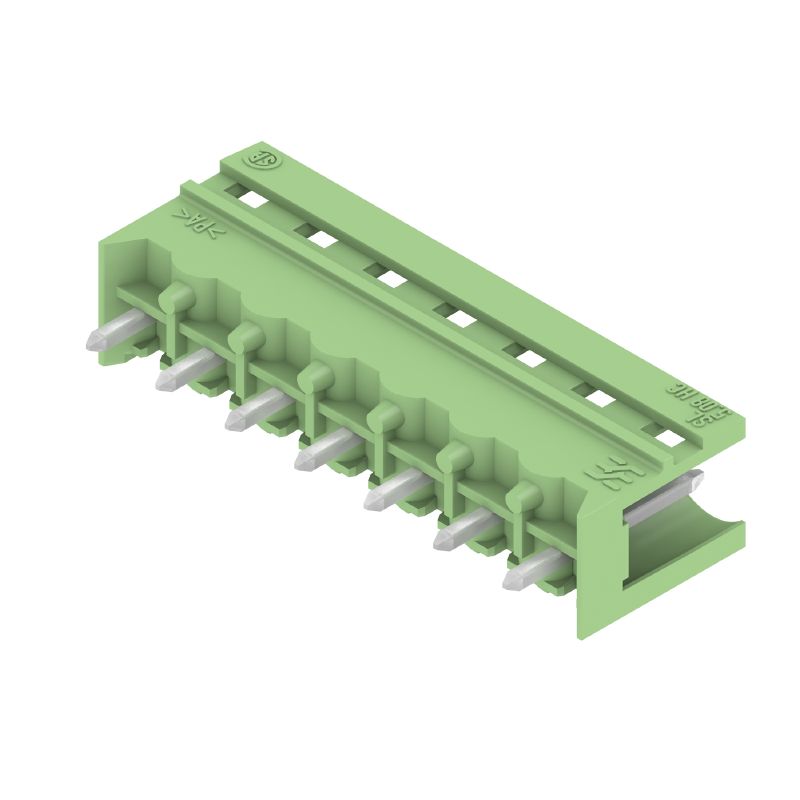

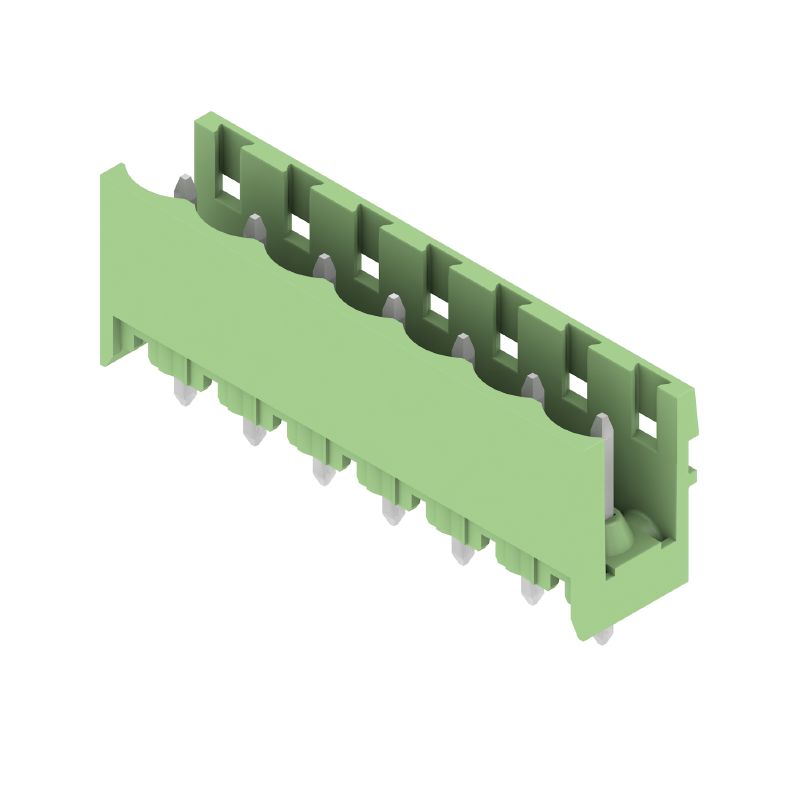

1401840000 - 7-Pole 5.08mm PCB Connector, THT Plug-in, Pale Green (Pack of 50)

1401840000 - 7-Pole 5.08mm PCB Connector, THT Plug-in, Pale Green (Pack of 50)

SKU: SKU: 1401840000   Download PDF

Select a Variant:
  • 1401840000 - 7-Pole 5.08mm PCB Connector, THT Plug-in, Pale Green (Pack of 50)
Qty:
Regular price Now $77.27   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $77.27 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Introducing a reliable PCB plug-in connector featuring a male header, designed for seamless integration This connector boasts a Through-Hole (THT) solder connection and is engineered with a 508 mm pitch, allowing for a configuration of 7 poles at a 180° orientation The solder pin has a length of 32 mm and is finished in a tinned coating Finished in a subtle pale green hue, this connector comes conveniently packaged in a box for easy storage and transport.

Perfect for your electronic assembly needs!.

Features and Benefits:

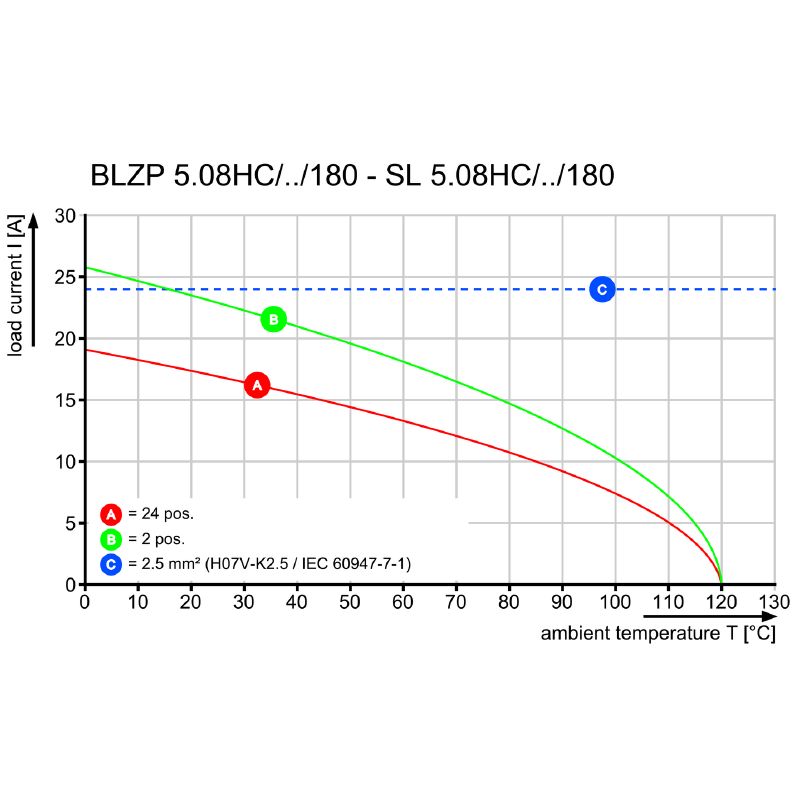

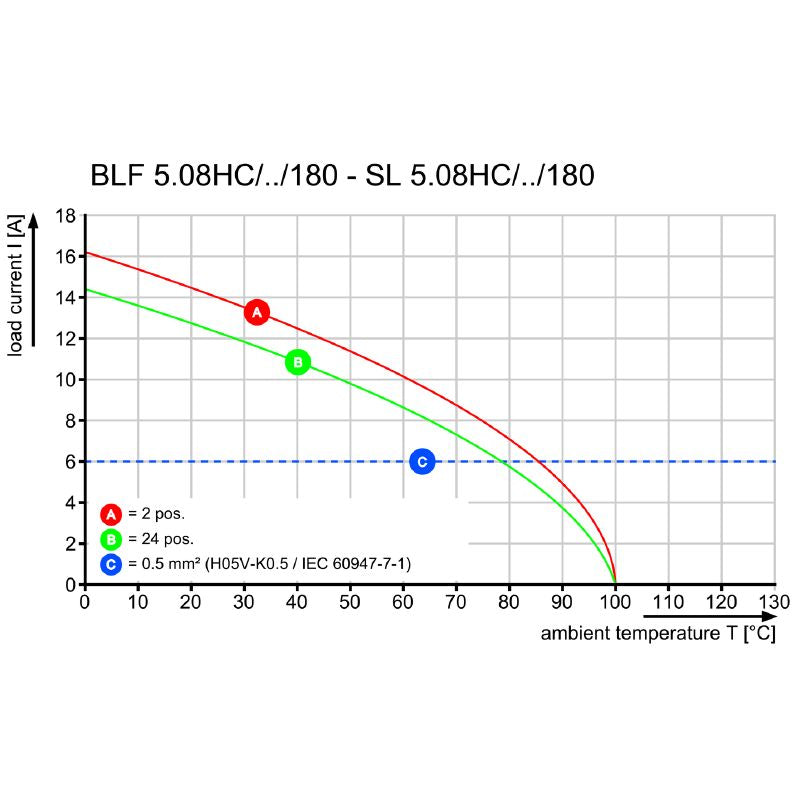

    •IEC: 400 V / 24 A.

    •UL: 300 V / 18.5 A.

    •Touch-safe protection according to DIN VDE 57 106.

    •Can be coded.

    •Plugging cycles: 25.

    •Pulling force per pole: max. 7.5 N.

Specifications:

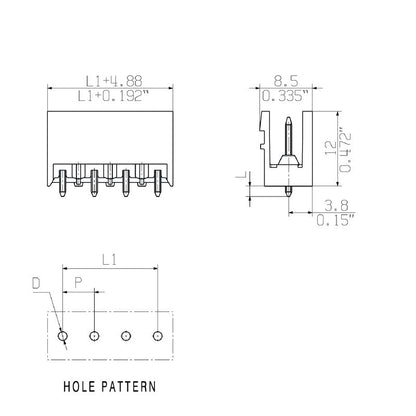

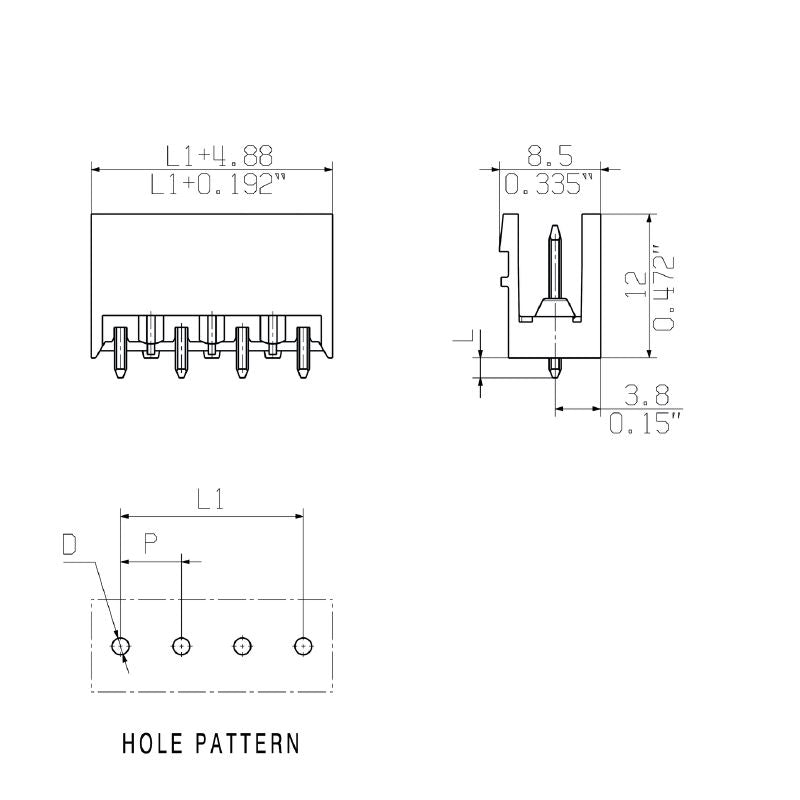

 Depth (mm) 8.43
 Height (mm) 15.2
 Width (mm) 35.36
 Solder pin length 3.2 mm
 Number of poles 7
 Insulating material PA GF
 Rated voltage 300 V
 Storage temperature, min -40 °C
 Storage temperature, max 70 °C
 Operating temperature, min -50 °C
 Operating temperature, max 100 °C
 Volume resistance ≤5 mΩ
 Protection degree IP20
 Comparative Tracking Index (CTI) ≥ 550
 UL 94 flammability rating V-0
