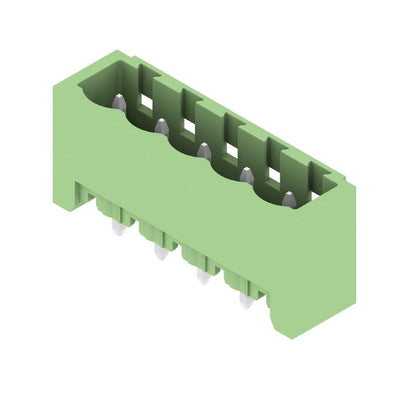

1397380000 - 5-Pole 5.08mm PCB Male Header Connector with 180-Degree Elbow (Pack of 50)

1397380000 - 5-Pole 5.08mm PCB Male Header Connector with 180-Degree Elbow (Pack of 50)

SKU: SKU: 1397380000   Download PDF

Select a Variant:
  • 1397380000 - 5-Pole 5.08mm PCB Male Header Connector with 180-Degree Elbow (Pack of 50)
Qty:
Regular price Now $55.69   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $55.69 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

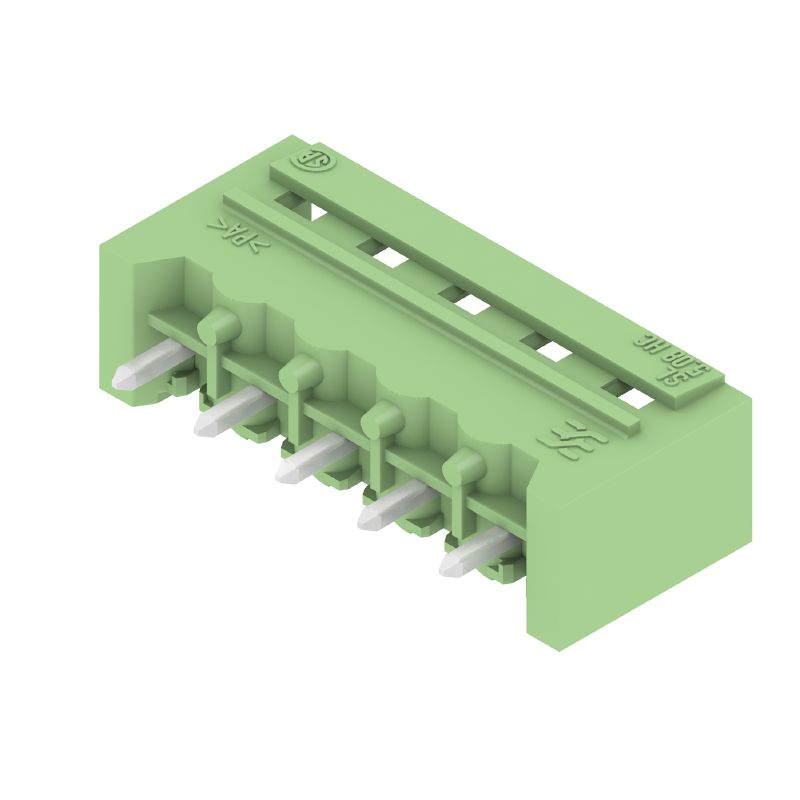

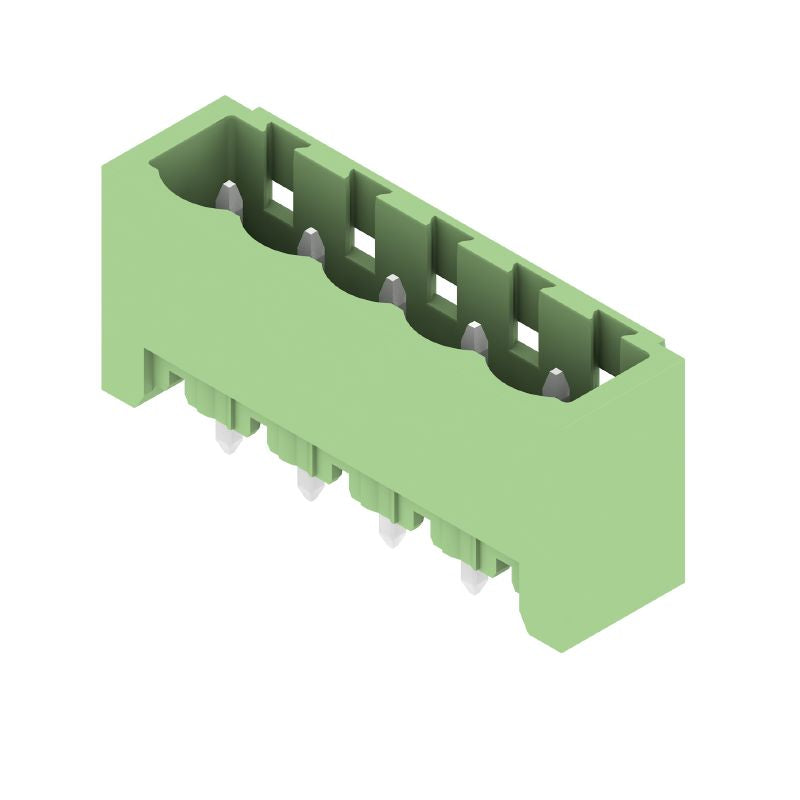

Introducing a versatile PCB plug-in connector tailored for your needs This male header is crafted with a closed side and utilizes a THT solder connection for reliable service It boasts a 508 mm pitch and supports 5 poles, allowing for flexible connection options The 180-degree elbow design adds to its functionality, while the solder pin length is 32 mm, finished in a pale green tint for enhanced visibility.

For safe and convenient storage, the connector is packaged in a sturdy box, ensuring it reaches you in perfect condition.

Features and Benefits:

    •Compliant with RoHS standards.

    •Touch-safe protection as per DIN VDE standards.

    •Solder eyelet hole diameter of 1.4 mm.

    •Can be coded.

    •Endures up to 25 plugging cycles.

Specifications:

 IEC Rating 400 V / 24 A
 UL Rating 300 V / 18.5 A

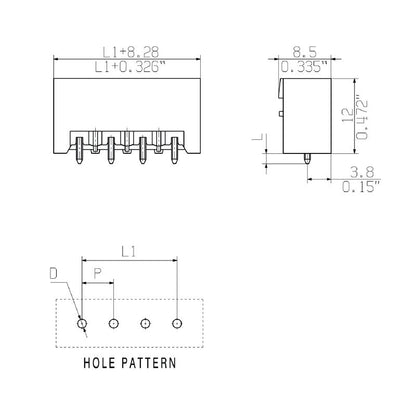

 Depth 8.43 mm
 Height 15.2 mm
 Width 28.6 mm
 Volume resistance ≤5 mΩ
 Solder pin dimensions d = 1.2 mm
 Operating temperature -50 to 100 °C
 Storage temperature -40 to 70 °C
 Insulating material PA GF
 Contact material Cu-alloy

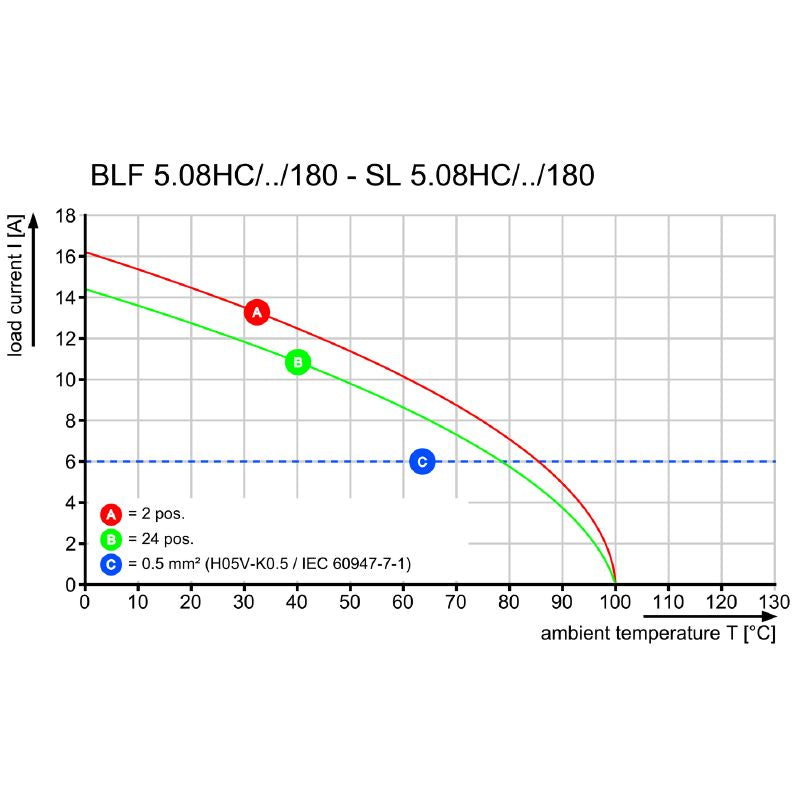

 Rated current (Tu=20°C) 24 A
 Rated current (Tu=40°C) 21 A
 Plugging force per pole 10 N
 Pulling force per pole 7.5 N
