1368910000 - 5.08mm PCB Female Connector, 180-Degree, 24A, Push-In Terminals (Pack of 120)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

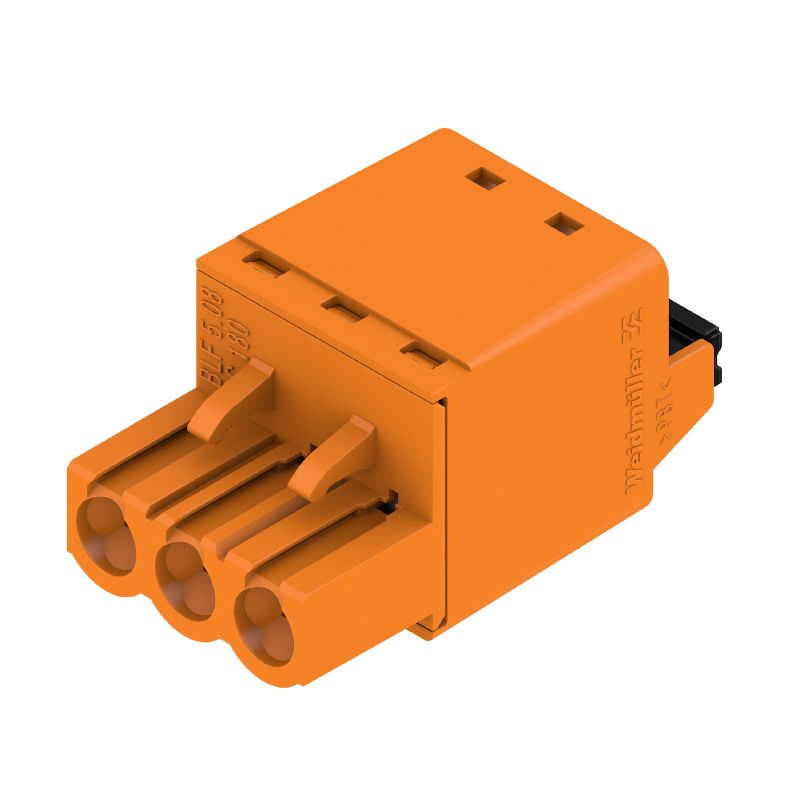

Introducing the BLF 508HC/03/180 SN YL BX SO female plug-in connector, specifically engineered for PCB applications With a 508 mm pitch and a unique 180-degree connection, this connector is built to handle electrical demands with a capacity of up to 24 A and 400 V in accordance with IEC standards The push-in terminal connection method, which operates without an actuator, allows for easy and efficient wiring, accommodating wire cross-sections ranging from 0.

2 mm² to 25 mm² Perfect for a wide range of electrical uses, this connector combines practicality and reliability.

Features and Benefits:

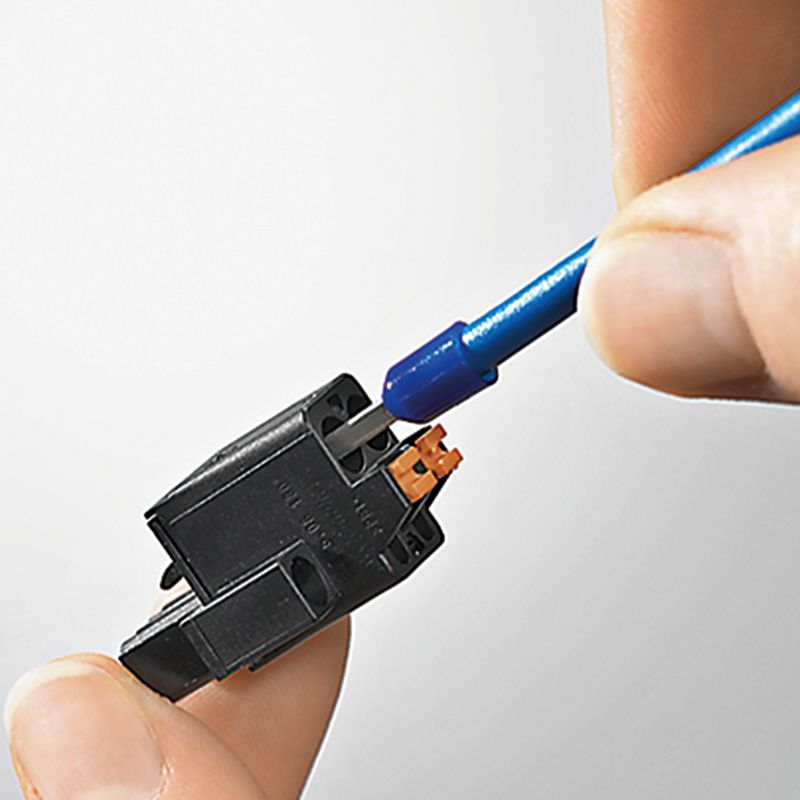

•Field connection type with a push-in method.

•Touch-safe protection per DIN VDE standards.

•Can be coded to prevent misengagement.

•Rated for high current up to 24 A.

Specifications:
