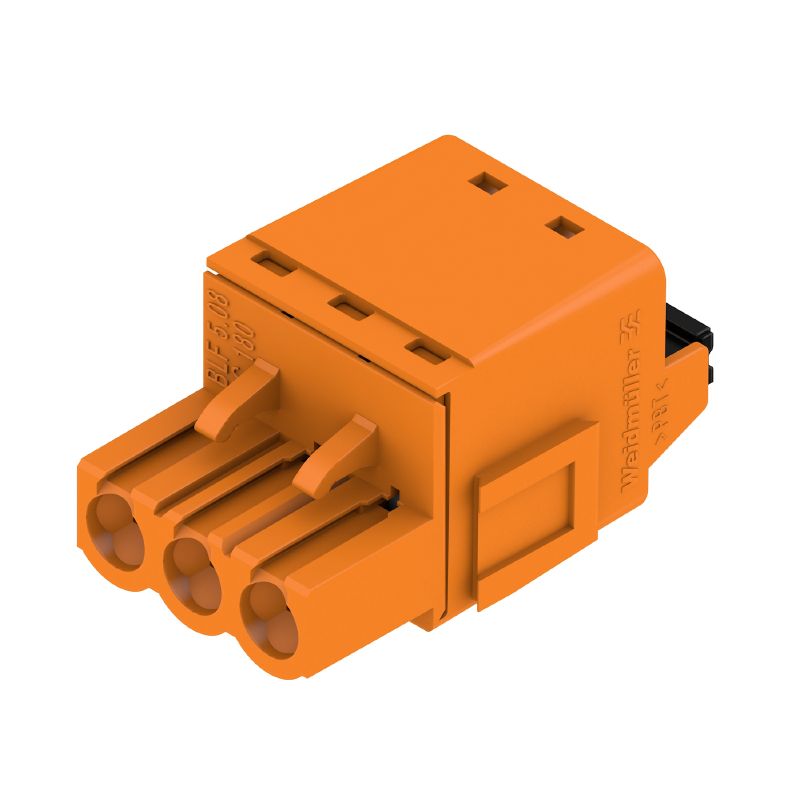

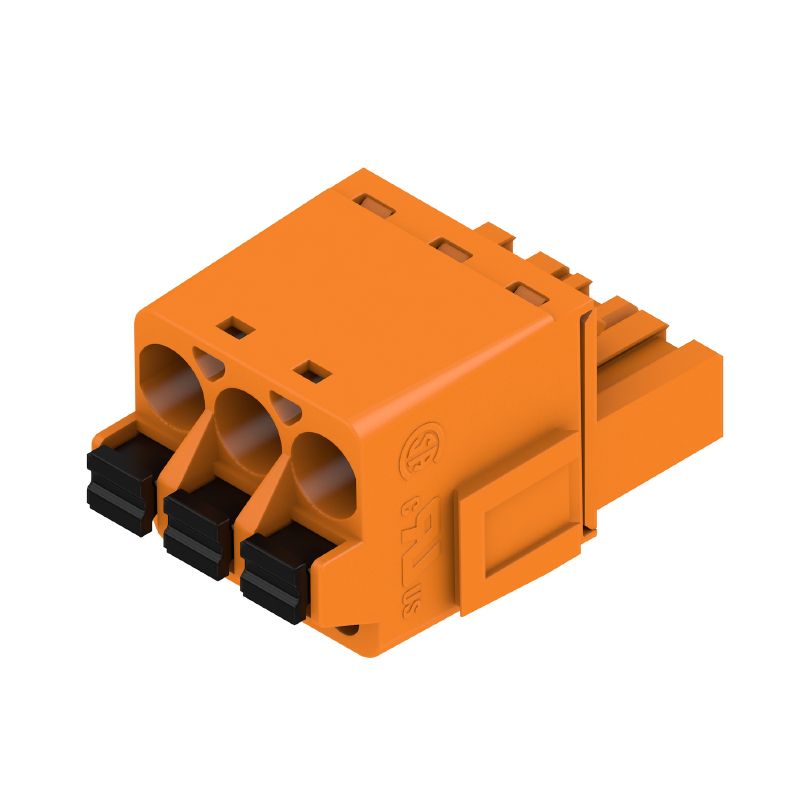

1368820000 - 5.08mm Female PCB Connector with 3 Poles, 180° Angle (Pack of 102)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the BLF 508HC/03/180B SN OR BX, a reliable PCB plug-in connector designed with a female plug configuration and a 508 mm pitch This connector features three poles and allows for a versatile 180° connection, employing a convenient PUSH IN method aided by an actuator It supports a maximum clamping range of 331 mm² and adheres to RoHS compliance standards Additionally, it carries UL approval, certified under number E60693.

Each box contains 102 units, making it an excellent option for both manufacturing and repair needs.

Features and Benefits:

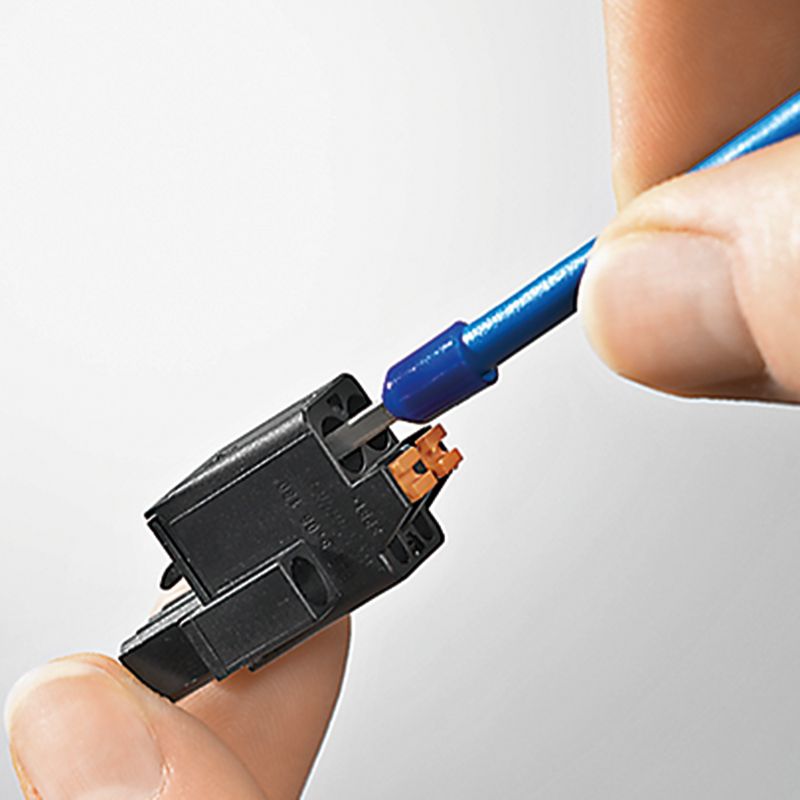

•PUSH IN wire connection method.

•Touch-safe protection according to DIN VDE standards.

•Can be coded for secure connections.

•Material conforms to standard insulating requirements.

•Multiple connection configurations for fine-wired conductors.

Specifications:
