1358940000 - 3.50mm PCB Connector, 14 Poles, 180° Elbow (Pack of 175)

1358940000 - 3.50mm PCB Connector, 14 Poles, 180° Elbow (Pack of 175)

SKU: SKU: 1358940000   Download PDF

Select a Variant:
  • 1358940000 - 3.50mm PCB Connector, 14 Poles, 180° Elbow (Pack of 175)
Qty:
Regular price Now $706.32   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $706.32 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

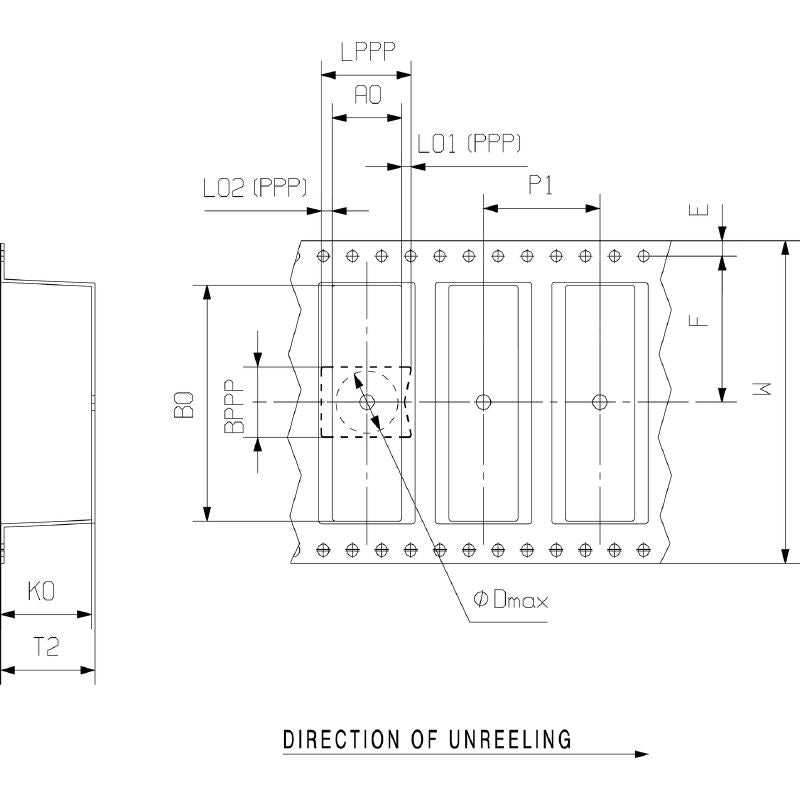

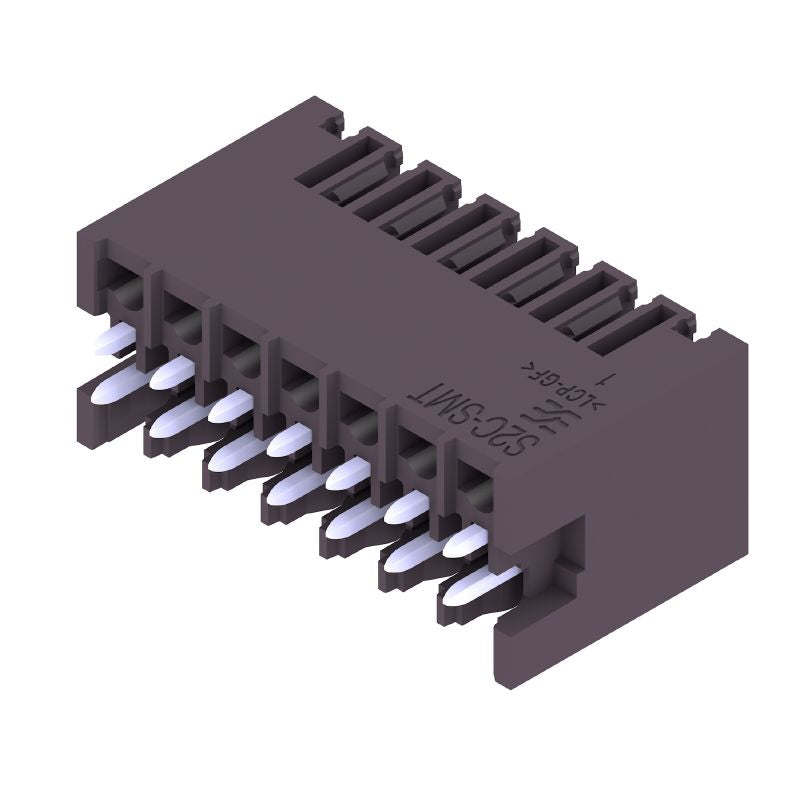

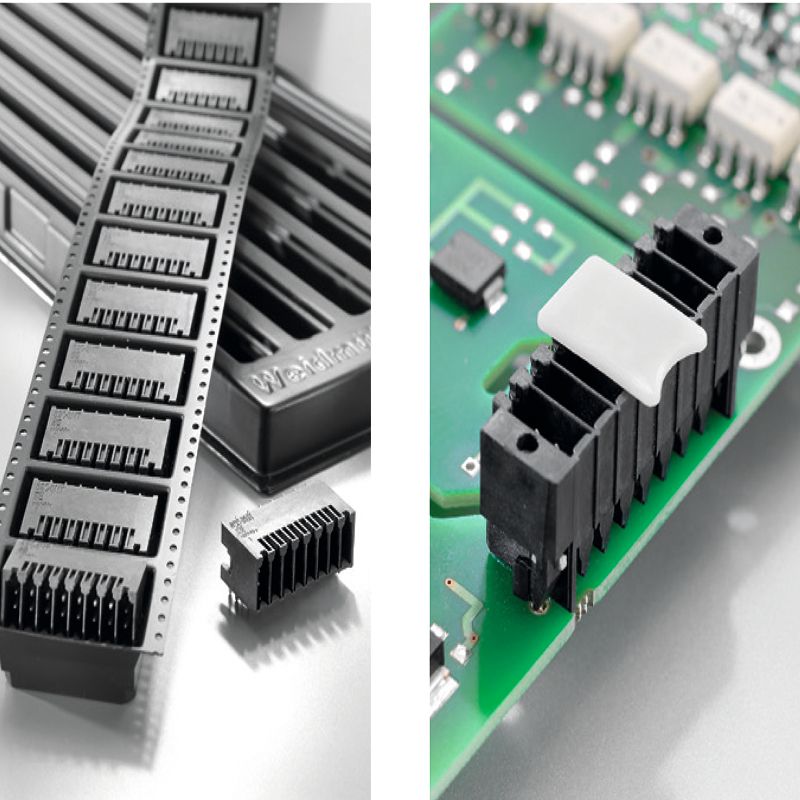

This PCB plug-in connector is engineered with a male header and a closed side, suitable for THT/THR solder connections with a 350 mm pitch Featuring 14 poles and a 180-degree outgoing elbow, it ensures efficient connectivity The solder pin has a tinned finish and measures 15 mm in length Available in an elegant black color, this product is conveniently packaged in tape for easy handling.

Features and Benefits:

    •RoHS compliant without exemption.

    •Touch-safe protection according to DIN VDE 57 106.

    •Can be coded.

    •Gold-plated contact surfaces available upon request.

    •Static dissipative ESD level packaging.

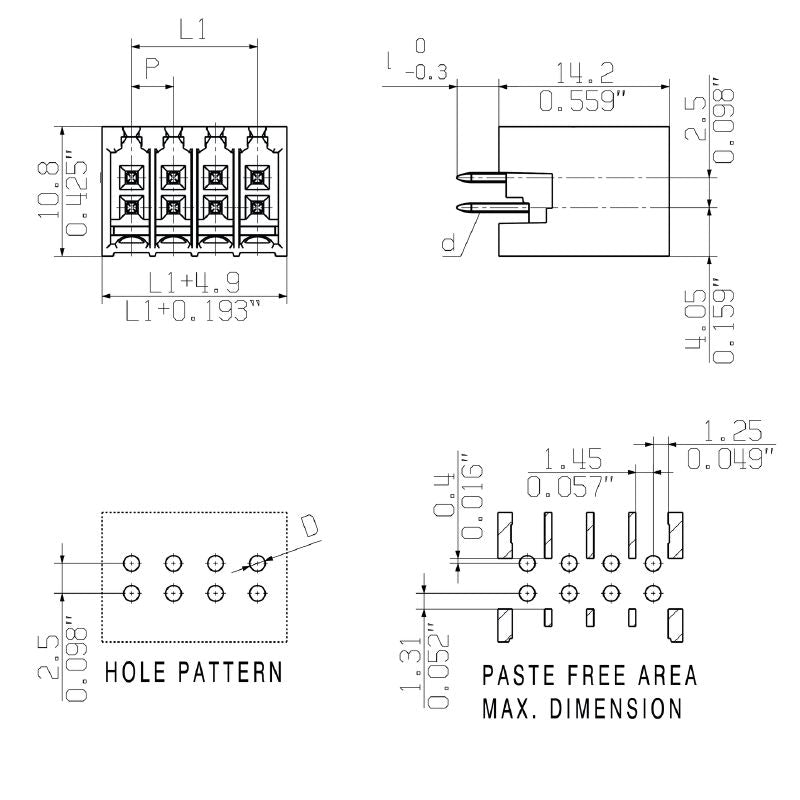

Specifications:

 Depth (mm) 10.8
 Height (mm) 15.7
 Width (mm) 25.9
 Net weight (g) 3.885
 Number of poles 14
 Solder pin length (l) 1.5 mm
 Pitch in mm (P) 3.5
 Rated current, min. number of poles (Tu=20°C) 13.4 A
 Rated voltage 200 V / 150 V / 80 V
 Rated current for CSA 9.5 A
 Operating temperature, min -50 °C
 Operating temperature, max 120 °C
 Storage temperature, min -40 °C
 Storage temperature, max 70 °C
 Material Copper alloy
 Insulating material LCP GF
 UL 94 flammability rating V-0
