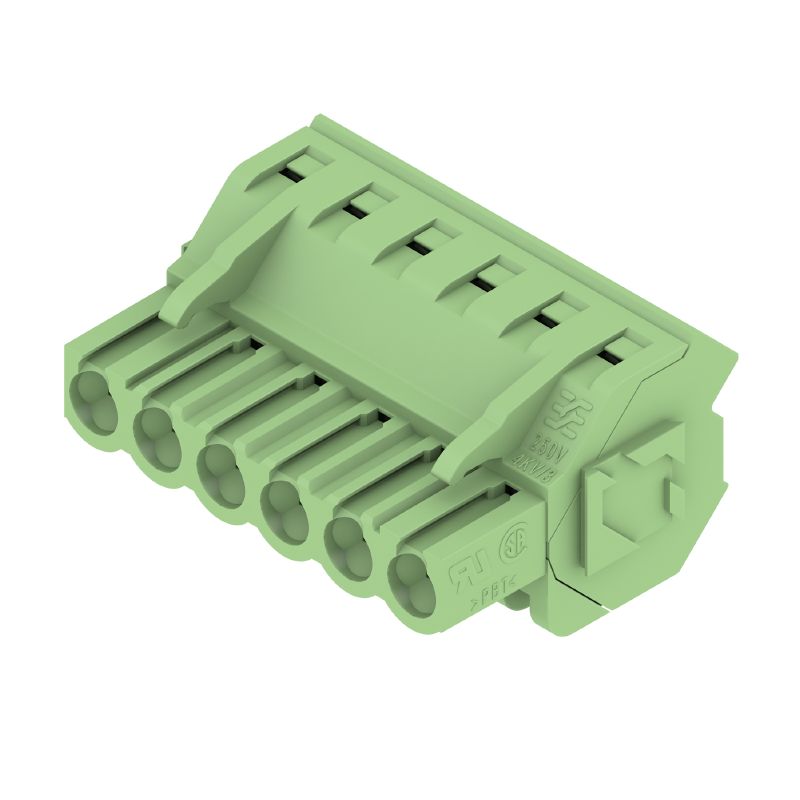

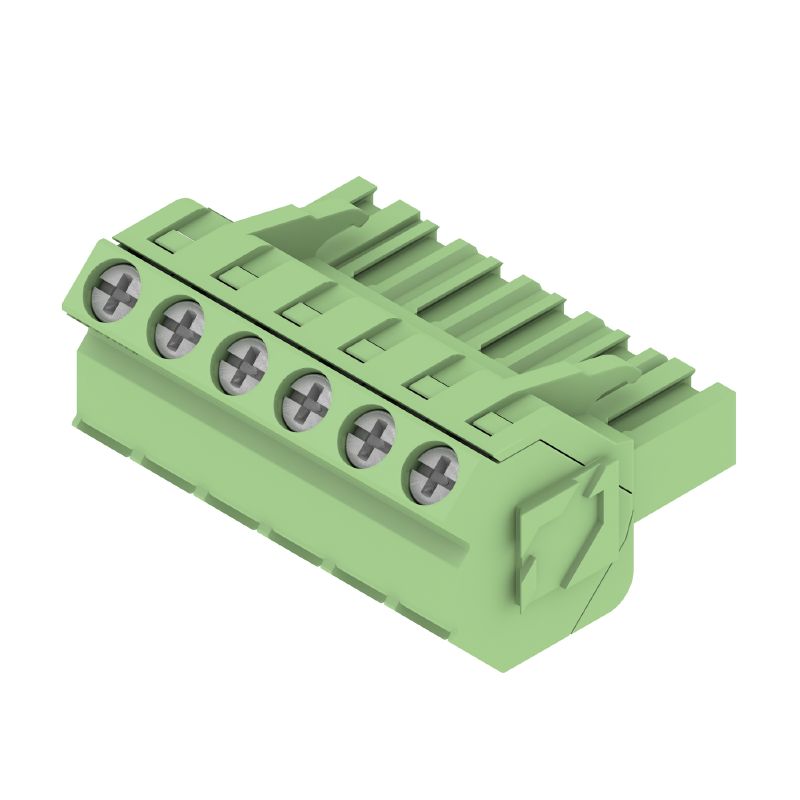

1357180000 - 5.08mm 6-Pole PCB Plug-In Connector, RoHS & UL Approved (Pack of 54)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Discover the efficiency of this female PCB plug-in connector, designed with a 508 mm pitch and accommodating 6 poles It features a reliable clamping yoke connection, allowing for a substantial clamping range of up to 4 mm² This connector meets stringent standards with RoHS compliance and carries a UL certification (E60693) Rated to manage 400 V at 175 A as per IEC standards and 300 V at 15 A under UL standards, it’s an ideal choice for a variety of electrical applications.

Features and Benefits:

•Designed for field connection.

•Clamping yoke connection method.

•Complies with safety standards including touch-safe protection.

•Can be coded to avoid misengagement.

•Made from PBT insulating material.

•Pale green color according to RAL 6021.

•Resistant to a wide temperature range from -50 °C to 100 °C.

Specifications:
