1353140000 - Durable 3-Pole Connector, 5.08mm Pitch, UL Approved (Pack of 42)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

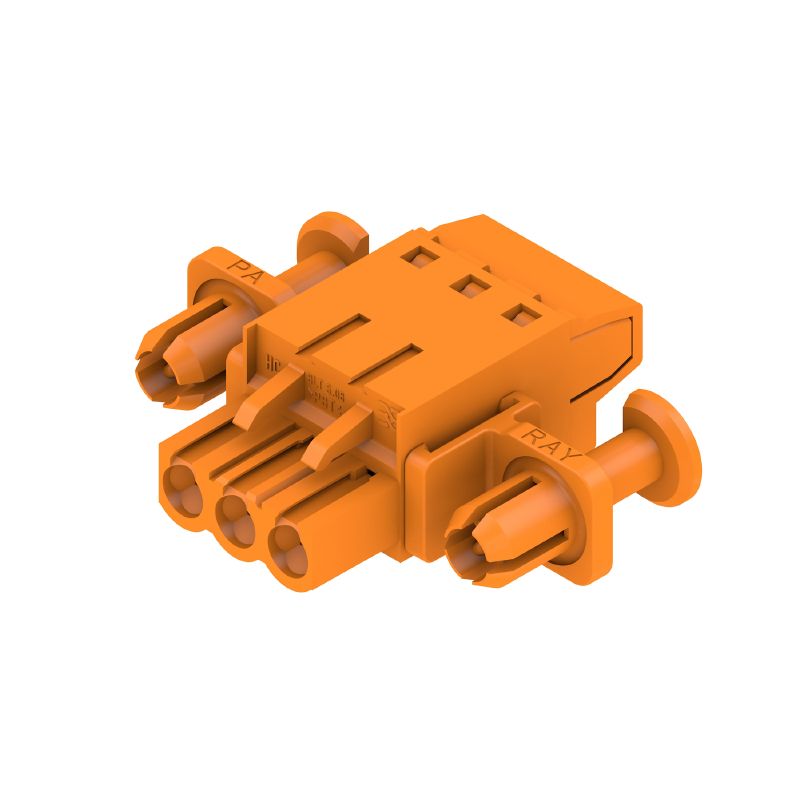

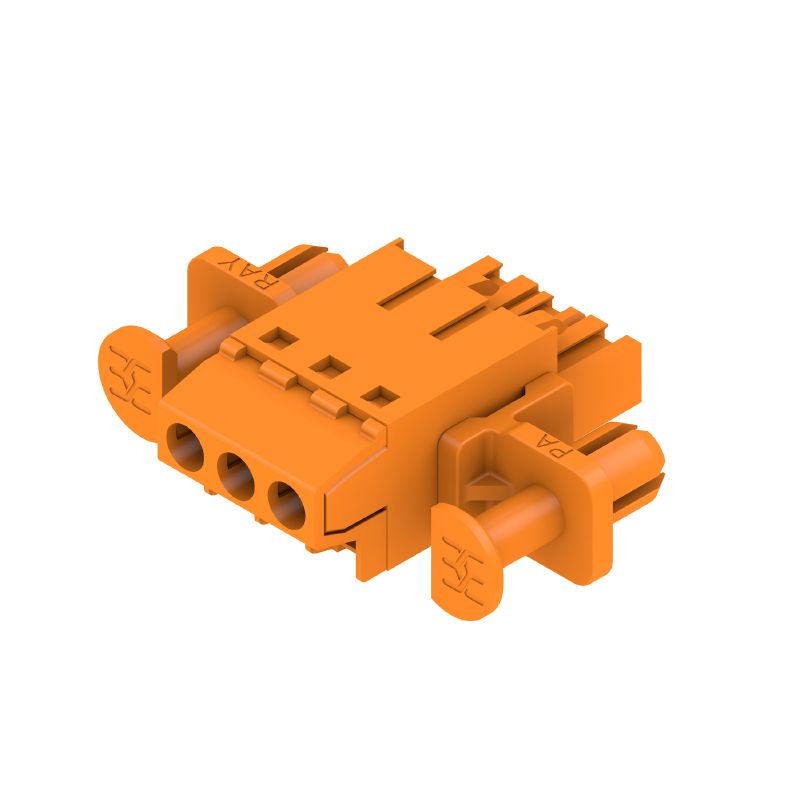

Introducing the BLT 508HC/03/180DF SN OR BX, a robust PCB plug-in female connector featuring a 508mm pitch and a three-pole configuration with a top connection setup This connector supports a clamping range of up to 25 mm², packaged conveniently for box assembly With UL approval, it handles a maximum voltage of 300 V and a current of up to 17 A Adhering to RoHS guidelines, this connector is built for long-lasting performance, providing safety and reliability across various applications.

Features and Benefits:

•Compliant with RoHS without exemptions.

•360° safe from finger touch.

•IP20 protection when plugged and IP10 when unplugged.

•Can be coded for specific connections.

•Durability tested with passed evaluations.

•Wide range of wire connection methods supported, including both solid and stranded conductors.

•Field connection applications.

•Suitable for various electronics projects requiring secure connections.

Specifications:
