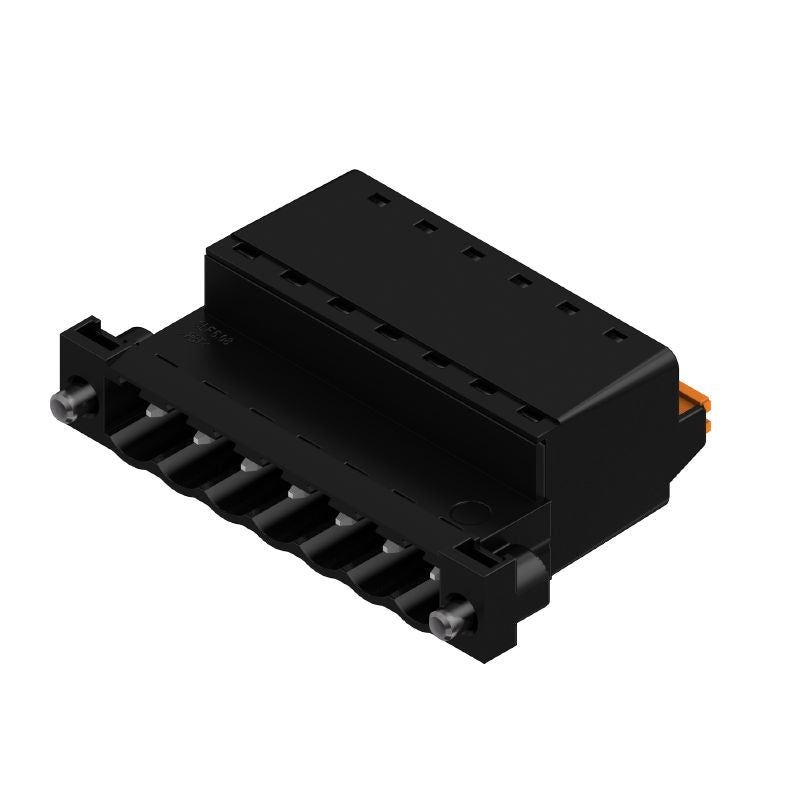

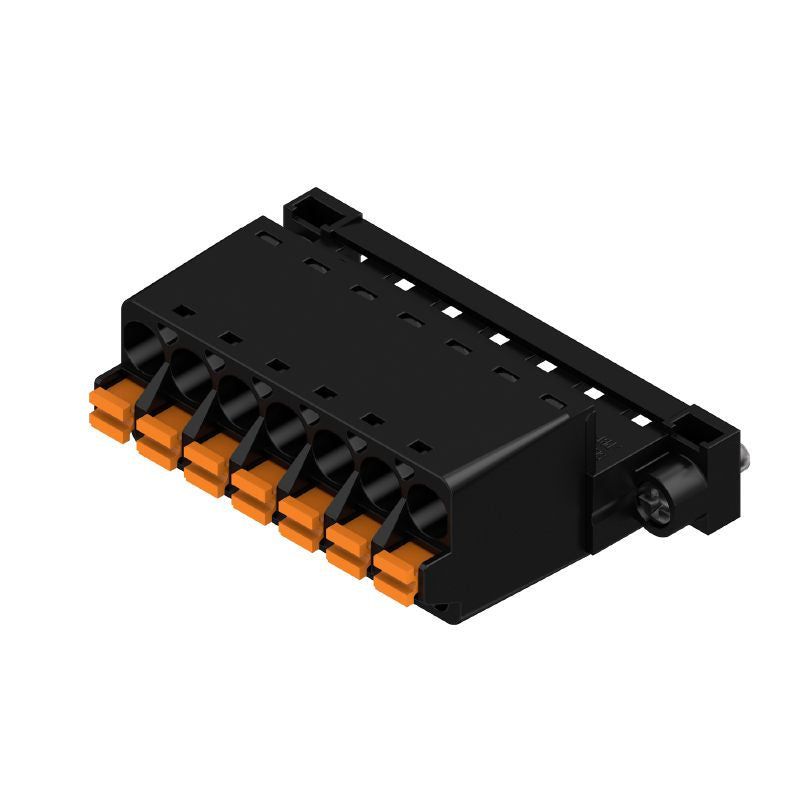

1336100000 - 5.08mm 7-Pole PCB Plug Connector with PUSH IN Design (Pack of 42)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the SLF 508/07/180FI SN BK BX, a male PCB plug-in connector engineered with a 508 mm pitch and featuring 7 poles arranged at a precise 180° angle This connector employs a PUSH IN method with an actuator, making it easy to use, and it accommodates conductor cross-sections ranging from 02 to 331 mm² Packaged securely in a box, it is certified for compliance with RoHS and UL standards, ensuring reliability and safety for your electronic projects.

Features and Benefits:

•180° conductor outlet direction.

•Touch-safe protection according to DIN VDE 0470.

•Can be coded for secure connection.

•IP20 protection degree when plugged in, IP10 when unplugged.

•PBT insulating material provides durability.

•Maximum tightening torque of 0.25 Nm for secure connections.

Specifications:
