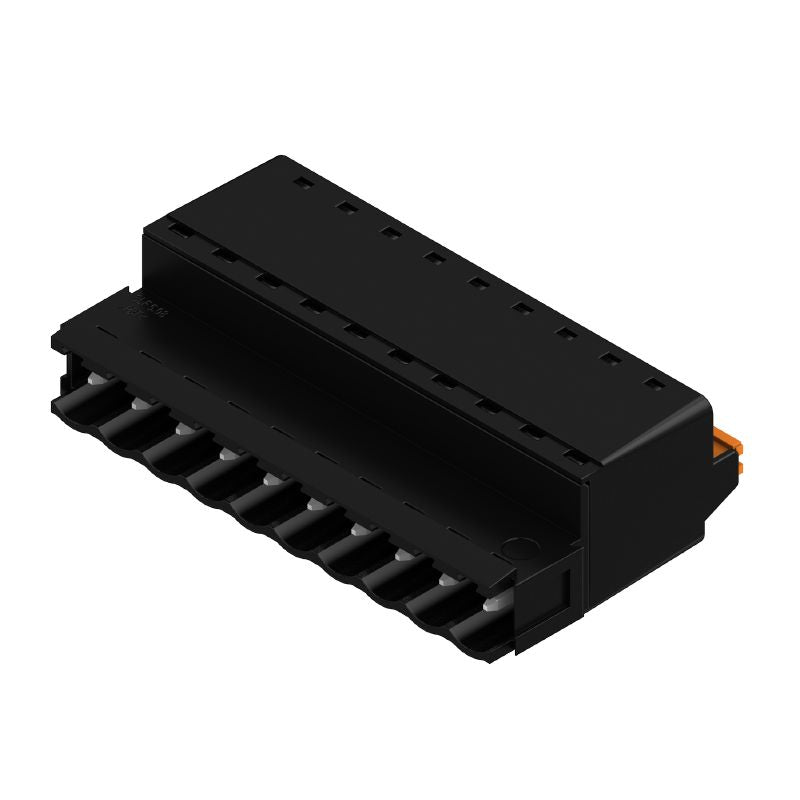

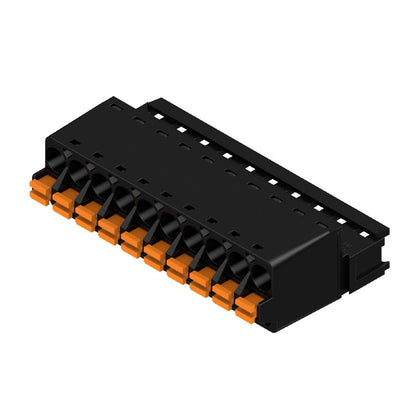

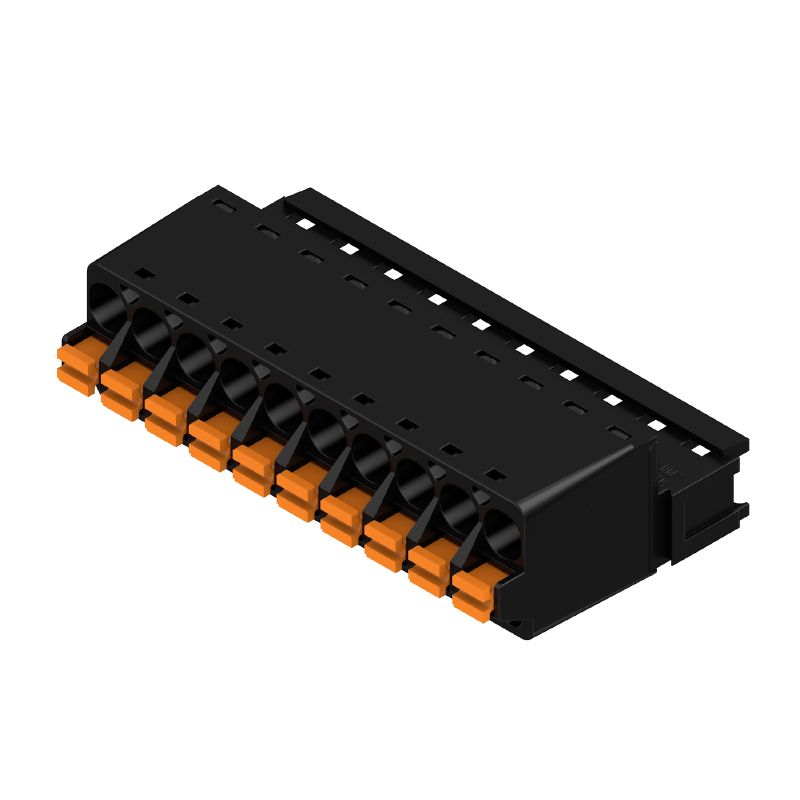

1335940000 - 5.08mm Pitch RoHS 10-Pole PCB Connector with PUSH IN Connection (Pack of 30)

1335940000 - 5.08mm Pitch RoHS 10-Pole PCB Connector with PUSH IN Connection (Pack of 30)

SKU: SKU: 1335940000   Download PDF

Select a Variant:
  • 1335940000 - 5.08mm Pitch RoHS 10-Pole PCB Connector with PUSH IN Connection (Pack of 30)
Qty:
Regular price Now $212.86   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $212.86 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Introducing a robust male plug PCB connector, engineered for versatility with a 508 mm pitch and featuring 10 poles arranged at a 180° angle This connector utilizes a PUSH IN wire connection technique, incorporating an actuator for easy use, with a maximum clamping capacity of 331 mm² It adheres to RoHS standards and carries a UL certification (number E60693), ensuring reliability and safety in your electrical applications.

Features and Benefits:

    •PUSH IN wire connection with actuator.

    •10 poles at a 180° orientation.

    •Compliant with RoHS.

    •Packaged in boxes of 30.

Specifications:

 Product family OMNIMATE Signal - series BL/SL 5.08
 Type of connection Field connection
 Pitch in mm (P) 5.08 mm
 Conductor outlet direction 180°
 Number of poles 10
 Rated voltage {'IEC': '400 V / 25.9 A / 0.2 - 2.5 mm²', 'UL': '300 V / 14 A / AWG 26 - AWG 12'}
 Net weight 17.923 g
 Operating temperature range -50 °C to 100 °C
 Protection degree IP20
 Material {'Insulating material': 'PBT', 'Contact material': 'Copper alloy'}
 Rated current 25.9 A
