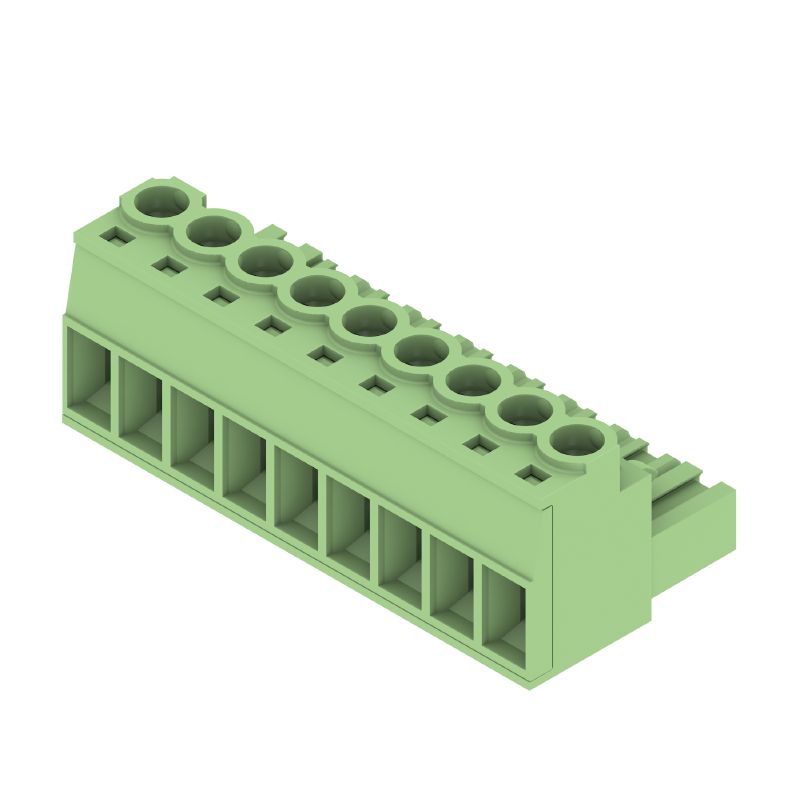

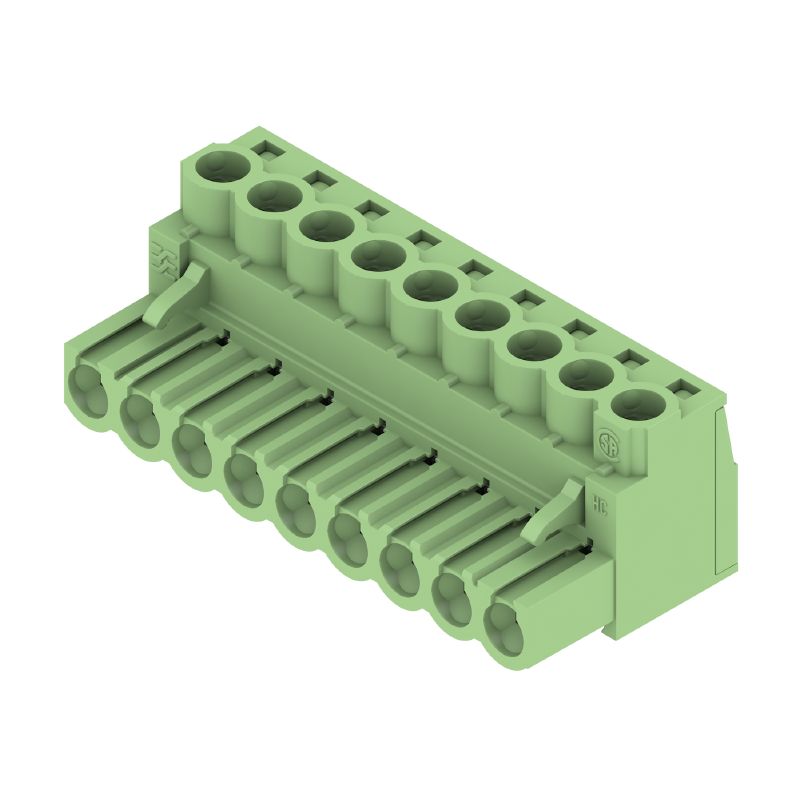

1306400000 - 5mm Pitch PCB Plug-In Connector, 23A, Compact Size (Pack of 36)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing a versatile PCB plug-in connector tailored for efficient field connections This connector features a female interface with a 5 mm pin pitch and is capable of accommodating wire sizes up to 4 mm² It offers reliable performance with an IEC voltage rating of 400 V and a current capacity of 23 A, along with UL certifications of 300 V and 20 A Its compact dimensions of 45 mm in width, 201 mm in depth, and 16 mm in height make it a practical choice for various applications.

Each connector is neatly packaged in individual boxes for convenience.

Features and Benefits:

•Compliant with RoHS without exemptions.

•Touch-safe protection according to DIN VDE standards.

•Can be coded for secure connections.

•Compatible with a range of wire types and sizes.

Specifications:
