Description:

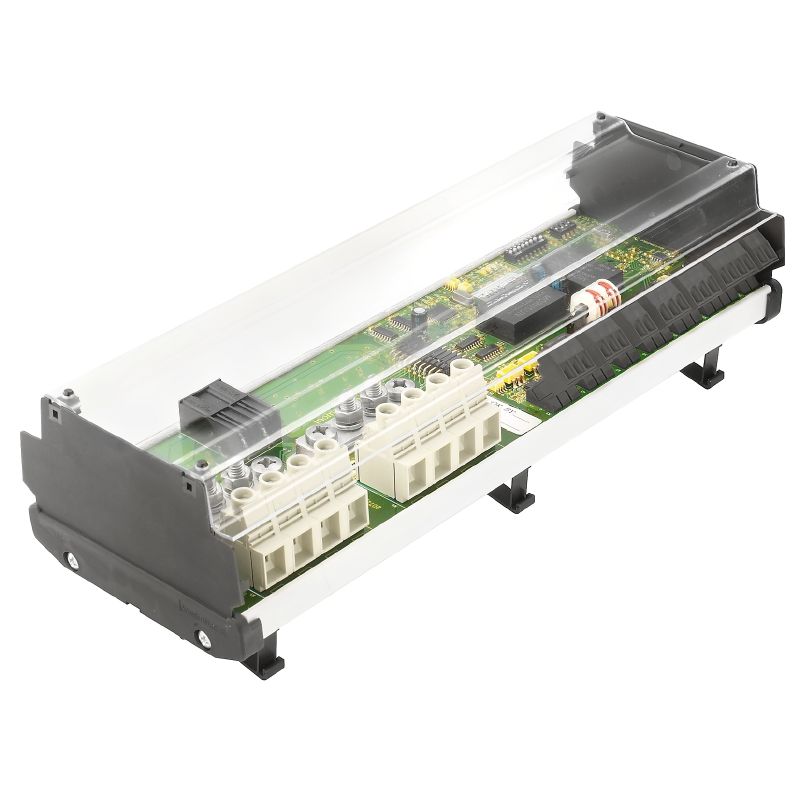

Introducing the TRANSCLINIC 8I+, a sophisticated solution for photovoltaics and current monitoring Capable of managing up to 8 channels, this device operates efficiently at voltages of up to 1000 V It also meets ROHS compliance standards, guaranteeing its safety by limiting the use of hazardous materials.
Features and Benefits:
•MODBUS RS485 RTU communication.
•Low-current measurement resistors (shunt).
•Supports a measurement range of 3…30 A DC.
•Maximum current per string is 30 A DC, within a temperature range of -25 to +70 °C.
•Digital inputs capable of handling voltages from 0.5 V low to 15 ... 24 V high.
•The device operates with power consumption less than 1500 mW.

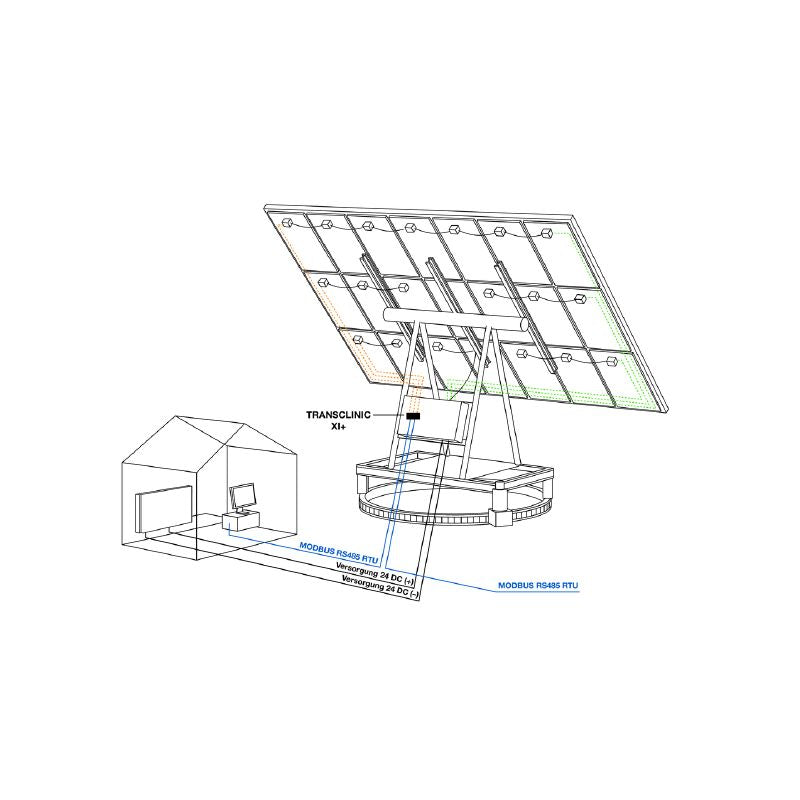

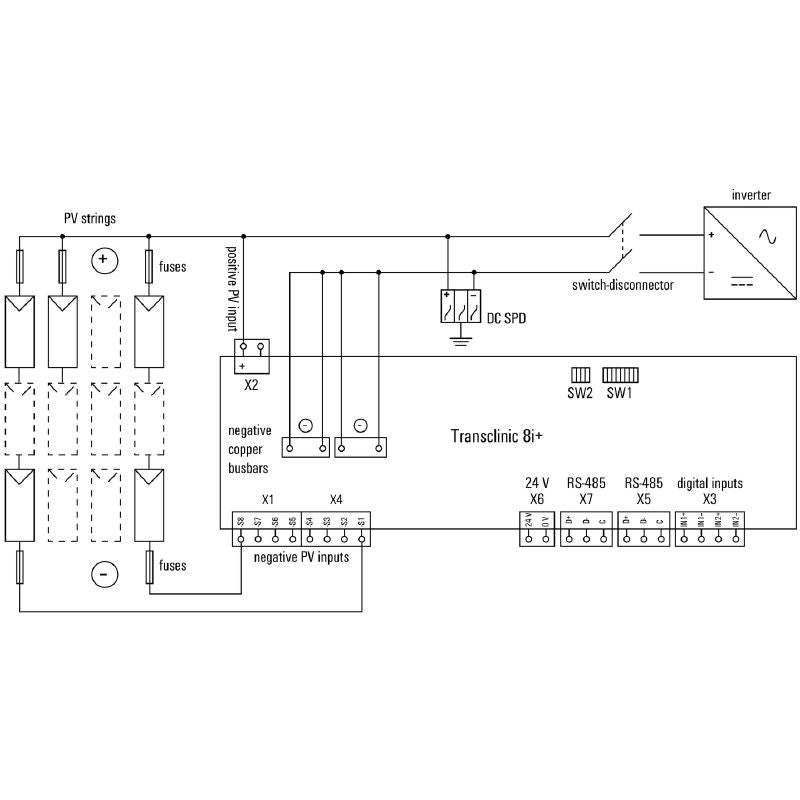

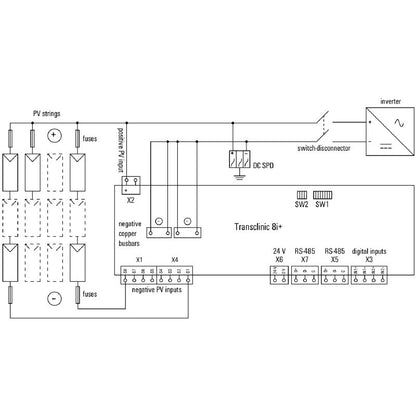

•Photovoltaics current monitoring.
Specifications:
| Dimensions | Length: 295 mm, Width: 109.5 mm, Height: 92.2 mm |
| Continuous operating temperature (min) | -20 °C |
| Continuous operating temperature (max) | 70 °C |
| Altitude | ≤ 3000 m |
| Rated voltage | 1000 V DC |
| Supply voltage | 19 - 36 V DC |
| String-current measurement error | ± 360 mA from 3 A DC to 30 A DC |
| String-voltage measurement error | ± 10 V from 100 V DC to 1000 V DC |
| Number of digital inputs | 2 |
| Maximum number of strings | 8 |
| RoHS Compliance Status | Compliant with exemption |
| RoHS Exemption | 6c, 7a, 7cI |
| REACH SVHC | Lead 7439-92-1 |
