2502520000 - 16-Channel Photovoltaic Monitor, 1500V, RoHS Compliant
2502520000 - 16-Channel Photovoltaic Monitor, 1500V, RoHS Compliant
SKU: SKU: 2502520000 Download PDF
- 2502520000 - 16-Channel Photovoltaic Monitor, 1500V, RoHS Compliant
- 2502520000 - 16-Channel Photovoltaic Monitor, 1500V, RoHS Compliant
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:

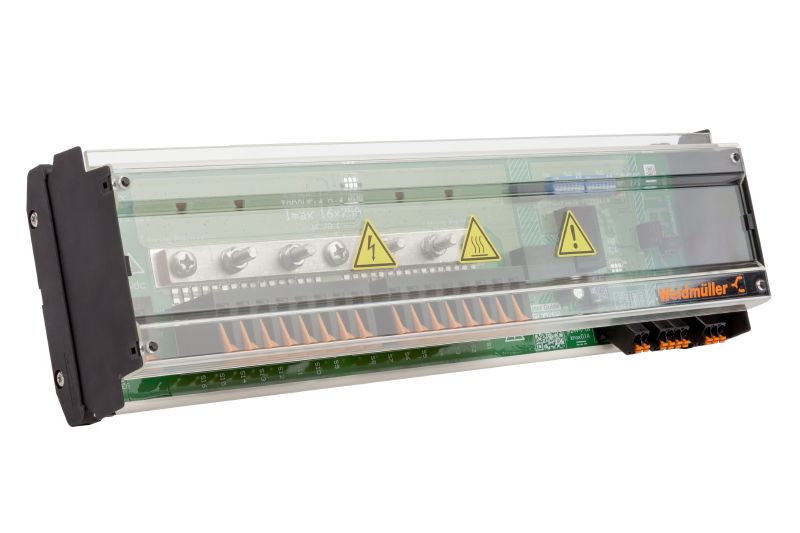

Introducing the TRANSCLINIC 16I+ 1K5 H, an advanced device for monitoring photovoltaics and current This versatile unit supports 16 channels and is built to endure voltages up to 1500 V Meeting RoHS compliance standards, it offers reliable performance across various environmental conditions, making it an ideal choice for your energy management needs.
Features and Benefits:
•Operating temperature range of -25 °C to 70 °C.
•Supports MODBUS RS485 RTU communication.
•Maximum string current capacity is 25 A DC.
•Can measure current with a shunt resistance of 1 mOhm.
•Allows digital input through 2 channels.
•Compliance with multiple IEC and EN standards.
•Photovoltaics.
•Current monitoring.
Specifications:
| Depth | 368.9 mm |
| Height | 92.92 mm |
| Width | 109.5 mm |
| Net weight | 940 g |
| Maximum number of strings | 16 |
| Rated voltage | 1500 V DC |
| Pollution severity | 2 |
| String-current measurement error | ± 300 mA from 3 A DC to 15 A DC |
| String-voltage measurement error | ± 18 V from 150 V DC to 1,500 V |
| Supply current | < 70 mA DC, 200 mA DC max. |
| Supply voltage | 19.2 – 28.8 V DC |
| Altitude | ≤ 2000 m |
