Description:

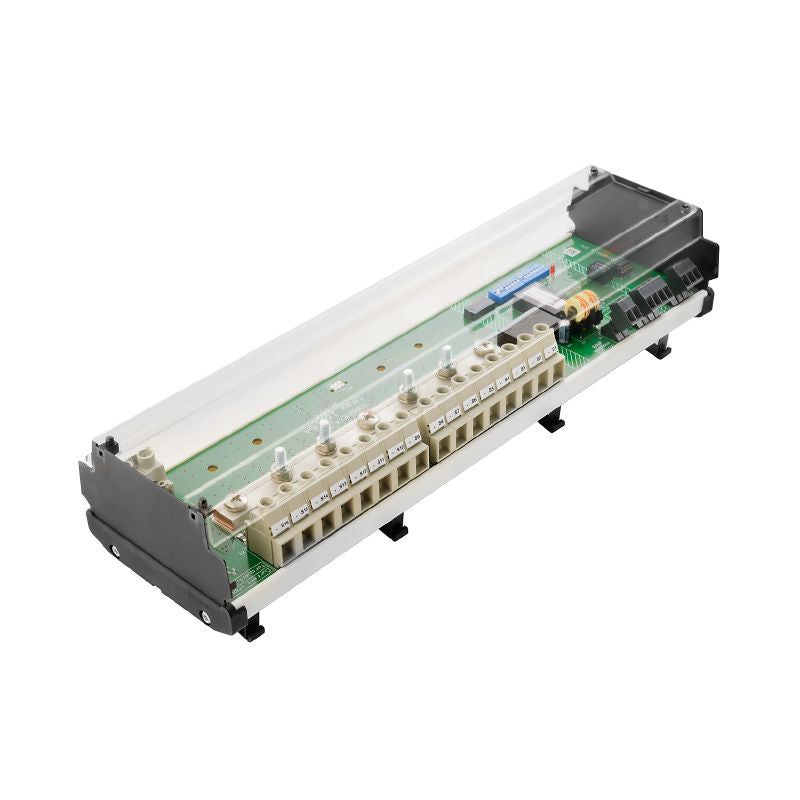

Introducing the TRANSCLINIC 16I+ 1K5 L device, an essential tool for photovoltaic systems and current monitoring This model boasts a robust 16-channel functionality and operates at a voltage of 1500 V Built to meet RoHS standards, it is engineered to endure continuous temperatures ranging from -25°C to 70°C, making it suitable for various environments and applications.
Features and Benefits:
•16-channel monitoring.
•Compliant with RoHS without exemptions.
•MODBUS RS485 RTU communication.
•Maximum current rating of up to 25 A DC depending on the temperature range.
•Compatible with IEC/EN standards.
•Photovoltaics.
•Current monitoring.
Specifications:
| Height | 92.2 mm |
| Width | 109.5 mm |
| Length | 368.9 mm |
| Net weight | 939.34 g |
| Continuous operating temp., min. | -25°C |
| Continuous operating temp., max. | 70°C |
| Humidity at operating temperature | 5 to 95 % (non-condensing) |
| Altitude | ≤ 2000 m |
| Shunt resistance | 1 mOhm |
| Maximum current per string | 15 A DC (-25…+70 °C) / 25 A DC (-25…+60 °C) |
| Maximum number of strings | 16 |
| Number of digital inputs | 2 |
| Pollution severity | 2 |
| Rated voltage | 1500 V DC |
| Supply current | < 70 mA DC, 200 mA DC max. |
| Supply voltage | 19.2 – 28.8 V DC |
| String-current measurement error | ± 300 mA from 3 A DC to 15 A DC |
| String-voltage measurement error | ± 18 V from 150 V DC to 1,500 V |
