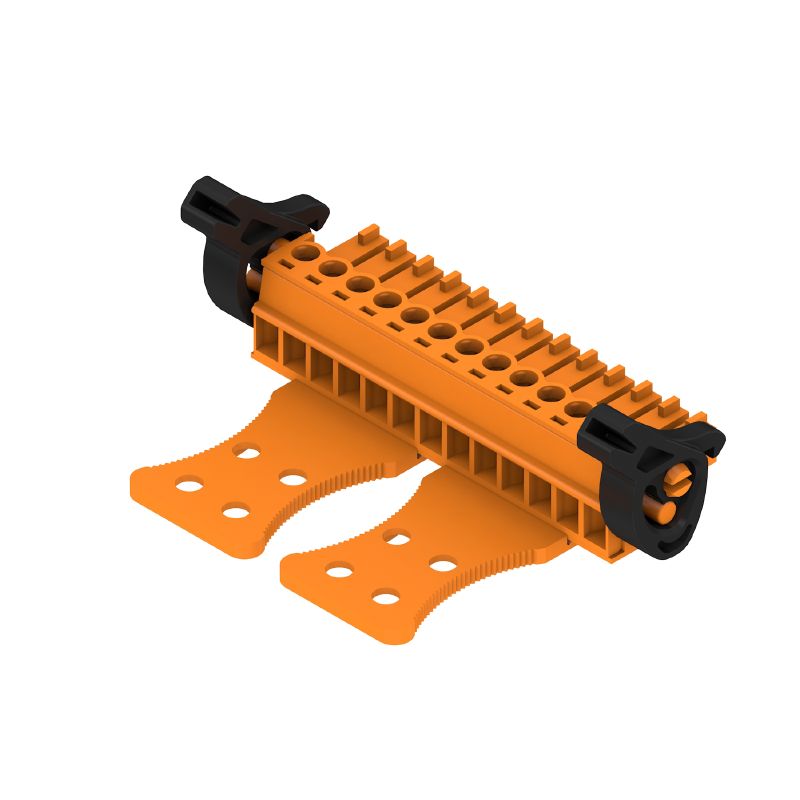

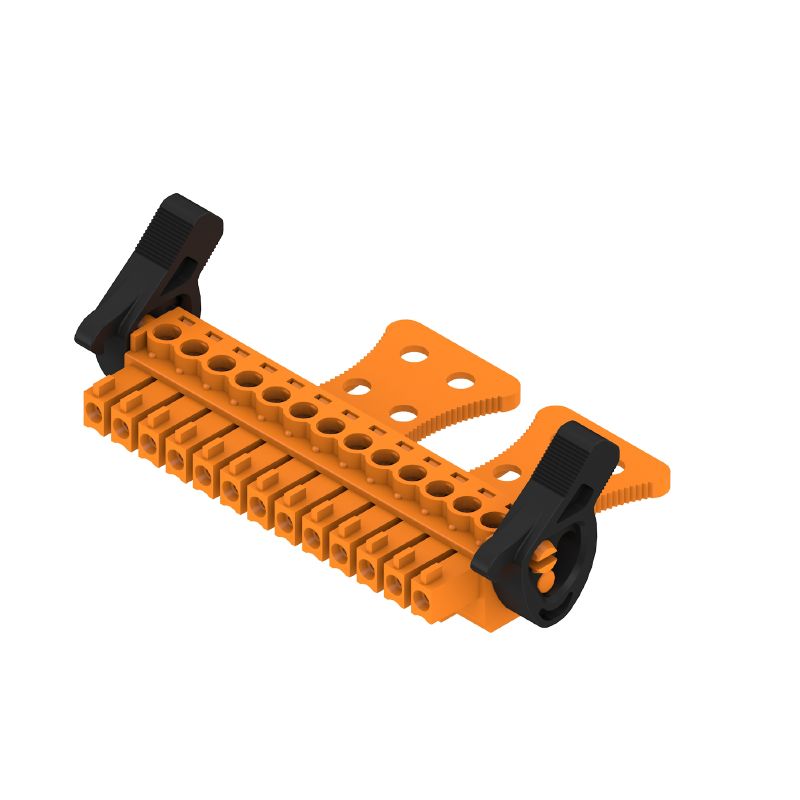

1236880000 - 13-Pole 180° PCB Connector for 1.5 mm² Wires (Pack of 50)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing a versatile female PCB plug-in connector with 13 poles arranged at a 180° angle, designed for reliable clamping with a yoke connection This connector supports a maximum clamping range of 15 mm² and is conveniently packaged in a durable box It boasts IEC ratings of 320 V and 175 A, suitable for wire sizes from 02 to 15 mm², while adhering to UL standards of 300 V and 10 A for AWG sizes between 28 and 16.

Perfectly crafted for various electrical applications, this connector ensures a robust and efficient connection.

Features and Benefits:

•Compliant with RoHS specifications.

•Touch-safe protection according to DIN VDE standards.

•Can be coded.

•Contains elements for easy wire connection.

•Suitable for various conductor types and cross-sections.

Specifications:
