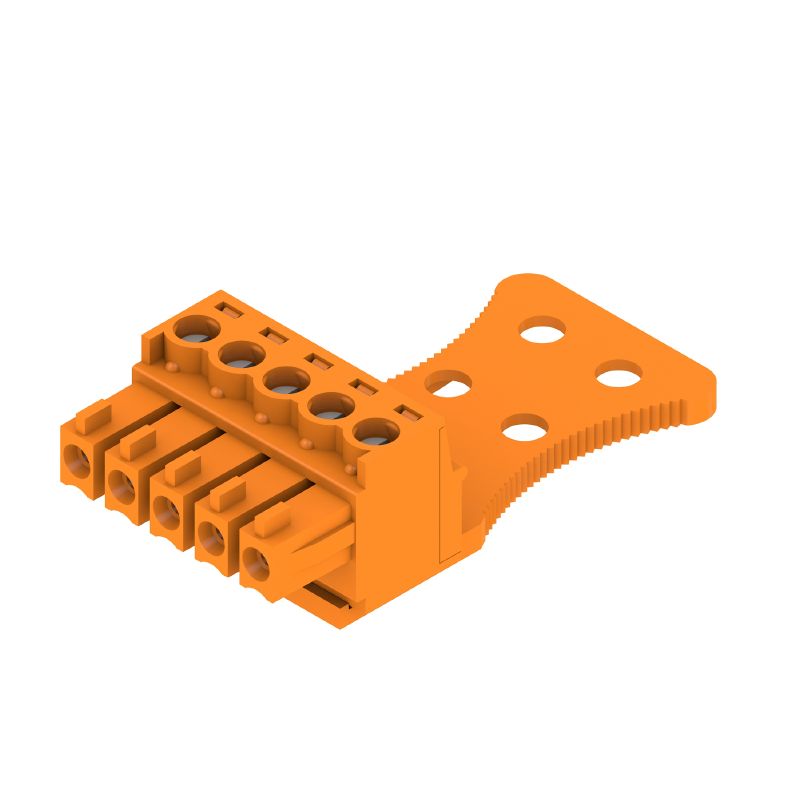

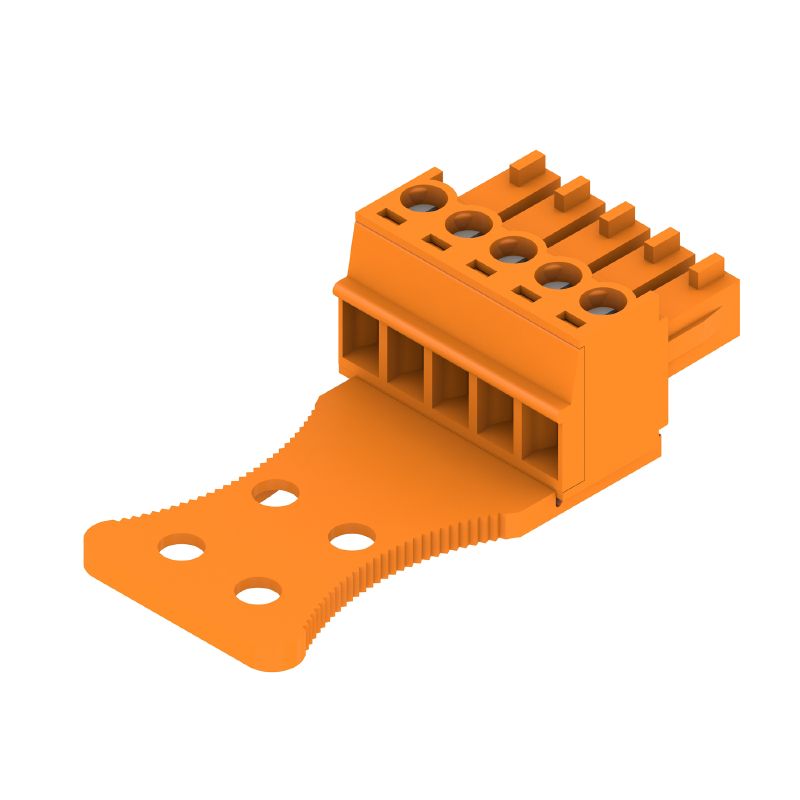

1236270000 - 5-Pole 180° Female Plug, 3.81mm Pitch, RoHS Compliant (Pack of 50)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing this versatile female plug, expertly designed with a 381 mm pitch and equipped with 5 poles It features a 180° connection angle and utilizes a reliable clamping yoke connection, accommodating wire sizes up to 15 mm² Packaged in a convenient box, this product adheres to RoHS standards and includes various UL certifications Specifically engineered for field connections, it supports a broad range of wire gauges from AWG 28 to AWG 16, making it an adaptable choice for your electrical needs.

Features and Benefits:

•Compliant with RoHS standards.

•Includes UL File Number E60693.

•Rated for 320 V / 17.5 A / up to 1.5 mm².

•Rated for 300 V / 10 A for AWG 28 to AWG 16.

•Designed for field connection applications.

•Can be coded for specific functions.

•Safe from finger touch according to DIN VDE standards.

Specifications:
