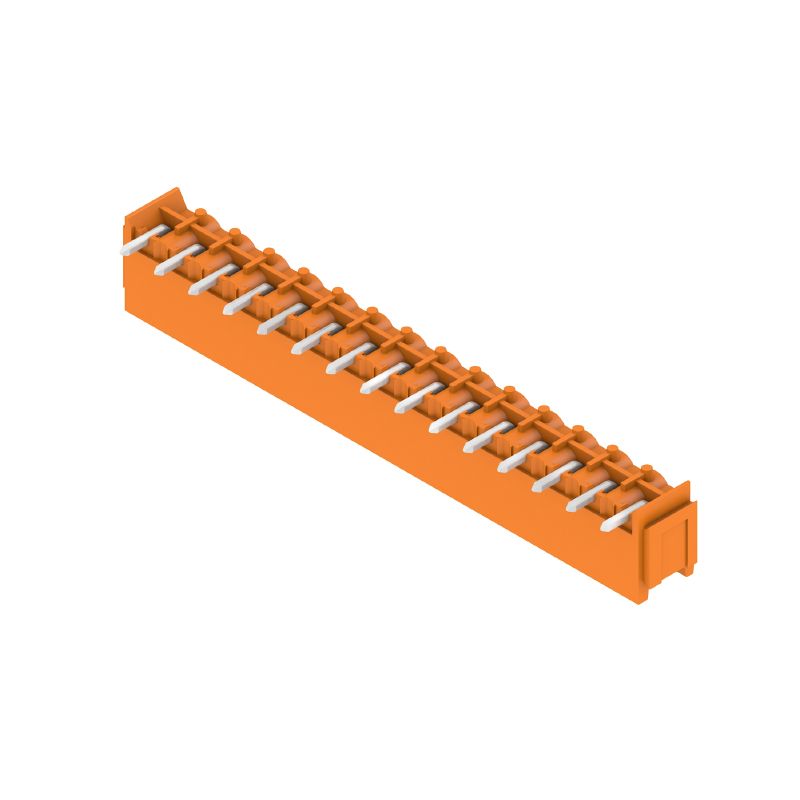

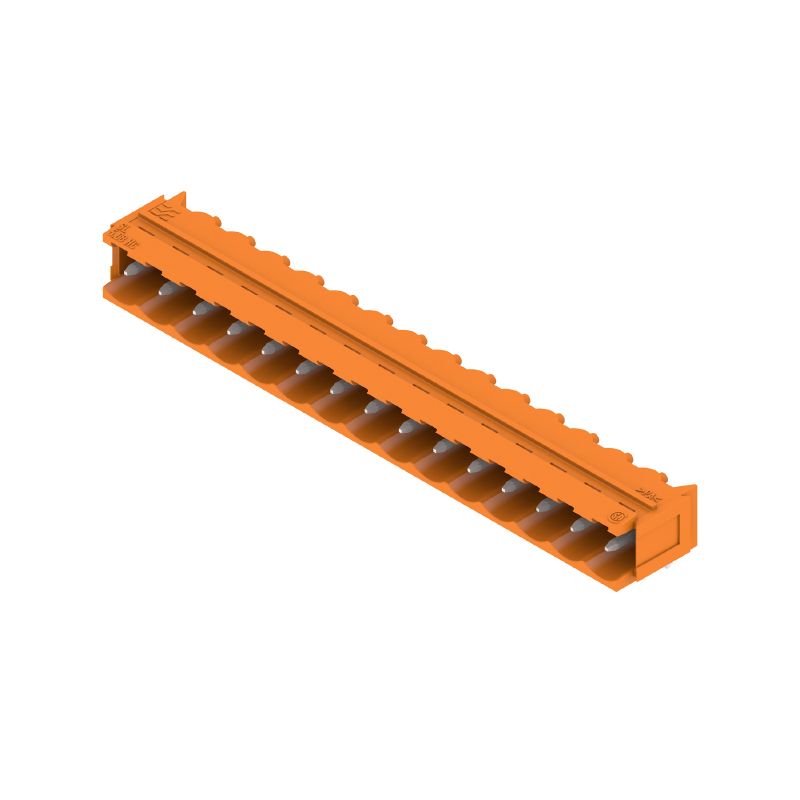

1154910000 - 5.08mm Male PCB Connector, 15 Pole, 90° Angle (Pack of 50)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Enhance your connectivity options with this PCB plug-in connector, which features male headers and dovetail mechanisms for secure block attachment Designed for reliable performance, it includes a through-hole solder connection with a pitch of 508 mm, accommodating 15 poles at a 90° angle Each solder pin measures 32 mm in length and is treated with a tinned orange finish, conveniently packaged in a protective box for easy storage and transport.

Features and Benefits:

•Rated with IEC voltage of 400 V at 24 A and UL voltage of 300 V at 18.5 A.

•Compliant with RoHS and REACH standards.

•Touch-safe protection as per DIN VDE 57 106 and DIN VDE 0470.

•Can be coded for unique applications.

•Designed for easy mounting onto PCB.

Specifications:
