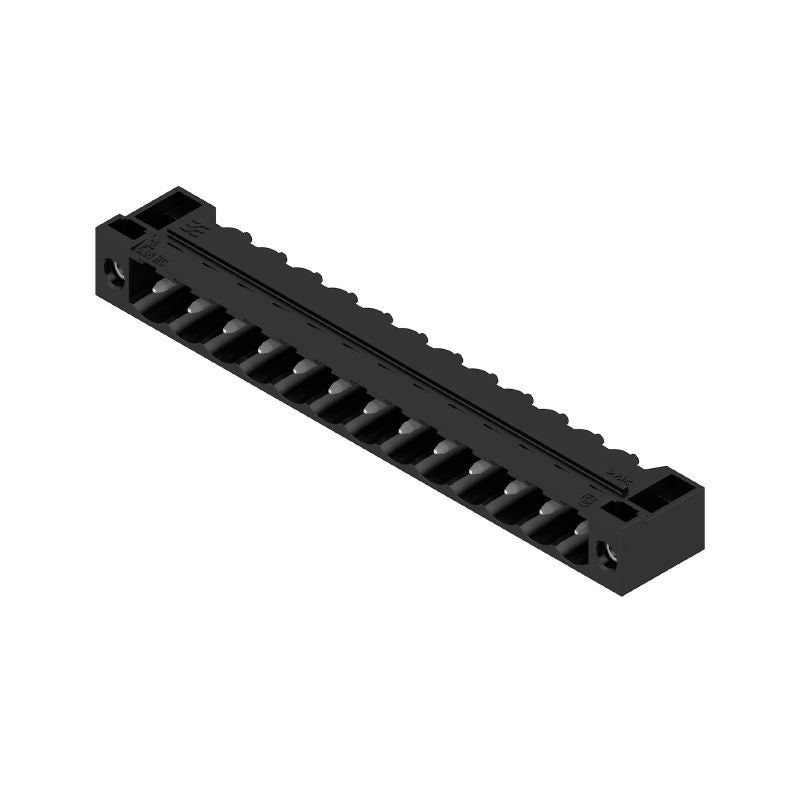

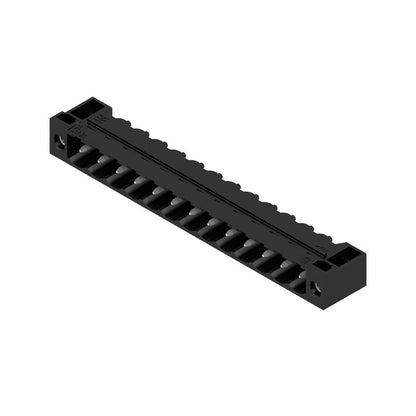

1150210000 - 5.08mm PCB Connector, 13 Poles, THT Solder, Black (Pack of 24)

1150210000 - 5.08mm PCB Connector, 13 Poles, THT Solder, Black (Pack of 24)

SKU: SKU: 1150210000   Download PDF

Select a Variant:
  • 1150210000 - 5.08mm PCB Connector, 13 Poles, THT Solder, Black (Pack of 24)
Qty:
Regular price Now $83.80   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $83.80 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Introducing the SL 508HC/13/90F 32SN BK BX, a reliable male header PCB plug-in connector equipped with a flange and designed for THT solder connections This connector boasts a 508 mm pitch and features 13 terminals, each with a solder pin length of 32 mm Packaged in elegant black, it meets various compliance standards, including RoHS, ensuring quality and safety in your applications.

Features and Benefits:

    •Compliant with RoHS without exemption.

    •Touch-safe protection according to DIN standards.

    •Can be coded for easy alignment.

    •Designed for high durability with a maximum of 25 plugging cycles.

Specifications:

 IEC Voltage Rating 400 V / 24 A
 UL Voltage Rating 300 V / 18.5 A
 Dimensions {'Depth': '12 mm', 'Height': '11.7 mm', 'Width': '76.2 mm'}
 Material {'Insulating Material': 'PA GF', 'Contact Material': 'Cu-alloy'}
 Temperature Range {'Storage Temperature Min': '-40 °C', 'Storage Temperature Max': '70 °C', 'Operating Temperature Min': '-50 °C', 'Operating Temperature Max': '100 °C'}
 Protection Degree IP20
 Volume Resistance ≤5 mΩ
