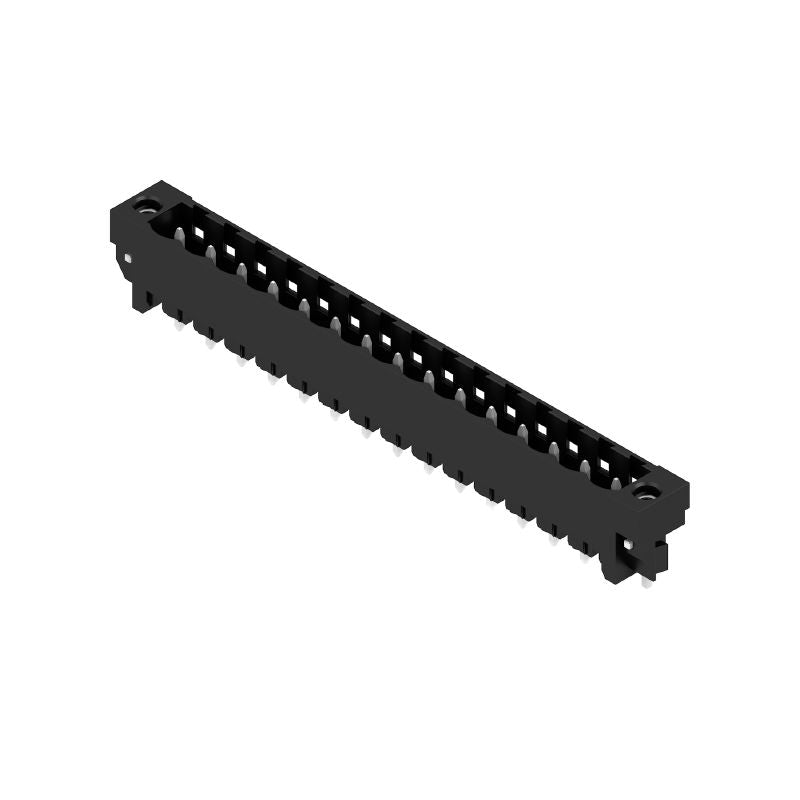

1149650000 - 5.08mm Male PCB Connector, 15-Pole, 180° Angle (Pack of 18)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing a durable 508 mm PCB plug-in connector, crafted as a male header with a solder flange ideal for through-hole (THT) solder connections This connector is structured with 15 poles oriented at a 180° angle and features solder pins that measure 32 mm in length, treated with a protective tin finish It’s available in a sleek black packaging, making it an excellent choice for your electronic assembly needs.

Features and Benefits:

•IEC rated for 400 V / 24 A.

•UL rated for 300 V / 18.5 A.

•Touch-safe protection compliant with DIN VDE 57 106 and DIN VDE 0470.

•Can be coded for secure connections.

•Designed with a volume resistance of ≤5 mΩ.

•Compliance with RoHS and REACH.

•Gold-plated contact surfaces available upon request.

•PCB connections.

Specifications:
