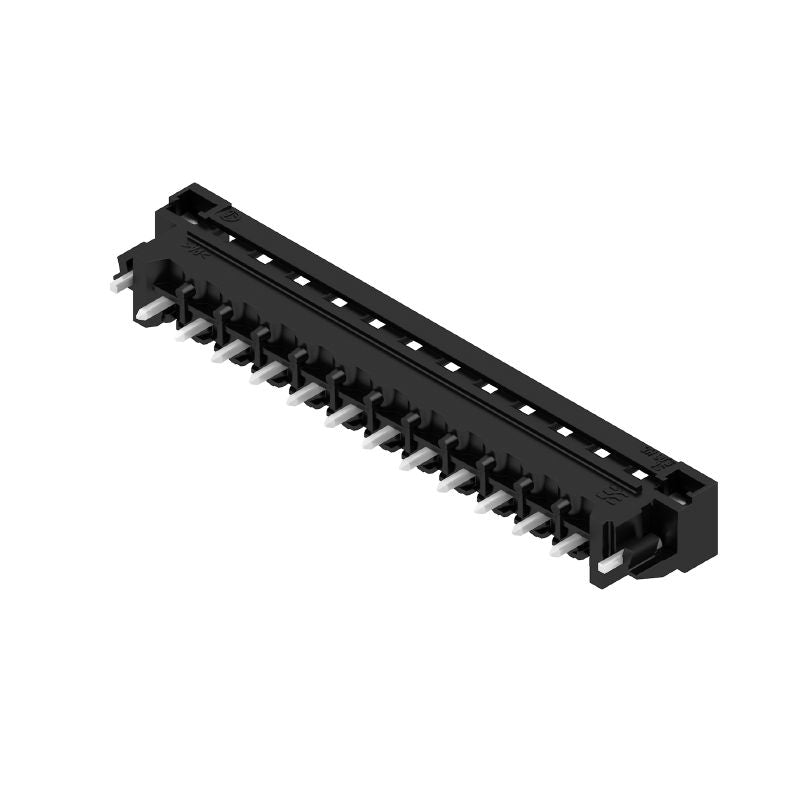

1149550000 - 12-Pole 5.08mm PCB Connector with Solder Flange, Black (Pack of 24)

1149550000 - 12-Pole 5.08mm PCB Connector with Solder Flange, Black (Pack of 24)

SKU: SKU: 1149550000   Download PDF

Select a Variant:
  • 1149550000 - 12-Pole 5.08mm PCB Connector with Solder Flange, Black (Pack of 24)
Qty:
Regular price Now $83.09   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $83.09 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Introducing a durable male header PCB plug-in connector, designed for easy integration with a solder flange and through-hole technology (THT) soldering With a pitch of 508 mm, this connector supports 12 poles and features a 180° outgoing elbow for versatile applications The solder pin measures 32 mm in length, and its sleek black color adds a touch of sophistication Each connector is conveniently packaged in a protective box for easy storage and transport.

Features and Benefits:

    •Compliant with RoHS standards.

    •Touch-safe protection according to DIN VDE regulations.

    •Can withstand a maximum pulling force of 7.5 N per pole.

    •Can be coded for secure connections.

    •Rated for up to 25 plugging cycles.

    •Used for board connections in various electronic applications.

Specifications:

 Rated Voltage (IEC) 400 V / 24 A
 Rated Voltage (UL) 300 V / 18.5 A
 Pitch 5.08 mm
 Number of poles 12
 Solder Pin Length 3.2 mm
 Net Weight 4.494 g
 Operating Temperature -50 °C to 100 °C
 Storage Temperature -40 °C to 70 °C
 Insulating Material PA GF
 Color black
 Volume Resistance ≤5 mΩ
 Protection Degree IP20
 Flammability Rating UL 94 V-0
